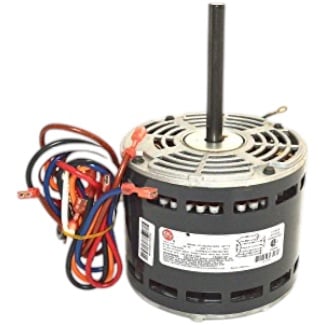

Carrier 1013341 Blower Motor 1/2 hp Counter Clockwise

Product Description

The CARRIER 1013341 Blower Motor is a 1/2 HP, 115V motor designed for HVAC applications. Operating at 1050 RPM with a counter-clockwise rotation, this 1-phase motor features an open enclosure and NEMA 48Y frame. It is suitable for various systems requiring efficient air movement, providing reliable performance for heating and cooling units.

• 1/2 hp, 115 V, 8 A, 1-Phase operation
• 1050 RPM with 4-speed functionality and CCW rotation
• Open enclosure with NEMA 48Y frame and Class B insulation

Product Highlights

This blower motor offers 1/2 hp power, 115V operation, and 1050 RPM for effective air circulation in HVAC systems.

Product Information

Standard Information

• Brand: CARRIER
• Manufacturer Part Number: 1013341

Technical Specifications

• Manufacturer Part Number: 1013341
• Manufacturer: Carrier Global Corporation
• Horsepower: 1/2 HP
• Voltage: 115V
• RPM: 1050
• Rotation: CCW
• Amperage: 8 A
• Phase: 1-Phase
• Speed: 4
• Enclosure Type: Open
• Frame Type: NEMA 48Y
• Shaft Dimensions: 1/2 x 4 in
• Insulation Class: B
