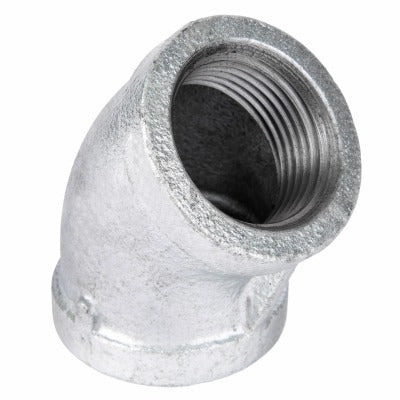

B K/mueller Inds 510-206HN Galvanized 45 Degree Elbow

Product Description

The B K/Mueller Inds 510-206HN is a 1-1/4 inch galvanized steel 45 degree equal elbow designed for directional changes in threaded pipe systems. This fitting redirects flow at a 45 degree angle while maintaining consistent inside diameter throughout the run. Galvanized steel construction provides corrosion resistance suitable for water supply, gas distribution, and general mechanical piping applications. Licensed plumbers and pipefitters install this fitting as part of new construction or retrofit piping assemblies where a shallow-angle turn is required.

This elbow is sized for 1-1/4 inch nominal pipe and is sold in packages of 5 units per order. It is well suited for residential and light commercial plumbing systems, HVAC condensate and water piping, and industrial mechanical systems requiring a standard 45 degree change in direction. The galvanized finish makes it appropriate for exposed or semi-exposed installations where corrosion resistance is a priority.

Key Features

• 45 degree angle provides a gradual directional change, reducing turbulence compared to a 90 degree elbow
• Galvanized steel construction resists corrosion in wet and humid environments
• Equal elbow design maintains consistent 1-1/4 inch nominal pipe size on both ends
• Threaded connections compatible with standard NPT pipe fittings
• Sold in a package quantity of 5 per unit of measure

Compatibility

Designed as an OEM-style replacement and standard fitting for 1-1/4 inch nominal threaded galvanized steel pipe systems used in residential and commercial plumbing and mechanical applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and depressurize the line before beginning work. Apply appropriate thread sealant or PTFE tape to all threaded connections before assembly. Do not overtighten threaded fittings, as this may crack or distort the fitting.
