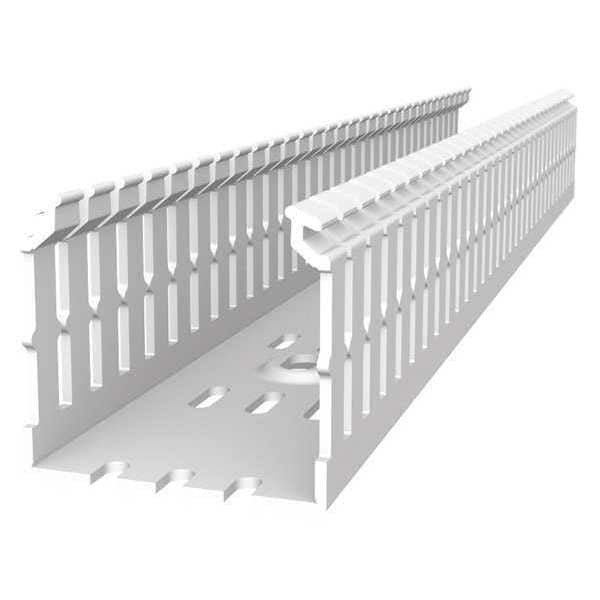

Abb tyd2x2npw6 Narrow Slot Wiring Duct 6 Ft White Pvc

Product Description

The ABB INSTALLATION PRODUCTS tyd2x2npw6 is a narrow slot PVC wiring duct designed to route and organize electrical conductors in panel and enclosure applications. Measuring 72 inches in length with a nominal 2 inch width and 2 inch height, this duct provides structured cable management in control cabinets, electrical enclosures, and industrial panel builds. The narrow slot opening of 0.2 inches helps retain wires while still allowing easy routing access. Mounting is accomplished via standard screw mount installation. The white PVC construction meets UL 94V-0 flame rating requirements and carries CE, CSA, and RU certifications, making it suitable for a wide range of commercial and industrial electrical installations.

This wiring duct is used in residential and commercial electrical panel construction, industrial control panels, and machine wiring applications where organized conductor routing is required. The narrow slot wall design is appropriate for installations where wire retention and a clean finished appearance are priorities. Electricians and panel builders typically install this duct in horizontal or vertical runs inside enclosures. The snap-on compatible cover style allows for easy closure after wiring is complete, keeping conductors secured and protected.

Key Features

• Narrow slot design with 0.2 inch slot width for secure wire retention
• 72 inch length provides a full 6 ft run per piece
• White PVC construction with UL 94V-0 flame rating
• Screw mount installation for secure enclosure attachment
• Compatible with snap-on cover style for finished appearance
• CE Compliant, CSA Certified, and RU Certified for broad application acceptance

Compatibility

Compatible cover style is snap-on. Designed as an OEM-style wiring duct for use in electrical enclosures and control panels requiring narrow slot wall duct with screw mount attachment.

Installation Notes

Installation is typically performed by licensed electricians or qualified panel builders. De-energize all circuits and follow lockout/tagout procedures before working inside any electrical enclosure. Secure the duct to the enclosure backpan using appropriate screws at regular intervals to prevent sagging or movement. Refer to NEC guidelines for fill capacity and conductor bundling requirements when routing wires through the duct.
