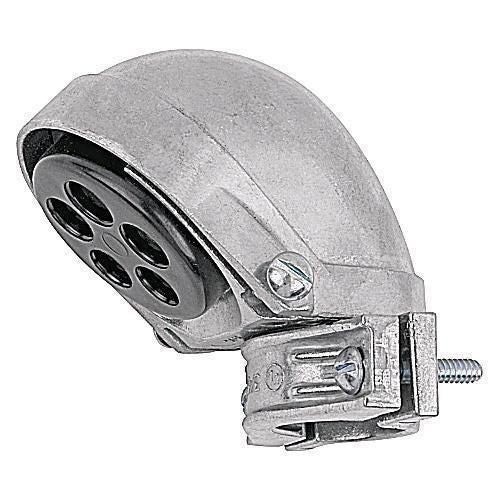

Abb sh-108 Clamp-on Service Cable Cap 3 in 7 Hole Aluminum

Product Description

The ABB INSTALLATION PRODUCTS sh-108 is a clamp-on service cable cap designed to secure and protect service entrance cable at the weatherhead. Built from aluminum, this cap features seven 1-1/8 inch holes arranged in a 3 inch body to accommodate multiple conductors entering a service entry point. It installs without cutting or threading, clamping directly onto the conduit end for a fast, secure fit. Electricians use this cap on residential and light commercial service entrances where conduit terminates at the meter or service head location.

The sh-108 is suited for use with Rigid, IMC, and EMT conduit systems in service entrance applications. The seven 1-1/8 inch holes allow routing of individual service conductors through the cap, keeping cables organized and protected at the conduit termination point. Its aluminum construction resists corrosion in outdoor service entrance environments, making it appropriate for exposed installations at the exterior of residential and commercial structures.

Key Features

• Clamp-on design installs directly onto conduit end without threading or cutting
• Seven 1-1/8 inch holes accommodate multiple service entrance conductors
• 3 inch body size fits standard service entrance conduit
• Aluminum construction provides corrosion resistance for outdoor installations
• Compatible with Rigid, IMC, and EMT conduit types
• Listed to UL E13938, CSA Certified, and RoHS Compliant

Compatibility

Designed for use with Rigid, IMC, and EMT conduit in service entrance applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the service entrance and coordinate with the utility provider before working at the service head. The clamp-on cap should be secured firmly to the conduit end before pulling service conductors through the holes. Ensure the cap is oriented to shed water away from the conduit opening per standard weatherhead installation practice.

Technical Specifications

• Size: 3 inches
• Number of Holes: 7
• Hole Size: 1-1/8 inches
• Material: Aluminum
• Type: Clamp-On
• Standards and Approvals: UL E13938, CSA Certified, RoHS Compliant
• Suitable For Use With: Rigid, IMC and EMT Conduit

Standard Information

• Brand: ABB INSTALLATION PRODUCTS
• Manufacturer Part Number: sh-108
