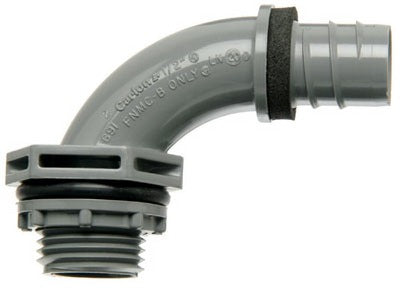

Abb LN20DA-CTN 1/2 in 90 Degree Liquid Tight Connector

Product Description

The ABB INSTALLATION PRODUCTS LN20DA-CTN is a 1/2 inch, 90-degree non-metallic liquid tight connector designed for securing flexible liquid tight conduit in electrical installations. Built from PVC, this fitting provides dependable protection against water, oil, and dust ingress at the conduit termination point. The one-piece body design eliminates the need to disassemble components before installation, and the fitting is engineered with enough structural integrity that no separate compression nut is required. Licensed electricians and electrical contractors install this connector where code requires liquid tight protection on flexible conduit runs.

This connector is suited for residential, commercial, and light industrial electrical applications where 1/2 inch flexible non-metallic liquid tight conduit terminates at enclosures, panels, motors, or junction boxes. The 90-degree angle makes it practical in tight spaces or where a straight connector would conflict with adjacent equipment or structural elements. It is commonly used in wet or damp locations, outdoor installations, and anywhere exposure to oil, dust, or water is a concern. Sold in packages of 20 pieces, making it practical for contractors stocking up for multiple runs or larger jobs.

Key Features

• One-piece body requires no disassembly of components for installation, saving time on the job
• No compression nut required — the fitting body provides sufficient clamping strength
• PVC construction on the fitting and locknut delivers resistance to water, oil, and dust
• 90-degree configuration suits tight conduit routing and space-constrained terminations
• Sized for 1/2 inch non-metallic liquid tight flexible conduit
• Sold in a package of 20 pieces for efficient stocking and multi-connection jobs

Compatibility

Designed for use with 1/2 inch non-metallic liquid tight flexible conduit in standard electrical installations. No specific compatible model numbers or system families were identified in the product data.

Installation Notes

Installation is performed by a licensed electrician in accordance with applicable NEC requirements for liquid tight flexible non-metallic conduit fittings. De-energize all circuits at the panel before making conduit terminations at enclosures or equipment. Ensure the conduit is fully seated in the connector body before tightening the locknut to achieve a secure, liquid tight seal. Do not overtighten the locknut on PVC fittings, as excessive force can crack the material.

Technical Specifications

• Conduit Size: 1/2 inch
• Angle: 90 degrees
• Body Material: PVC
• Body Style: One-piece, no disassembly required
• Package Quantity: 20 pieces
• Weight: 0.97 pounds (package)
• Unit of Measure: EA

Standard Information

• Brand: ABB INSTALLATION PRODUCTS
• Manufacturer Part Number: LN20DA-CTN
