Abb Installation Products Xc 276 Squeeze Connector 2 in

Product Description

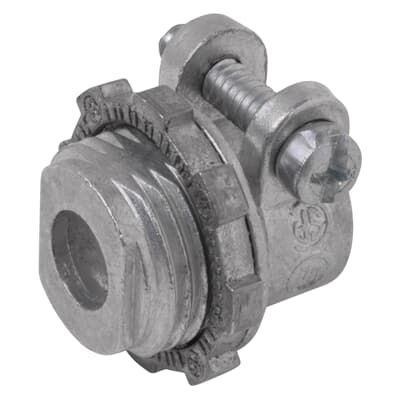

The ABB INSTALLATION PRODUCTS xc 276 is a straight squeeze-type connector designed for use with armored cable (AC), flexible conduit, and DC wiring applications. Built from die cast zinc, this connector provides a durable, corrosion-resistant connection point where flexible conduit or AC cable meets an electrical enclosure or junction box. Sized at 2 inches with a clamping range of 2.12 inches to 2.47 inches and an overall length of 2.54 inches, it accommodates standard trade-size flexible wiring assemblies. Licensed electricians and electrical contractors install this type of fitting as part of panel, junction, and device box terminations.

This connector is suited for residential and commercial electrical installations where flexible conduit or armored cable must be terminated at a box knockout. The squeeze-type design allows tool-free or minimal-tool clamping onto the conduit or cable jacket, securing the assembly without requiring separate locknuts in some configurations. It is appropriate for use in standard indoor electrical rough-in and finish wiring scenarios where a 2-inch trade size fitting is specified.

Key Features

• Straight squeeze-type design for secure termination of AC cable and flexible conduit
• 2-inch trade size fits standard 2-inch knockouts
• Clamping range of 2.12 inches to 2.47 inches accommodates typical cable jacket diameters
• Overall length of 2.54 inches for compact installation in tight enclosure locations
• Die cast zinc construction for durability and corrosion resistance
• Listed under UL E23018 for verified safety compliance

Compatibility

Designed as an OEM-style replacement and standard-fit connector for 2-inch trade size armored cable and flexible conduit terminations in residential and commercial electrical enclosures.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize and lock out the circuit or panel before beginning any conduit termination work. Insert the flexible conduit or AC cable into the connector and tighten the squeeze clamp to secure the cable jacket before inserting the connector into the knockout. Verify that the connector is fully seated and that the locknut, if required, is properly tightened against the enclosure wall.

Technical Specifications

• Size: 2 inches
• Clamping Range: 2.12 inches to 2.47 inches
• Length: 2.54 inches
• Material: Zinc Die Cast
• Connector Type: Straight Squeeze
• Application: AC Cable, Flexible Conduit, DC
• Standard: UL E23018

Standard Information

• Brand: ABB INSTALLATION PRODUCTS
• Manufacturer Part Number: xc 276
