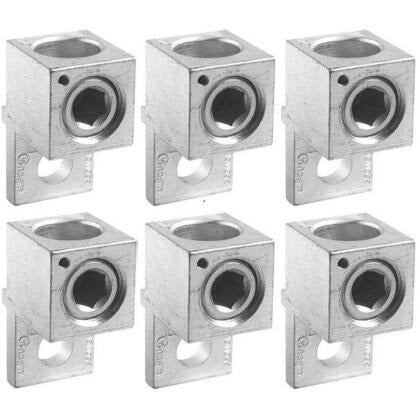

Abb Installation Products ozxa-24 Terminal Lug Kit 6 Lugs

Product Description

The ABB INSTALLATION PRODUCTS ozxa-24 is a terminal lug kit designed for use with OS100 type fusible disconnect switches. The kit includes 6 lugs and accepts both copper and aluminum conductors ranging from 14 AWG to 2/0 AWG. These lugs provide the mechanical and electrical connection between incoming or outgoing conductors and the disconnect switch terminals. Licensed electricians and electrical contractors typically install this kit during disconnect switch commissioning or conductor replacement in commercial and industrial panel applications.

This lug kit is intended for use with OS100 type fusible disconnect switches in applications where multi-conductor termination is required. The wide wire range, 14 AWG through 2/0 AWG, allows a single kit to accommodate varied conductor sizes commonly encountered in commercial electrical distribution systems. The Cu/Al dual-rated design eliminates the need to stock separate lug sets for aluminum or copper wiring installations.

Key Features

• Kit includes 6 lugs for complete disconnect switch termination
• Accepts wire sizes from 14 AWG to 2/0 AWG
• Dual-rated for copper and aluminum conductors
• Designed specifically for OS100 type fusible disconnect switches
• Enables field termination of varied conductor sizes with a single kit

Compatibility

Designed for use with OS100 type fusible disconnect switches as stated by the manufacturer.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the disconnect switch before beginning any termination work. Use a torque wrench or torque screwdriver sized for the lug hardware to ensure proper conductor termination. When terminating aluminum conductors, follow standard practices for aluminum wiring, including the use of appropriate joint compound where required.
