Abb Installation Products L250 Connector Mech Strd Copper 13/32In 1 Str

Product Description

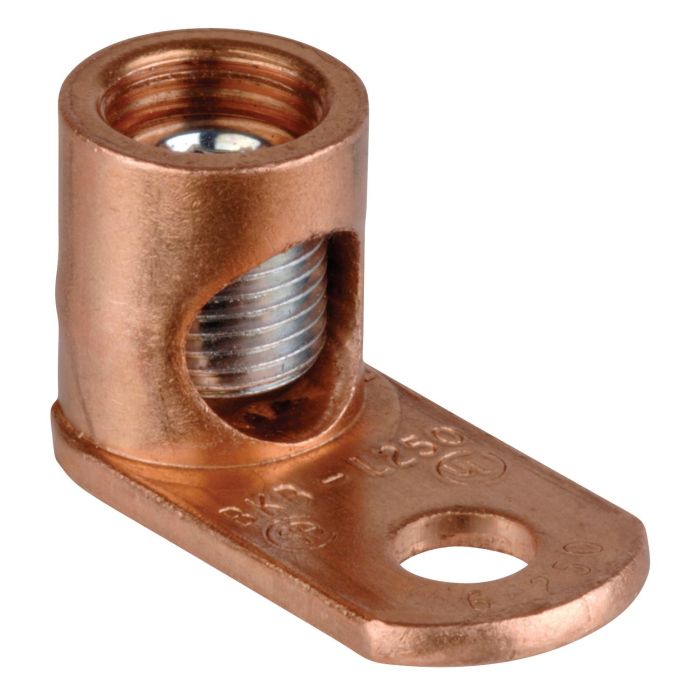

The ABB INSTALLATION PRODUCTS L250 is a Blackburn® Type L compact mechanical connector designed for stranded copper conductors. It accommodates conductor sizes from 6 AWG to 250 kcmil and features a 13/32 in stud with 1 bolt hole. This connector is cold forged from pure electrolytic copper with 99 percent conductivity.

• Compact Mechanical Connector
• Stranded Copper Conductor
• Cold forged from pure electrolytic copper with 99 percent conductivity

Product Highlights

Designed for strength and durability, the ABB INSTALLATION PRODUCTS L250 is excellent for confined spaces and UL 486A tested.

Product Information

Standard Information

• Brand: ABB INSTALLATION PRODUCTS
• Manufacturer Part Number: L250

Technical Specifications

• Conductor Size: 6 AWG to 250 kcmil Stranded Copper Conductor
• Stud Size: 13/32 in
• Bolt Holes: 1
• Manufacturer: ABB - Installation Products
• Conductor Type: Stranded Copper
• Number of Bolt Holes: 1
• Type: Type L Compact
• Tongue Size: 1-3/32in L x 15/16 in W x 1/8 in THK
• Tongue Type: Straight
• Material: Copper
• Wire Range: 6 Str.-250 kcmil
• Length: 1-61/64"
• Width: 15/16"
• Height: 1-1/16"
