Abb Installation Products L125h Connector Mech Strd Sol Copper 21/64in

Product Description

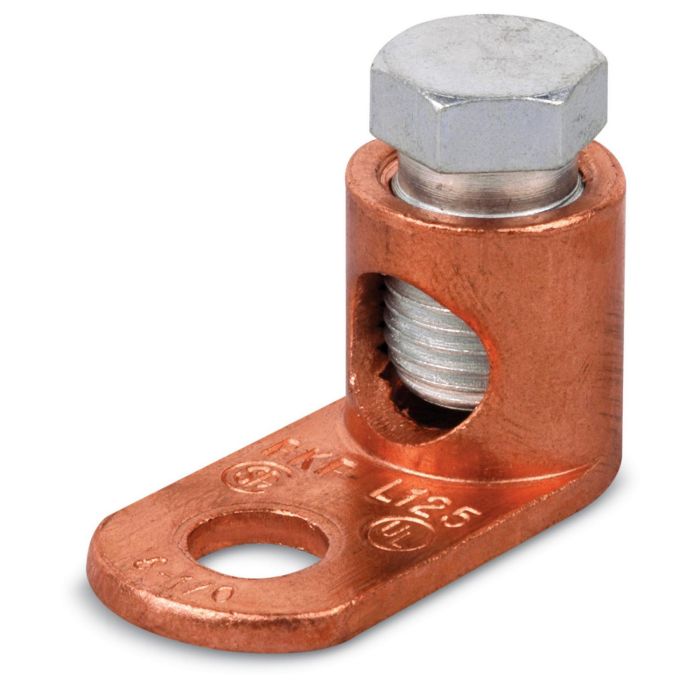

The ABB INSTALLATION PRODUCTS L125H is a Blackburn® Type L mechanical connector designed for stranded solid copper conductors. It accommodates conductor sizes from 8 to 1/0 AWG and features a 21/64 inch stud. This connector includes 1 bolt hole and is constructed from copper. It is suitable for electrical interface needs in confined spaces.

• Type L Mechanical Connector
• Stranded Solid Copper Conductor
• Cold forged from pure electrolytic copper with 99 percent conductivity

Product Highlights

The L125H connector offers a durable, one-piece construction and is ideal for use in tight spaces.

Product Information

Standard Information

• Brand: ABB INSTALLATION PRODUCTS
• Manufacturer Part Number: L125H

Technical Specifications

• Conductor: Copper
• Conductor Size: 8 to 1/0 AWG Stranded Solid
• Stud Size: 21/64 in
• Type: Mechanical Connector
• Bolt Holes: 1
• Conductor Type: Stranded Solid Copper
• Number of Bolt Holes: 1
• Tongue Size: 27/32 in L x 47/64 in W x 3/32 in THK
• Tongue Type: Straight
