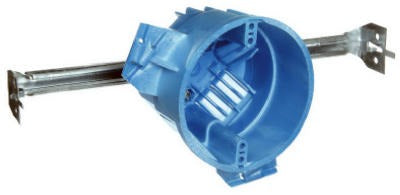

Abb Installation Products BH525H Ceiling Box Hanger Bar 25 Cu in

Product Description

The ABB INSTALLATION PRODUCTS BH525H is a hard-body plastic ceiling electrical box with an integrated hanger bar, designed for overhead fixture and device installations in residential and light commercial construction. The box provides 25 cubic inches of interior capacity, meeting NEC fill requirements for most standard wiring configurations. It is listed for fixture support up to 50 pounds, making it suitable for ceiling fans, luminaires, and other suspended fixtures. Integral cable clamps are molded into the box body, eliminating the need for separate metal clamps and screws. The rigid construction resists flexing and maintains its shape under load and during installation.

This box is used in new construction and retrofit ceiling applications where a hanger bar is needed to span between joists or framing members. It is well suited for drywall and open-ceiling installs where the fixture location does not fall directly on a joist. Electricians install this box in residential homes, apartments, and light commercial spaces when hanging ceiling fixtures, paddle fans, or other overhead electrical equipment that requires a rated support enclosure.

Key Features

• 25 cubic inch interior capacity supports standard NEC wiring fill requirements
• Listed for fixture support up to 50 pounds
• Integrated hanger bar for between-joist installation without additional hardware
• Hard-body construction resists flexing and holds shape under load
• Integral cable clamps molded into the box body, eliminating separate metal clamps and screws
• Sold in a package quantity of 20 units

Compatibility

Designed as an OEM-style replacement and new-installation ceiling box for standard residential and light commercial electrical fixture applications requiring a hanger bar mount.

Installation Notes

Installation is performed by a licensed electrician in accordance with NEC requirements for outlet box fill and fixture support. Power to the circuit must be shut off and verified de-energized at the breaker before beginning work. The hanger bar should be fully extended and secured to framing before attaching the fixture or device. Do not exceed the 50-pound fixture weight rating under any circumstances.

Technical Specifications

• Box Capacity: 25 cubic inches
• Fixture Weight Rating: 50 pounds
• Package Weight: 13.22 pounds
• Package Quantity: 20 units
• Unit of Measure: EA

Standard Information

• Brand: ABB INSTALLATION PRODUCTS
• Manufacturer Part Number: BH525H
