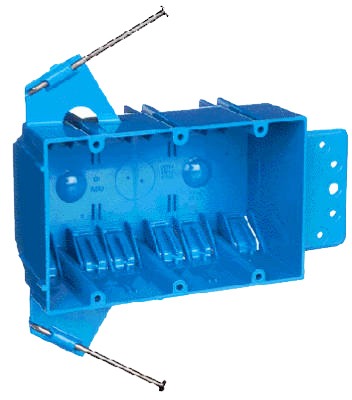

Abb Installation Products B344AB 3-gang New Work Outlet Box

Product Description

The ABB INSTALLATION PRODUCTS B344AB is a 3-gang new work switch and outlet box designed for residential and light commercial electrical rough-in installations. Molded from blue PVC, this box measures 5.625 inches wide by 3.75 inches tall by 2.6875 inches deep and provides 44 cubic inches of interior volume. It ships in quantities of one unit and is well-suited to standard stud-frame wall cavities. Twelve integral clamps, six per side, secure non-metallic sheathed cable without requiring separate connectors, reducing parts count and speeding rough-in work.

This box is used in new construction framing where wallboard has not yet been installed. The captive nails allow direct attachment to wood studs, and the built-in leveling guides help the installer set consistent box depth relative to the finished wall surface. Typical applications include multi-switch locations, combination switch and receptacle installations, and any rough-in requiring a 3-gang PVC box in wood-frame construction.

Key Features

• 44 cubic inch capacity meets NEC box-fill calculation requirements for 3-gang device configurations
• Blue PVC construction resists corrosion and is non-conductive
• Captive nails allow direct nail-on mounting to wood studs without separate fasteners
• 12 integral cable clamps, 6 per side, secure NM cable without loose fittings
• Leveling guides support accurate box depth setting for flush wallboard installation
• Dimensions: 5.625 inches x 3.75 inches x 2.6875 inches deep

Compatibility

Designed as an OEM-style replacement and standard new work box for 3-gang switch and outlet installations in wood-frame residential and light commercial construction.

Installation Notes

Installed by licensed electricians during the rough-in phase before drywall is applied. De-energize all circuits in the work area before pulling cable into the box. Installations must comply with NEC Article 314 requirements for box fill and support. Do not use this box as a substitute for old-work or remodel boxes in finished wall applications.

Technical Specifications

• Gang Count: 3
• Box Volume: 44 cubic inches
• Width: 5.625 inches
• Height: 3.75 inches
• Depth: 2.6875 inches
• Material: Blue PVC
• Mounting: Captive nail-on, new work
• Integral Clamps: 12 (6 per side)
• Package Quantity: 30 per case
• Unit of Measure: EA
• Weight: 13 pounds

Standard Information

• Brand: ABB INSTALLATION PRODUCTS
• Manufacturer Part Number: B344AB
