Abb Installation Products asl60-42 connector mech al/strd copper 13/32in

Product Description

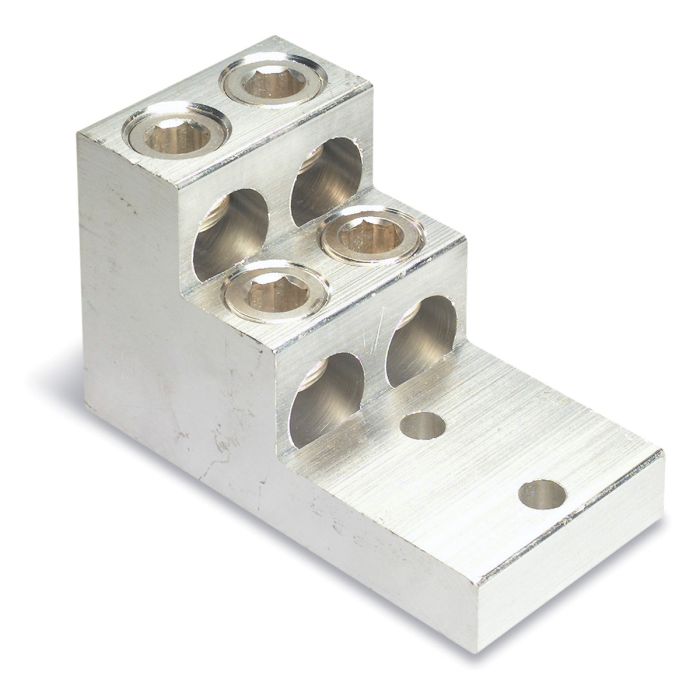

The ABB INSTALLATION PRODUCTS ASL60-42 is a Blackburn® Type ASL-ALCUL dual rated mechanical connector for aluminum or stranded copper conductors ranging from 2 AWG to 600 kcmil. It features a 13/32 in stud and 2 bolt holes. This aluminum connector is tin plated for low contact resistance and easy installation.

• Dual Rated for Aluminum and Stranded Copper Conductors
• Mechanical Connector
• Aluminum Construction

Product Highlights

Dual rated for aluminum and stranded copper conductors. Easy to install with no special tools required. Tin plated for low contact resistance.

Product Information

Standard Information

• Brand: ABB INSTALLATION PRODUCTS
• Manufacturer Part Number: ASL60-42

Technical Specifications

• Conductor Type: Aluminum/Stranded Copper
• Conductor Size: 2 AWG to 600 kcmil
• Stud Size: 13/32 in
• Number of Bolt Holes: 2
• Material: Aluminum
• Type: ASL-ALCUL Dual Rated Mechanical Connector
• Finish: Tin Plated
• Standards: UL File Number E9809
