Abb Installation Products Adr80 connector mech al/copper 300 to 800kcmil

Product Description

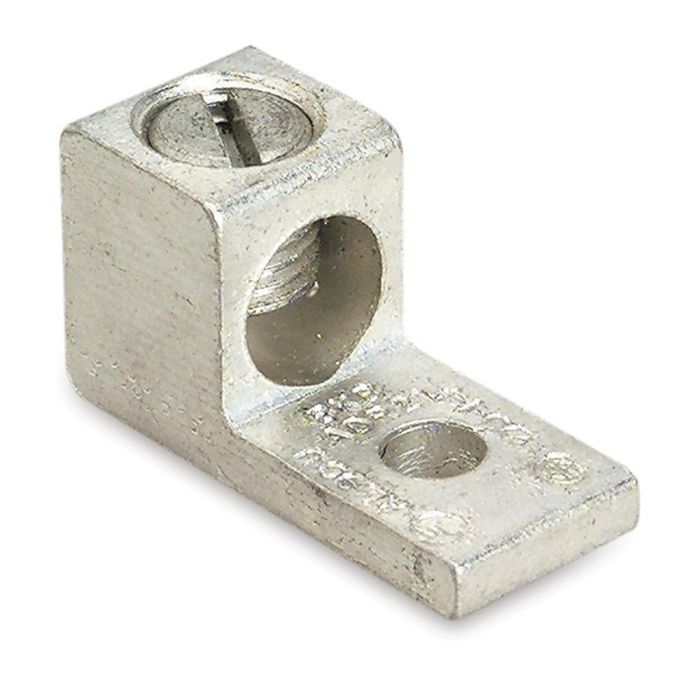

ABB INSTALLATION PRODUCTS ADR80 Type ADR-ALCUL dual-rated mechanical lug for aluminum or copper conductors, accommodating sizes from 300 to 800 kcmil. Features a 5/8 in stud and 1 bolt hole. The tin plated lug ensures low contact resistance and easy installation without special tools.

• Dual-Rated Mechanical Lugs
• Aluminum/Copper Conductor
• Easy installation no special tools required

Product Highlights

The ADR80 mechanical lug offers a versatile and reliable connection for various electrical interface needs, with a tin plated finish.

Product Information

Standard Information

• Brand: ABB INSTALLATION PRODUCTS
• Manufacturer Part Number: ADR80

Technical Specifications

• Conductor Size: 300 to 800 kcmil
• Conductor Material: Aluminum/Copper
• Stud Size: 5/8 in
• Bolt Holes: 1
• Manufacturer: ABB - Installation Products
• Conductor Type: Aluminum/Copper
• Number of Bolt Holes: 1
• Type: Type ADR-ALCUL Dual-Rated
• Tongue Size: 1-3/4 in L x 1-3/4 in W x 5/8 in THK
• Tongue Type: Straight
• Voltage Rating: 600 VAC
• Finish: Tin Plated
• Dimensions: 3-3/8 in L x 1-3/4 in W x 1-15/16 in H
