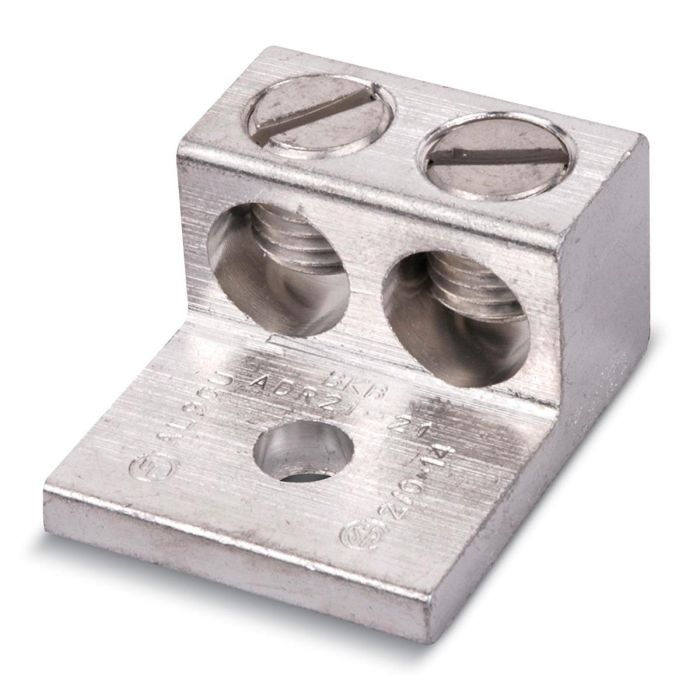

Abb Installation Products ADR80-21 Connector Mech Al/Copper 300 To 800Kcmil

Product Description

ABB INSTALLATION PRODUCTS ADR80-21 is a Blackburn® Type ADR-ALCUL dual rated mechanical connector for aluminum or copper conductors ranging from 300 to 800 kcmil. It features a 5/8 in stud and 1 bolt hole. These mechanical connections are cast, forged, or formed and provide UL and CSA certified solutions.

• Dual Rated
• Cast, forged or formed mechanical connections
• UL and CSA certified solutions

Product Highlights

The ADR80-21 connector offers a reliable and versatile solution for electrical interface needs, with easy installation and durable construction.

Product Information

Standard Information

• Brand: ABB INSTALLATION PRODUCTS
• Manufacturer Part Number: ADR80-21
• Country of Origin: MX

Technical Specifications

• Conductor Material: Aluminum/Copper
• Conductor Size: 300 to 800 kcmil
• Stud Size: 5/8 in
• Bolt Holes: 1
• Type: ADR-ALCUL Dual Rated
• Tongue Length: 1-3/4 in
• Tongue Width: 3-3/16 in
• Tongue Thickness: 1/2 in THK
• Tongue Type: Straight Tongue
• Conductor Count: 2-Conductor
• Hole Spacing: 1-5/8 in
• Material: Aluminum, Tin Plated
• Finish: Tin Plated
• Brand: Blackburn®
