Abb Installation Products Adr35-32 Connector Mech Al/Strd Copper 1/2in 2 Al

Product Description

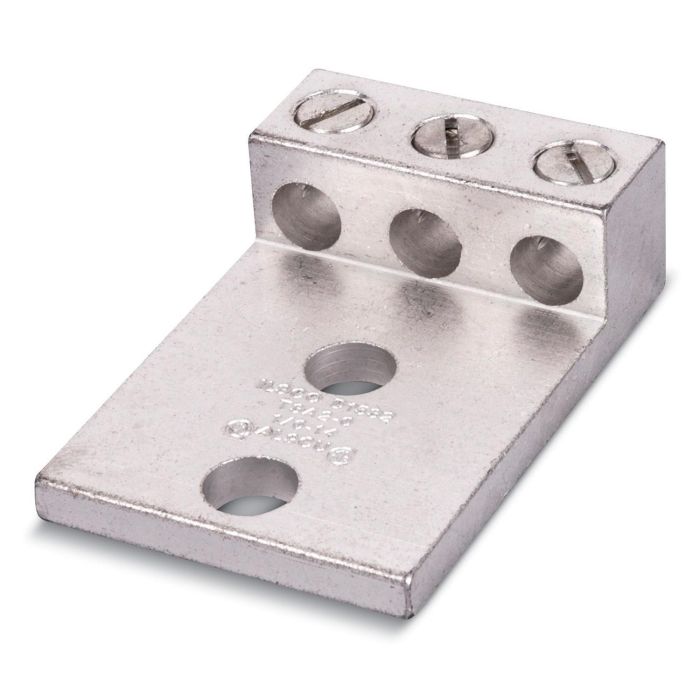

The ABB INSTALLATION PRODUCTS ADR35-32 is a Blackburn® ADR-ALCUL type dual-rated mechanical connector for aluminum or stranded copper conductors, accommodating sizes from 6 AWG to 350 kcmil. It features a 1/2 inch stud and 2 bolt holes. This connector ensures a reliable electrical connection for a variety of applications.

• Dual Rated for Aluminum and Stranded Copper Conductors
• Mechanical Connector
• 1/2 in Stud

Product Highlights

Easy to install mechanical connector with no special tools required. Tin plated for low contact resistance.

Product Information

Standard Information

• Brand: ABB INSTALLATION PRODUCTS
• Manufacturer Part Number: ADR35-32

Technical Specifications

• Conductor Size: 6 AWG to 350 kcmil
• Conductor Material: Aluminum/Stranded Copper
• Stud Size: 1/2 in
• Number of Bolt Holes: 2
• Connector Type: Mechanical Connector
• Rating: Dual Rated
• Manufacturer: ABB - Installation Products
• Type: Type ADR-ALCUL Dual Rated
• Tongue Size: 3-1/16 in L x 3-3/16 in W x 1/4 in THK
• Tongue Type: Straight
• Finish: Tin Plated
