Abb Installation Products Adr35-12 Connector Mech Al/Strd Copper 1/2In 2 Al

Product Description

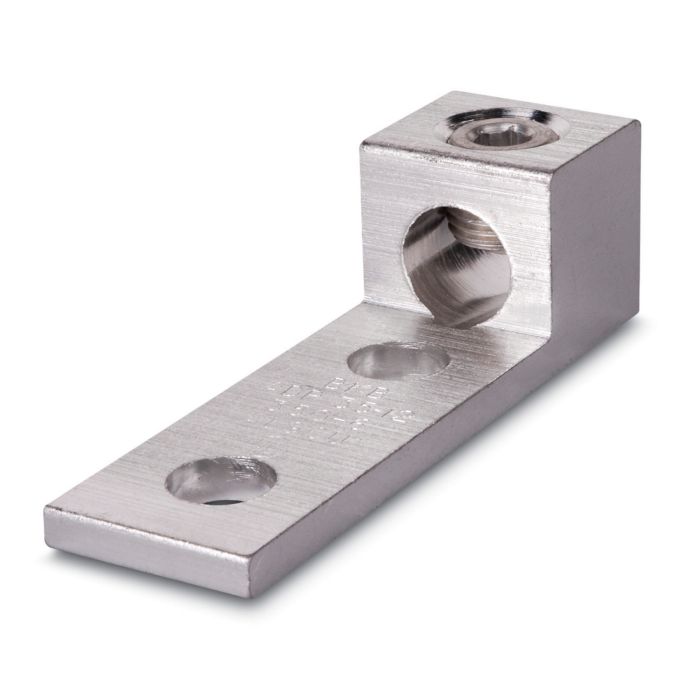

The ABB INSTALLATION PRODUCTS ADR35-12 is a Blackburn® mechanical connector, a Type ADR-ALCUL dual-rated connector for aluminum or stranded copper conductors, accommodating sizes from 6 AWG to 350 kcmil. It features a 1/2 inch stud and 2 bolt holes. The tin-coated aluminum connector measures 4-1/4 in L x 1-1/4 in W x 1-3/8 in H.

• Easy installation - no special tools required
• NEMA spacing 1-3/4 in centers
• Extra aluminum lug

Product Highlights

This dual-rated mechanical connector is tin-plated for low contact resistance and suitable for use with aluminum and copper conductors.

Product Information

Standard Information

• Brand: ABB INSTALLATION PRODUCTS
• Manufacturer Part Number: ADR35-12
• Country of Origin: Mexico

Technical Specifications

• Manufacturer: ABB - Installation Products
• Conductor Size: 6 AWG to 350 kcmil
• Conductor Type: Aluminum/Stranded Copper
• Stud Size: 1/2 in
• Number of Bolt Holes: 2
• Type: Type ADR-ALCUL Dual Rated
• Tongue Type: Straight
• Specifications: 1-Conductor, 1-3/4 in Hole Spacing
• Finish: Tin Coated
• Brand: BLACKBURN MECHANICAL
• Country of Origin: Mexico
• Made in USA: No
• Material: Aluminum
• Number of Conductors: 1
• Standard: UL E9809
• UPC: 783786610204
• GTIN: 00783786610204
• Item Type: Dual-Rated Mechanical Connector
• ECCN: EAR99
• UNSPSC: 39121408
• Use With: Aluminum and Copper Conductors
