Abb Installation Products ADR25-32 Connector Mech Al/Strd Copper 1/2In 2 Al

Product Description

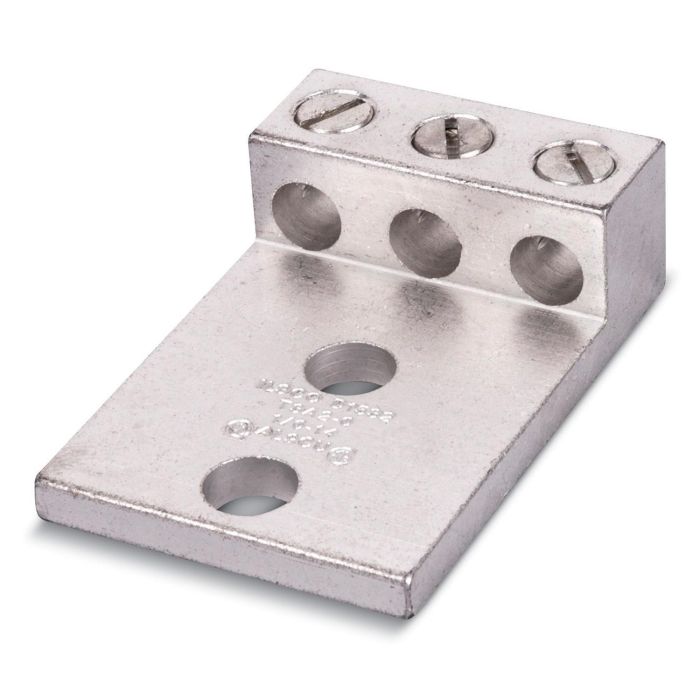

The ABB INSTALLATION PRODUCTS ADR25-32 is a Blackburn® ADR-ALCUL type dual-rated mechanical connector that accepts 6 AWG to 250 kcmil aluminum or stranded copper conductors. It features a 1/2 inch stud and 2 bolt holes. This connector provides a versatile solution for electrical interface needs.

• Dual Rated Mechanical Connector
• Accepts 6 AWG to 250 kcmil conductors
• Cast, forged or formed mechanical connections

Product Highlights

The ADR25-32 connector offers easy installation and is UL and CSA certified. It is tin plated for low contact resistance.

Product Information

Standard Information

• Brand: ABB INSTALLATION PRODUCTS
• Manufacturer Part Number: ADR25-32

Technical Specifications

• Conductor: Aluminum/Stranded Copper
• Stud Size: 1/2 in
• Bolt Holes: 2
• Type: ADR-ALCUL Dual Rated
• Conductor Material: Aluminum/Stranded Copper Conductor
• Conductor Size: 6 AWG to 250 kcmil
• Tongue Length: 3-1/16 in
• Tongue Width: 2-13/16 in
• Tongue Thickness: 1/4 in THK
• Tongue Type: Straight
• Hole Spacing: 31/32 in
• Material: Aluminum, Tin Plated
• Number of Bolt Holes: 2
• Finish: Tin Plated
