Abb Installation Products Adr21 Connector Mech Al/Strd Copper 1/4In 1 Al

Product Description

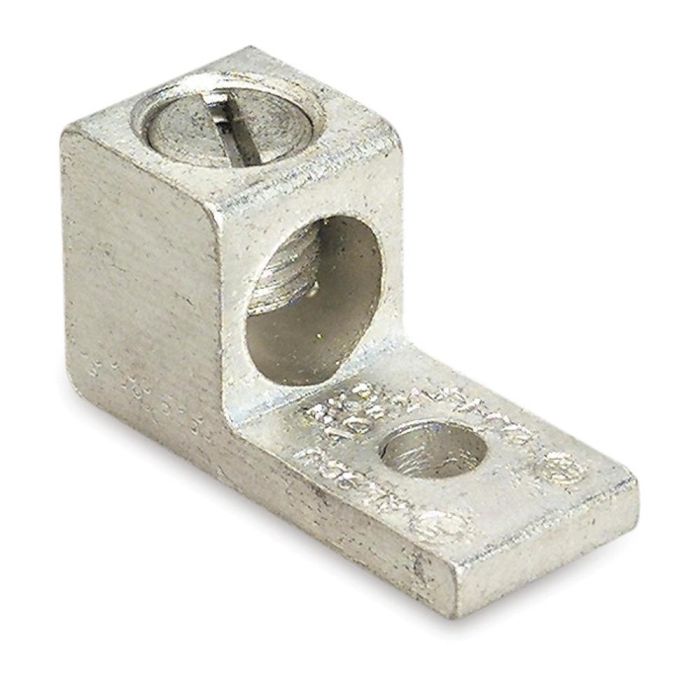

The ABB INSTALLATION PRODUCTS ADR21 is a Blackburn® Type ADR-ALCUL dual-rated mechanical connector for aluminum or stranded copper conductors, accommodating sizes from 14 to 2/0 AWG. It features a 1/4 inch stud and a single bolt hole, ensuring a secure electrical connection.

• Dual Rated
• Mechanical Connector
• Cast, forged or formed mechanical connections

Product Highlights

This Blackburn® ADR21 connector offers a reliable and versatile solution for various electrical interface needs, with UL and CSA certified options available.

Product Information

Standard Information

• Brand: ABB INSTALLATION PRODUCTS
• Manufacturer Part Number: ADR21

Technical Specifications

• Conductor Size: 14 to 2/0 AWG
• Conductor Material: Aluminum/Stranded Copper
• Stud Size: 1/4 in
• Number of Bolt Holes: 1
• Type: ADR-ALCUL Dual Rated
• Tongue Dimensions: 27/32 in L x 5/8 in W x 3/16 in THK
• Tongue Type: Straight Tongue
• Voltage: 600 VAC
• Conductor Configuration: 1-Conductor
• Screw Type: Slotted Screw
• Hole Spacing: 1/4 in
• Material: Aluminum, Tin Coated
• Overall Dimensions: 1-15/32 in L x 5/8 in W x 25/32 in H
