Abb Installation Products Adr21-21 Connector Mech Al/Strd Copper 1/4In 1 Al

Product Description

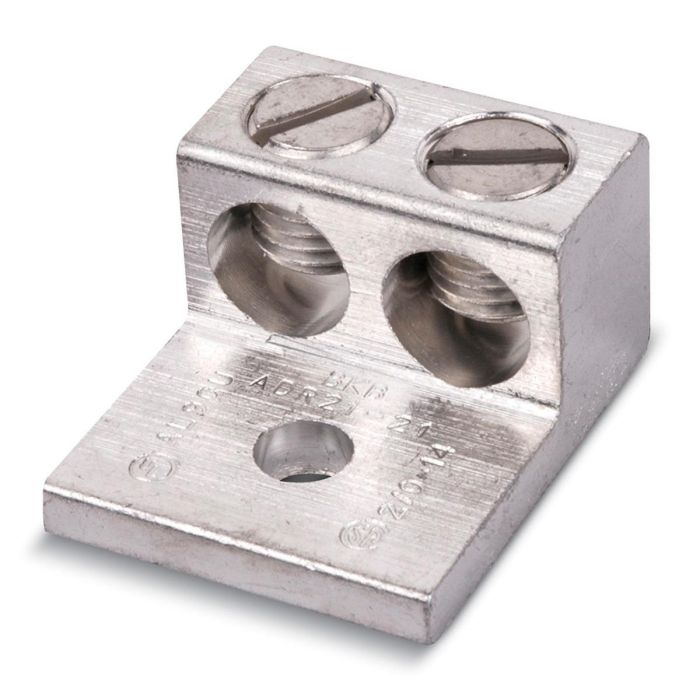

The ABB INSTALLATION PRODUCTS ADR21-21 is a Blackburn® ADR-ALCUL dual-rated mechanical connector designed for aluminum or stranded copper conductors, accommodating sizes from 14 to 2/0 AWG. It features a 1/4 inch stud and a single bolt hole. This connector ensures a reliable electrical interface for various applications.

• Dual Rated Mechanical Connector
• Easy installation - no special tools required
• Tin plated for low contact resistance

Product Highlights

The ADR21-21 mechanical connector offers versatility and ease of use for connecting aluminum and stranded copper conductors.

Product Information

Standard Information

• Brand: ABB INSTALLATION PRODUCTS
• Manufacturer Part Number: ADR21-21

Technical Specifications

• Conductor: Aluminum/Stranded Copper
• Conductor Size: 14 to 2/0 AWG
• Stud Size: 1/4 in
• Bolt Holes: 1
• Type: ADR-ALCUL Dual Rated
• Tongue Dimensions: 27/32 in L x 1-1/4 in W x 3/16 in THK
• Tongue Type: Straight
• Hole Spacing: 21/32 in
• Material: Aluminum, Tin Coated
• Overall Dimensions: 1-15/32 in L x 1-1/4 in W x 25/32 in H
• Conductor Type: Aluminum/Stranded Copper
