Abb Installation Products 6CA Connector Bolt Split Sol Al/Copper Al

Product Description

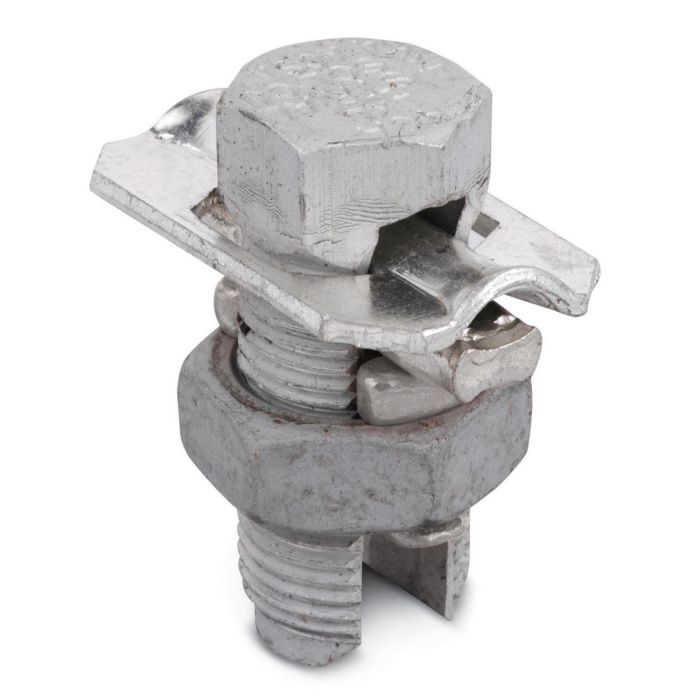

The ABB INSTALLATION PRODUCTS 6CA is a Blackburn® Split Bolt Connector, designed as a type CA connector for solid aluminum/copper conductors, accommodating sizes from 6 to 4 AWG. It features a bolt size of 17/32 x 1-9/32 inches and a split of 0.236 inches with a 23/32 inch hex nut. The connector is tin plated and metallic in color.

• Bolt, nut and washer made of high-strength aluminum alloy
• Pressure bar and contoured spacer made of electrolytic copper
• Spacer is completely tin plated

Product Highlights

Ideal for splicing, tapping, or terminating conductors in power and grounding electrical connections. Recommended for use with Blackburn® contax paste.

Product Information

Standard Information

• Brand: ABB INSTALLATION PRODUCTS
• Manufacturer Part Number: 6CA

Technical Specifications

• Manufacturer: ABB - Installation Products
• Conductor Size: 6 to 4 AWG
• Conductor Type: Solid Aluminum/Copper
• Bolt Size: 17/32 x 1-9/32 in
• Type: Type CA
• Finish: Tin Plated
• Material: Aluminum
• Wire Type: Copper, Aluminum
• Conductor Range for Equal Main and Tap: 4 Sol.-6 Sol.
• Conductor Range Min. Tap with one Max. Main: 4 Sol.-12 Sol.
• A (inches): 17/32
• B (inches): 0.236
• C (inches): 23/32
• D (inches): 1 9/32
