Abb Installation Products 256-30695-593 Lug Compression 1/0 AWG 1/2 In

Product Description

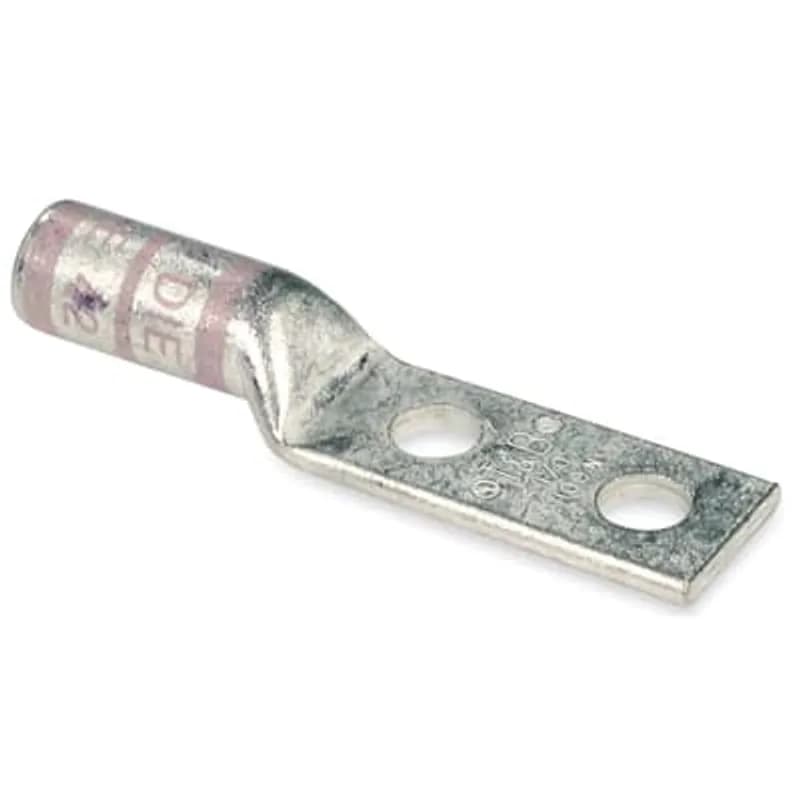

The ABB INSTALLATION PRODUCTS 256-30695-593 is a Color-Keyed® 2-Hole Non-Insulated Compression Lug designed for 1/0 AWG copper conductors. This lug features a 1/2 inch stud size and utilizes Die Code 42 for proper crimping. It is suitable for stranded copper wire and high-voltage applications up to 35 kV AC. The lug is tin-plated for corrosion resistance and is CSA Certified and UL Listed.

• Color-Keyed® technology ensures proper crimping with matching tools and dies.
• 2-Hole non-insulated design for 1/0 AWG copper conductors.
• Tin-plated high-conductivity wrought copper material for corrosion resistance and durability.

Product Highlights

This compression lug is ideal for grounding, bonding, power distribution, and renewable energy applications, offering reliable electrical connections.

Product Information

Standard Information

• Brand: ABB INSTALLATION PRODUCTS
• Manufacturer Part Number: 256-30695-593
• Country of Origin: Mexico

Technical Specifications

• Type: 2-Hole Non-Insulated Compression Lug
• Conductor Size: 1/0 AWG
• Conductor Material: Copper
• Die Code: 42
• Stud Size: 1/2 inch
• Length: 4.33 in
• Material: Electro-Tin Plated High-Conductivity Wrought Copper
• Inspection Hole: No
• Standards: CSA Certified, UL Listed
• Color Code: Pink
• Barrel Type: Long
• Wire Type: Stranded
• Connector Type: Standard Barrel
• Maximum Voltage: 35 kV AC
• Hole Center to Center: 1.75 in
• Tongue Type: Straight
• Tongue Size: 2.812 in L x 0.75 in W x 0.13 in THK
• Barrel Diameter: 0.521 in
