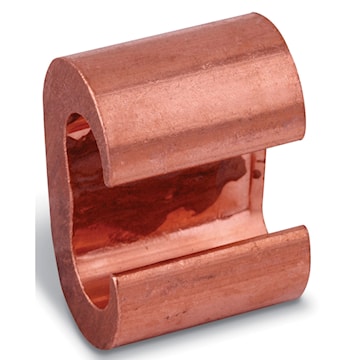

ABB CTP250250 E-Z-Ground C-Taps Copper Compression Connector

Product Description

The ABB INSTALLATION PRODUCTS CTP250250 E-Z-Ground connector offers a reliable and efficient solution for grounding applications. This compression connector is specifically designed for direct burial, providing a safe alternative to exothermic welding options. It is made from high conductivity copper, which enhances performance in grounding systems.

• Engineered for direct burial applications
• Provides a safe alternative to exothermic welding
• Constructed from high conductivity copper

Product Highlights

The ABB CTP250250 is suitable for both main and tap sizes of 3/0 AWG stranded and 250 kcmil, ensuring compatibility with various wiring configurations.

Product Information

Standard Information

• Brand: ABB
• Sub Brand: Blackburn, E-Z-Ground

Technical Specifications

• Item Name: Compression Ground C-Tap Connector
• Connector Type: Compression Ground
• Run Conductor Size: 3/0 AWG Stranded - 250 kcmil
• Tap Conductor Size: 3/0 AWG Stranded - 250 kcmil
• Material: High Conductivity Copper
• Length: 0.88 in
• Height: 2.06 in
• Standards: UL File Number E3060, CSA Certified, IEEE 837
• Shape: C-Tap
• Min Run/Tap: 3/0 Str
• Max Run/Tap: 250 kcmil
