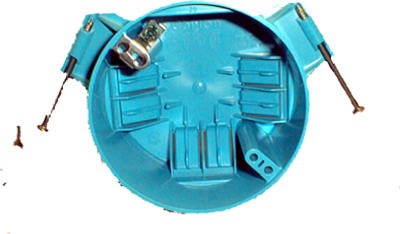

Abb B520P-UPC New Work Ceiling Box 4in Round 20 Cuin

Product Description

The ABB INSTALLATION PRODUCTS B520P-UPC is a new-work round ceiling box designed for light fixture and junction box applications in residential and light commercial construction. The box measures 4 inches in diameter and 2-1/4 inches in depth, providing 20 cubic inches (CUIN) of interior volume to meet wire-fill requirements. Six integral clamps secure incoming cables without the need for separate connectors. Captive nails allow direct mounting to framing members during rough-in, and a grounding lug screw is factory attached for code-compliant equipment grounding. This box is not rated for ceiling fan installations.

This ceiling box is intended for new construction framing installations where the box is mounted before drywall is applied. It is suited for standard residential and light commercial branch circuits feeding flush or pendant light fixtures. The fixture stud spacing accommodates canopies with mounting points between 2-3/4 inches and 3-1/2 inches apart, covering most common residential fixture configurations. Electricians install this box during rough-in framing, securing it to wood joists or framing members using the captive nail fasteners. It is not approved for ceiling fan support applications.

Key Features

• 20 CUIN interior capacity supports conductor fill calculations per NEC requirements
• Six integral cable clamps eliminate the need for additional NM or AC cable connectors
• Captive nail mounting for direct attachment to framing members during rough-in
• Factory-attached grounding lug screw for equipment grounding compliance
• Fixture mounting spacing accepts canopies from 2-3/4 inches to 3-1/2 inches
• Not rated for ceiling fan installations

Compatibility

Designed for new-work framing installations supporting light fixtures and junction box applications. This box is not approved for use with ceiling fans.

Installation Notes

Installation is performed by a licensed electrician during the rough-in framing stage before wallboard or ceiling material is applied. De-energize the circuit at the panel before making any wiring connections. Conductor fill must be calculated per NEC Article 314 to confirm the 20 CUIN capacity is not exceeded for the conductors, clamps, and devices present. Do not use this box to support ceiling fans or fixtures exceeding the box rating.

Technical Specifications

• Box Shape: Round
• Diameter: 4 inches
• Depth: 2-1/4 inches
• Interior Capacity: 20 CUIN
• Conductor Range: 3/0 - 4/0
• Integral Clamps: 6
• Fixture Spacing: 2-3/4 inches to 3-1/2 inches
• Mounting Method: Captive nails to framing
• Ceiling Fan Rated: No
• Package Quantity: 75 per unit of measure (EA)
• Weight: 17 pounds

Standard Information

• Brand: ABB INSTALLATION PRODUCTS
• Manufacturer Part Number: B520P-UPC
