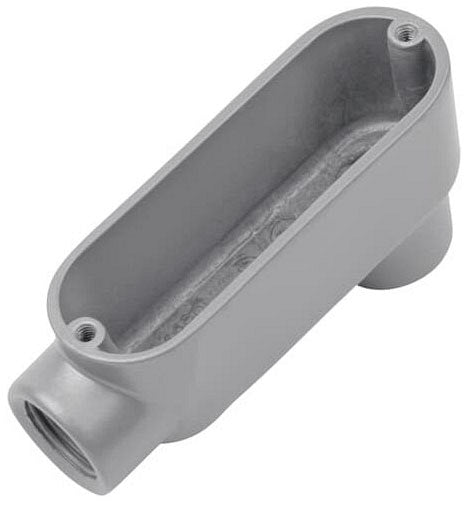

ABB ALB-3 RED 1 RIGID LB CONDUIT BODY

Product Description

ABB presents the ALB-3 Type LB Conduit Body. This product features a one inch hub and provides an eleven point eight cubic inch capacity. Constructed from die cast aluminum, it measures five and three eighths inches in length, five and fifteen sixteenths inches in width, and one and three quarters inches in height.

• Back access opening
• Provides access for pulling, splicing and maintenance
• Retained stainless steel cover screws

Product Highlights

This conduit body is built for reliable performance in electrical installations and meets various standards for safety and effectiveness.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• UPC: 04226931820

Technical Specifications

• Application: For EMT/rigid/IMC conduit
• Connection Type: NPT/Set Screw
• Dimensions: Five and three eighths inches L x five and fifteen sixteenths inches W x one and three quarters inches H
• Hub Size: One inch
• Material: Die Cast Aluminum
• Number of Hubs: Two
• Series: A Series
• Standards/Approvals: CSA Certified, Federal Specification W-C-586, NEC Article No. 370-28, UL File No. E286881
• Type: Type LB
