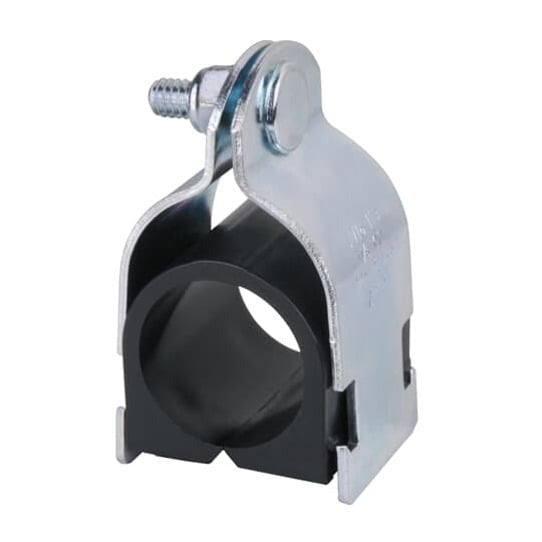

Abb A716-1-1/2 Cushioned Pipe Clamp 1-1/2 in Superstrut 700

Product Description

The ABB INSTALLATION PRODUCTS A716-1-1/2 is a cushioned pipe clamp from the Superstrut 700 Series, designed to secure pipes, tubes, and hoses used in fluid conductor applications. Built from steel with a GoldGalv standard finish, this clamp ships as a complete assembly including the steel clamp body, bolt, locknut, and cushion insert. The cushion reduces vibration transfer and protects the outer surface of the tubing. Sized for 1-1/2 inch outside diameter tubing, it delivers a secure, corrosion-resistant hold suited to mechanical, plumbing, and industrial piping installations. Manufactured in the United States.

This clamp is used in commercial and industrial piping systems where tubes, pipes, or hoses carrying fluids must be anchored to strut channel or structural support members. The 700 Series designation places it in a widely used family of strut-mount clamps. Plumbers, pipefitters, mechanical contractors, and electrical tradespeople use this type of hardware when routing copper, steel, or plastic tubing through walls, ceilings, and equipment rooms. The cushioned design suits installations where noise isolation or surface protection is a concern.

Key Features

• Fits 1-1/2 inch outside diameter pipe, tube, or hose
• Complete assembly includes steel clamp, bolt, locknut, and cushion insert
• GoldGalv standard finish provides corrosion resistance
• Cushion insert reduces vibration transmission and protects tubing surface
• Steel construction for structural rigidity in fluid conductor applications
• Made in the United States

Compatibility

Designed for use in Superstrut 700 Series pipe strap and clamp applications to secure pipes, tubes, and hoses with a 1-1/2 inch outside diameter in fluid conductor systems.

Installation Notes

Installation is typically performed by licensed plumbers, pipefitters, or mechanical contractors. Depressurize and drain the line before positioning the clamp to avoid movement during fastening. Mount to compatible strut channel using the included bolt and locknut, and tighten hardware per applicable IPC or IFGC support spacing requirements. Do not overtighten the locknut in a way that deforms the cushion or distorts the tubing wall.
