Product Description

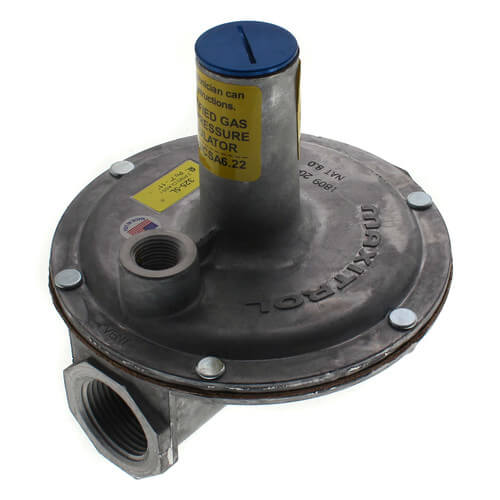

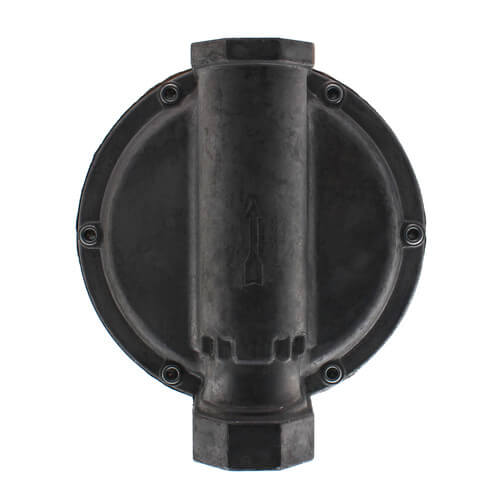

The Maxitrol 325-5L-1 is a gas pressure regulator designed for reliability and efficiency in various gas applications. Manufactured by Maxitrol, a leader in pressure regulator technology, this model ensures precise gas flow control over a wide range of demands.
- 1 inch NPT connection size allows for straightforward installation.
- Can handle up to 600,000 BTU/hr, suitable for both individual and multiple load applications.
- Incorporates a high leverage linkage assembly for enhanced performance.
Product Highlights
The Maxitrol 325-5L-1 lever acting gas regulator is certified for up to 2 psi inlet pressure and provides gas flow regulation between 7 to 11 WC. Its robust design is suitable for residential, commercial, and industrial use.
Product Information
Standard Information
-
Brand: Maxitrol
-
Model: 325-5L-1
-
Material: Aluminum
Technical Specifications
-
Connection Type: NPT
-
Max Capacity: 600,000 BTU/hr
-
Inlet Pressure: 2 psi
-
Outlet Pressure: 7-11 WC
-
Temperature Range: -40 to 205 degrees Fahrenheit
-
Certifications: ANSI Z21.18/CSA 6.3, CE, cCSAus
