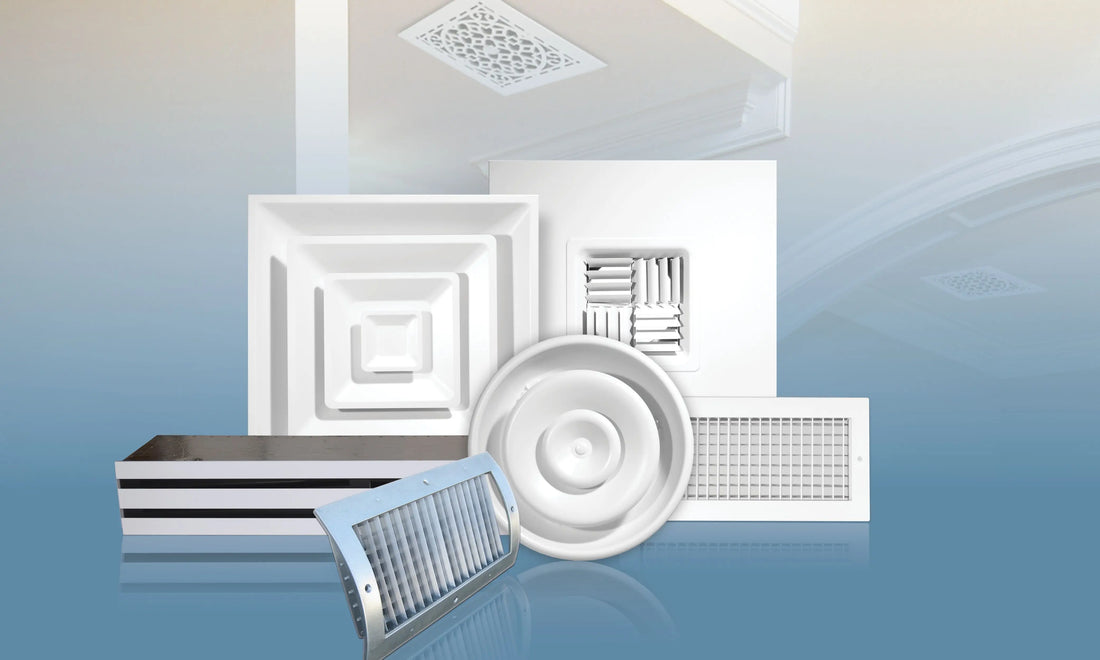

Understanding HVAC Grilles and Diffusers: Types and Applications

HVAC systems rely on more than heating and cooling units to function efficiently. The air distribution system is one of the most important yet often overlooked components. Grilles and diffusers are vital for managing airflow, enhancing comfort, and maintaining indoor air quality. They may seem similar, but they serve different purposes and come in many forms to suit various applications.

This guide breaks down the differences between HVAC grilles and diffusers, explores the common types available, and discusses where and how they are used in residential, commercial, and industrial settings.

What Are HVAC Grilles and Diffusers?

Understanding the basics of grilles and diffusers helps you make better decisions when selecting the right air distribution parts for your HVAC system.

HVAC Grilles

Grilles are coverings for air vents that allow air to pass through while protecting duct openings. They do not typically have moving parts, although some include dampers for manual airflow control. Grilles are used for both return and supply air, but are most commonly associated with return air systems.

HVAC Diffusers

Diffusers are designed to distribute supply air evenly into a space. Unlike grilles, they have internal vanes or louvers that direct air flow. This helps to prevent drafts and creates a more consistent room temperature. Diffusers are essential to supply air systems and are particularly useful in commercial and larger residential buildings.

Key Differences Between Grilles and Diffusers

Although they are part of the air distribution system, grilles and diffusers are built differently and serve unique roles.

• Function
  Grilles mainly act as protective covers for air returns or supplies. Diffusers are engineered to spread airflow evenly and reduce noise and drafts.

• Design
  Grilles usually feature a simple grid pattern, while diffusers often include a round or square plate with directional vanes to manage airflow patterns.

• Placement
  Grilles are installed in walls, ceilings, or floors, depending on the design of the duct system. Diffusers are typically ceiling-mounted for optimal air dispersion.

Types of HVAC Grilles

There are several types of grilles, each suited for specific applications. Selecting the right one depends on the space's airflow needs and architectural layout.

Return Air Grilles

These grilles are used to cover the return air openings. They come in different sizes and are often mounted on walls or ceilings. Some models include a filter slot to improve indoor air quality.

Supply Air Grilles

Although less common than diffusers for supply applications, supply grilles can be used when directional control is not as important. They are often found in smaller or older HVAC systems.

Eggcrate Grilles

Known for their open-cell design, eggcrate grilles allow for maximum airflow. They are ideal for return air and exhaust systems where unrestricted air movement is critical.

Bar Grilles

These feature a linear pattern of bars and offer a more modern aesthetic. They are commonly used in architectural applications where design is a priority.

Types of HVAC Diffusers

Diffusers come in a variety of styles, each offering unique advantages based on airflow requirements and building layout.

Ceiling Diffusers

These are the most widely used type of diffuser. Mounted in drop ceilings or drywall ceilings, they evenly distribute air throughout the room. Some models offer adjustable vanes to customize airflow direction.

Slot Diffusers

Slot diffusers are long, narrow units designed for architectural flexibility. They are often used in offices and commercial buildings where aesthetics and consistent airflow are essential.

Round Diffusers

Round diffusers offer 360-degree air distribution, making them ideal for open spaces like lobbies or retail environments. They are also easier to clean and maintain.

Floor Diffusers

These are less common but useful in specific applications such as raised floor systems in data centers or industrial spaces. They help distribute conditioned air from beneath the floor.

Applications for Grilles and Diffusers

Grilles and diffusers play a crucial role in the performance of HVAC systems across various building types. Selecting the right component for each environment ensures proper airflow, comfort, and optimal system efficiency.

Residential Settings

Grilles and diffusers should be selected in homes based on room size, ceiling height, and duct layout. Ceiling diffusers are ideal for central air systems, while return grilles with built-in filters help improve air quality.

Commercial Buildings

Office spaces, restaurants, and retail stores benefit from slot and ceiling diffusers for even distribution of conditioned air. Return grilles are usually placed in hallways or near ceilings for easy access and maintenance.

Industrial Facilities

Factories and warehouses require durable, high-capacity grilles and diffusers. Eggcrate and bar grilles are commonly used in these environments, as well as heavy-duty ceiling diffusers that can withstand higher air pressure.

Choosing the Right Material and Finish

Grilles and diffusers are available in various materials, including aluminum, steel, and plastic. The right choice depends on environmental conditions, aesthetics, and maintenance requirements.

• Aluminum
  Lightweight and corrosion-resistant, aluminum is ideal for ceiling installations and modern interiors.

• Steel
  Durable and strong, steel grilles and diffusers are best for industrial and high-traffic areas.

• Plastic
  Suitable for residential use where moisture and temperature fluctuations are minimal.

At Voomi Supply, You Can Find Quality HVAC Grilles and Diffusers

If you are looking for reliable and durable air distribution components, Voomi Supply offers a wide selection of HVAC grilles and diffusers. Whether you are outfitting a home system or managing a large commercial installation, our products are selected for quality, performance, and compatibility with a variety of systems.

Our online catalog makes it easy to find the right size, style, and finish to match your project's needs. With detailed product information and expert support, you can shop confidently for the parts that help your HVAC system run at its best.
