Mini Split Line Sets: What You Need to Know Before Installation

Installing a mini split system is an energy-efficient way to heat and cool your home. But one of the most critical components of a successful installation is the line set. These lines may seem simple, but they play a crucial role in the operation and performance of your system.

Understanding what a mini split line set is, the different types available, and how to install them correctly can save you time, money, and unnecessary frustration.

What is a Mini Split Line Set

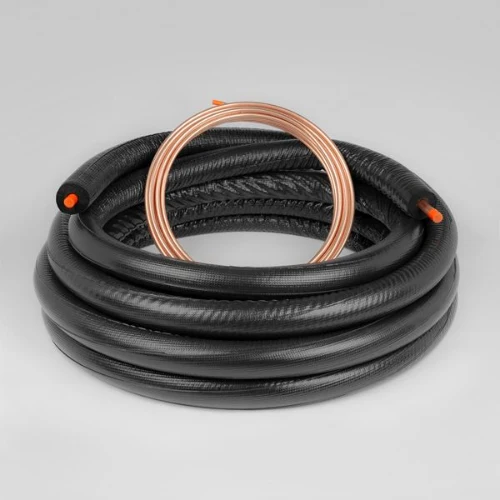

A mini split line set is a pair of copper refrigerant lines that connect the indoor air handler to the outdoor compressor unit. One line carries refrigerant in a gaseous state, while the other returns it in liquid form. These lines are insulated to maintain temperature and ensure the system operates efficiently.

In addition to the refrigerant lines, line sets often include communication wiring and a condensate drain line, all of which are critical to the operation of the mini split system. Choosing the right line set ensures the refrigerant flows properly and your system runs smoothly.

Types of Mini Split Line Sets

Mini split line sets come in different configurations depending on the type of mini split system you are installing. The two main types are single-zone and multi-zone line sets.

Single Zone Line Set

Single-zone line sets are designed to connect one indoor air handler to one outdoor condenser. They are typically used in smaller applications such as a single room or an office. These line sets are simpler to install and require fewer materials, making them a popular choice for homeowners.

They come in various lengths and diameters depending on the capacity of your unit and the distance between the indoor and outdoor units. Since single-zone setups are more straightforward, you’ll have more flexibility with routing and installation.

Multi-Zone Line Set

Multi-zone line sets are used for systems that connect multiple indoor units to a single outdoor compressor. These systems are ideal for larger homes or buildings where different rooms require separate temperature controls.

Installing a multi-zone line set can be more complex due to the need for branch boxes and multiple line paths. The line sets may vary in size and length for each indoor unit, and careful planning is required to ensure optimal refrigerant distribution and performance.

What to Consider During Line Set Installation

Before starting the installation, it's important to consider several factors that can impact the efficiency and longevity of your mini split system. Proper planning will help avoid common issues and improve performance.

Diameter

The diameter of the refrigerant lines must match the specifications of your mini split system. Using the wrong size can restrict refrigerant flow or cause leaks, which may damage the compressor or reduce efficiency. Always consult the manufacturer’s guidelines before choosing your line set.

Distance

The length of the line set should be appropriate for the distance between your indoor and outdoor units. Most systems have a maximum recommended line set length. Going beyond this can affect refrigerant pressure and cooling capacity. Use a tape measure to determine the most direct and feasible route.

Refrigerant

Different mini split systems use different types of refrigerants, such as R-410A or R-32. Your line set must be compatible with the refrigerant in your system. Some materials are more suited to specific refrigerants, so double-check before purchasing.

Best Practices When Installing Mini Split Line Sets

To ensure a successful and long-lasting installation, follow these best practices. They’ll help prevent common issues and maximize the efficiency of your system.

Use Proper Insulation

Insulation is key to preventing energy loss and condensation. Make sure both refrigerant lines are properly wrapped with high-quality insulation. Gaps or poor sealing can lead to inefficiency and water damage over time.

Avoid Sharp Bends

Try to route the lines with gradual curves rather than sharp bends. Tight turns can restrict refrigerant flow and place stress on the copper tubing, which may lead to leaks or ruptures. Use pipe benders where necessary.

Secure the Line Set

Support and fasten the line set securely along its route. This prevents sagging, vibration, and physical damage. Use brackets, clips, or cable ties at regular intervals to keep the lines in place and neatly arranged.

Perform a Pressure Test

Before charging the system, always conduct a pressure test to ensure there are no leaks in the line set. This step is essential for identifying issues early and preventing long-term damage to the compressor.

Follow Manufacturer Guidelines

Each mini split system has specific installation requirements. Following the manufacturer’s instructions ensures warranty compliance and optimal system performance. It also helps you avoid mistakes that could result in costly repairs.

Conclusion: Choose the Right Line Set at Voomi Supply

Choosing the right mini split line set is crucial to the performance and reliability of your HVAC system. Whether you're working on a single-zone or multi-zone setup, careful consideration of diameter, distance, and refrigerant compatibility is essential. And when it comes to sourcing high-quality line sets, look no further than Voomi Supply.

Voomi Supply offers a wide selection of durable, properly insulated, and refrigerant-compatible line sets for any installation scenario. Their products are designed for both professionals and DIYers, making your mini split project easier and more efficient. Don’t compromise on quality—choose Voomi Supply for a smooth and reliable installation.
