What’s Included in a Mini Split Installation Kit?

Mini split systems have become a go-to solution for efficient, zoned climate control. Whether you're a homeowner tackling a DIY HVAC project or an installer looking to streamline your setup, a mini split installation kit is essential. These kits are designed to provide most of the tools and materials you need to connect your indoor and outdoor units safely and efficiently.

But what exactly do these kits include, and why are they so important?

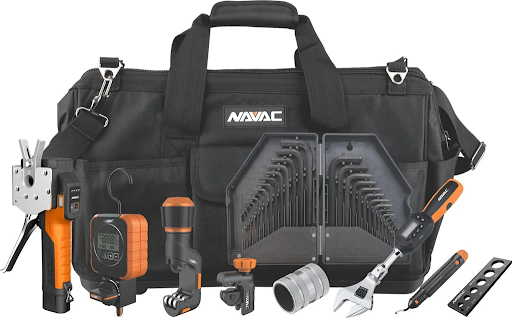

What You’ll Typically Find in a Mini Split Installation Kit

Below is a breakdown of the standard components found in most mini split installation kits and how each contributes to a successful installation.

Copper Line Sets

The copper line set is one of the most critical components in a mini split installation kit. It includes two lines: one for the refrigerant and one for the return. These lines connect the indoor evaporator unit to the outdoor condenser. The lines are usually pre-flared and insulated to prevent energy loss and protect against environmental factors.

Copper tubing ensures reliable refrigerant transfer, and proper insulation maintains efficiency by minimizing thermal loss. Most kits offer line sets in various lengths to suit different installation requirements, typically ranging from 15 to 50 feet.

Communication Wires

Another essential part of the kit is the communication cable. This multi-conductor wire connects the indoor and outdoor units, allowing them to exchange signals for synchronized operation. These wires are typically 14- or 16-gauge and rated for outdoor use to withstand various weather conditions.

A quality communication wire ensures a stable electrical connection and prevents miscommunication between units, which could otherwise lead to system malfunctions.

Drain Hose

Every mini split system needs a way to manage condensation. The drain hose in the kit helps remove the water produced during the cooling cycle. This hose connects to the indoor unit's drain pan and routes moisture safely outdoors or into a designated drainage area.

Kits often include a flexible PVC or rubber drain hose, which is easy to cut and adapt to your specific routing needs. Some premium kits also feature fittings or adaptors to secure the hose and prevent leaks.

Wall Sleeve and Cover Plates

A wall sleeve is used to pass the line set, drain hose, and wiring through a wall. This component helps seal the opening and protects the lines from sharp edges. Many kits include a sleeve along with a wall cap or cover plate for a clean, finished look both inside and outside the structure.

The wall sleeve also prevents pests and water from entering the building and adds an extra layer of insulation around the opening.

Condenser Mounting Pad or Bracket

Outdoor condenser units need to be installed on a stable surface to ensure long-term durability. Some kits include a condenser pad made of composite plastic or rubber. These pads provide a vibration-absorbing base that keeps the unit level and off the ground.

Other kits may include wall-mount brackets for situations where ground space is limited. These brackets are usually made of powder-coated steel and are adjustable for various unit sizes. Mounting brackets elevate the unit, protecting it from snow, debris, and water damage.

Line Set Cover Kits

To protect the copper line set and communication wires and maintain a neat appearance, most installation kits include a line set cover kit. These covers are usually made of durable PVC or ABS plastic and are UV-resistant to withstand long-term sun exposure.

Line set cover kits include straight sections, elbows, and end caps to allow for flexible routing. These covers are especially useful for installations where aesthetics matter, such as on the exterior of residential homes.

Insulation Wrap and Tape

Even though the line set comes with built-in insulation, many kits also include extra insulation wrap and sealing tape. This helps ensure that all fittings and joints are well protected from condensation and heat loss.

Properly sealing and insulating all parts of the system can significantly improve energy efficiency and reduce the risk of refrigerant leaks or freezing.

Installation Hardware

A complete mini split installation kit typically includes all the basic hardware you need, such as:

• Pipe clamps and brackets for securing the line set

• Screws and anchors for mounting indoor and outdoor units

• Rubber grommets for sealing wall penetrations

• Hose clamps and zip ties for organizing cables and hoses


Having all the hardware in one package saves time and prevents frustrating last-minute trips to the hardware store.

Vacuum Adapter or Service Port

Some kits also include a vacuum adapter or service port to help with system evacuation before the refrigerant is released. This is crucial for removing moisture and air from the lines, ensuring optimal performance and preventing compressor damage.

While not every kit includes these specialized tools, higher-end packages may offer them to assist DIYers in creating a professional-level setup.

Instruction Manual or Installation Guide

Finally, many kits come with a detailed installation manual or guide. This documentation helps users follow the correct sequence of steps, install components safely, and avoid common pitfalls. Even if you're hiring a professional installer, having the manual on hand ensures that all parts are used as intended.
