How to Choose the Right AC Drain Pan for Your System
If you’ve ever noticed water pooling around your air conditioning unit, chances are your condensate drain system isn’t doing its job properly. One essential component that helps manage this is the AC drain pan.
In this guide, we’ll break down what condensate is, how it forms, why it's normal, and how to handle it effectively by choosing the right AC drain pan for your HVAC system.
What is Condensate?
Condensate is the water that forms when humid air comes into contact with a cold surface. In HVAC systems, this occurs as warm indoor air flows over the cold evaporator coil. The moisture in the air condenses into water droplets, much like the water you see on a cold drink on a hot day.
In air conditioning, this byproduct of the cooling process must be properly collected and drained to prevent water damage and mold growth.
How Does Condensation Relate to Evaporation?
Condensation and evaporation are two sides of the same coin in the water cycle. Evaporation occurs when water transforms into vapor due to heat, while condensation is when that vapor cools and turns back into liquid.
In an HVAC system, air is cooled through the evaporator coil. As this coil absorbs heat, it causes the moisture in the warm air to condense. This natural process is essential to the cooling function of your AC system and explains why condensate is a regular part of HVAC operation.
Is it Normal for HVAC Systems to Produce Condensate?
Yes, it’s absolutely normal. In fact, the presence of condensate indicates your system is effectively removing humidity from the air. However, while condensate itself isn’t an issue, what matters is how it’s managed. If it’s not properly drained, it can lead to significant problems, including water damage, mold, and even system failure.
What are Condensate Drain Lines?
Condensate drain lines are pipes or tubes connected to your HVAC unit that carry away the moisture collected during the cooling process. They are essential for transporting the water from the evaporator coil to a safe location, typically outside or to a floor drain.
How Do These Work?
Here’s how the system functions:
-
As warm air passes over the evaporator coil, moisture condenses.
-
This water drips into the primary drain pan located underneath the coil.
-
From the drain pan, the water flows into the condensate drain line.
-
The line directs this water safely away from your system.
Some systems also include a secondary drain pan and an overflow shutoff switch as a backup in case the primary pan or drain line clogs.
Common Issues with Condensate Water in HVAC Systems
If your HVAC system isn’t handling condensate properly, it can result in a range of problems. Here are five of the most common issues:
Clogged Drain Lines
Debris, algae, and dirt can accumulate in the drain line, causing blockages. This prevents proper drainage, leading to water backing up and potentially overflowing into your home or damaging your unit.
Rusted or Cracked Drain Pans
Over time, metal pans can corrode, and plastic ones can crack. When this happens, water will leak out rather than being directed into the drain line, which can cause internal damage or mold growth.
Overflow Due to No Secondary Pan
Systems without a secondary drain pan are at higher risk of overflow if the primary pan fails. This backup plan serves as an important failsafe in preventing water damage.
Mold and Mildew Growth
When moisture is not effectively drained, it creates an ideal environment for mold and mildew to grow. This can lead to unpleasant odors, health issues, and reduced air quality.
Shutoff Switch Failures
Many modern HVAC systems have a float switch to shut off the system when water levels get too high. If this switch malfunctions, the system may continue operating even when water is overflowing, leading to greater damage.
How to Choose the Right AC Drain Pan for Your System
The right drain pan ensures your system can handle condensate efficiently and helps you avoid costly repairs. Here are the key factors to consider:
Measure the Dimensions of Your Unit
Before buying, measure your HVAC unit to ensure the drain pan fits properly underneath it. You want a pan that extends slightly beyond the base to catch all dripping water.
Choose the Right Material

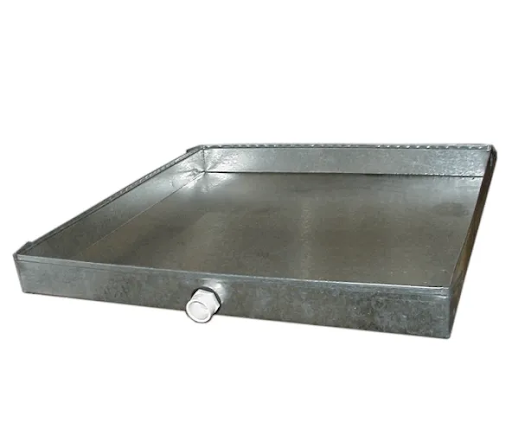

Drain pans are available in galvanized steel, stainless steel, and plastic. Stainless steel resists rust and lasts longer, while plastic is lightweight and corrosion-resistant. Your environment and budget will determine the best choice.
Opt for a Pan with a Drain Fitting
Some pans come with pre-installed drain fittings, making it easier to attach the drain line. This ensures a secure connection and better water flow, reducing the risk of leaks.
Consider a Pan with Built-in Sensors
Higher-end drain pans come with built-in float switches that detect water levels and can shut off your system if needed. This is a smart choice for added protection against overflows.
Verify Compliance and Compatibility
Make sure the pan you choose complies with local building codes and is compatible with your specific HVAC system. Some manufacturers may even recommend a specific model or size for best results.
Prevent Costly HVAC Issues with the Right Drain Pan
Choosing the right AC drain pan is a small step that can save you from major headaches. A properly sized, durable pan with good drainage can prevent water damage, improve your HVAC system’s efficiency, and extend its lifespan.
To browse a variety of high-quality AC drain pans, visit Voomi Supply’s collection and find the right solution for your system today.
