Condensate Pumps Explained: Types, Features & Maintenance Tips

Condensate pumps play a vital role in HVAC systems, efficiently removing excess water produced during the cooling or heating process. Without them, systems can quickly become inefficient or even damaged.

In this guide, we’ll break down the different types of condensate pumps, key features to look for, and essential maintenance tips to keep your system running smoothly.

What are Condensate Pumps

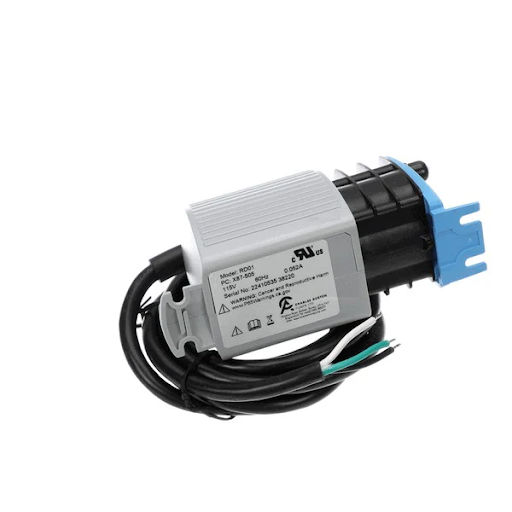

Condensate pumps are devices used in heating, ventilation, and air conditioning (HVAC) systems to remove excess moisture or water that forms as a byproduct of the cooling or heating process. These pumps are especially essential in systems like air conditioners, dehumidifiers, or high-efficiency furnaces, where condensation builds up during operation. The pump collects this water and pushes it out of the system, typically through a drainage line, to prevent water damage or inefficient system performance.

Condensate pumps come in various sizes and types, with specific features designed to meet the demands of different HVAC setups. They help ensure systems run smoothly and efficiently by preventing blockages, water damage, and potential malfunctions.

How do Condensate Pumps Work

Condensate pumps work by collecting the water or condensation produced by HVAC systems, then pumping it out of the unit and into a drainage system. Here's how the process generally works:

1. Collection of Condensate: As an HVAC system cools or heats the air, moisture from the air condenses into water. This water collects in a pan or tray located within the system.

2. Activation of the Pump: Once the water in the collection pan reaches a certain level, a float switch or sensor triggers the condensate pump to activate.

3. Pumping the Water: The pump activates, using either a piston or a diaphragm mechanism, to push the water through a discharge pipe. This is typically directed towards a drain, sink, or another safe outlet.

4. Automatic Operation: The pump operates automatically, removing the condensate without requiring manual intervention, ensuring continuous system performance without the risk of water buildup or overflow.


In this way, condensate pumps keep the HVAC system functioning efficiently by ensuring that excess moisture is promptly removed and preventing any water damage to the equipment or the surrounding area.

Main Types of Condensate Pumps

Condensate pumps come in different types, each suited for specific HVAC applications. The choice of pump can impact the efficiency and reliability of your system, depending on your needs. The two main types of condensate pumps are gravity-fed pumps and pump-assisted pumps. Here's a breakdown of each:

Gravity-fed Pumps

Gravity-fed condensate pumps rely on gravity to move water from the condensate tray to the designated drainage area. This type of pump does not require an electric motor or other moving parts to function. Instead, it uses the natural slope of the drainpipe to allow water to flow out. Gravity-fed systems are typically found in installations where the water can flow easily downhill, making them a cost-effective and low-maintenance option.

Pump-assisted Pumps

Pump-assisted condensate pumps, on the other hand, use an electric motor to actively pump the water out of the system. These pumps are ideal for setups where gravity alone isn’t sufficient to move the water, such as when the condensate needs to be pumped upward or over a long distance to a drain. Pump-assisted systems are commonly used in more complex HVAC systems and require regular maintenance to ensure optimal performance.

Components of a Condensate Pump

Understanding the key components of a condensate pump can help you maintain and troubleshoot your system. Each part plays a crucial role in ensuring efficient water removal from your HVAC unit. Here are the main components you’ll typically find in a condensate pump:

• Pump Unit: The core component of the system is the pump unit, which uses a motor or diaphragm to move the condensate water from the collection tank to the discharge line actively.

• Collection Tank: This is where the condensate water is collected before being pumped out. It sits beneath the HVAC system to catch the moisture that drips down.

• Float Switch: The float switch detects the water level in the collection tank. When the water rises to a certain level, the float triggers the pump to start working and expel the water.

• Discharge Line: This is the pipe through which the water is pumped out of the condensate pump and away from the HVAC system. It usually directs the water to a drain or another safe outlet.

• Check Valve: A check valve ensures that the water doesn’t flow back into the pump after it has been expelled, maintaining proper drainage and preventing contamination.


These components work together to ensure that your condensate pump operates effectively and keeps your HVAC system free from excess moisture buildup.

Maintenance Tips for Condensate Pumps

Proper maintenance of your condensate pump is essential for ensuring its longevity and preventing issues like water buildup or system malfunctions. By regularly inspecting and maintaining key components, you can keep your HVAC system running smoothly. Here are some important maintenance tips to follow:

1. Clean the Collection Tank Regularly

Over time, debris or algae can build up in the collection tank, potentially clogging the system. Regular cleaning will prevent blockages and ensure efficient water flow.

• Turn off the system before cleaning to avoid any electrical hazards.

• Remove debris from the collection tank and clean the interior with a mild detergent.

• Rinse thoroughly and ensure the tank is dry before reassembling to prevent mold growth.

2. Inspect and Test the Float Switch

The float switch controls when the pump activates. A malfunctioning float switch can prevent the system from turning on or off properly, leading to water overflow or pump failure.

• Check for debris around the float switch that may prevent it from moving freely.

• Test the float switch by manually lifting the float and observing whether the pump activates.

• Replace the float switch if it is damaged or unresponsive to ensure the system works correctly.

3. Check the Discharge Line for Blockages

A blocked discharge line can cause water to back up into the system, potentially damaging the pump or HVAC unit. Regular checks can help prevent these issues.

• Inspect the discharge line for any visible signs of blockages, such as algae or dirt buildup.

• Clear any blockages with a pipe cleaner or compressed air to ensure smooth water flow.

• Ensure the proper slope of the discharge line is maintained to facilitate gravity drainage where possible.

4. Test the Pump’s Performance

Regular testing of the pump's functionality can help identify potential issues before they cause problems, such as inadequate water removal.

• Manually activate the pump to check if it starts and runs smoothly.

• Monitor the pump’s sound to ensure it is operating quietly without any unusual noises, which could indicate a malfunction.

• Check the water flow to confirm that the pump is moving the water effectively and there are no leaks.
