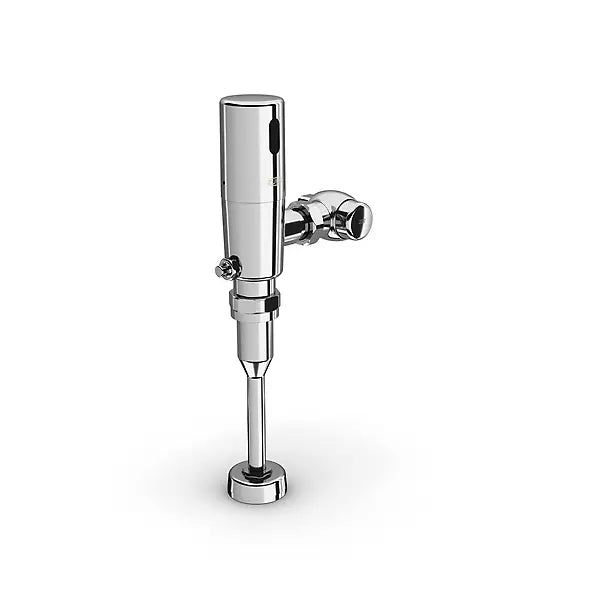

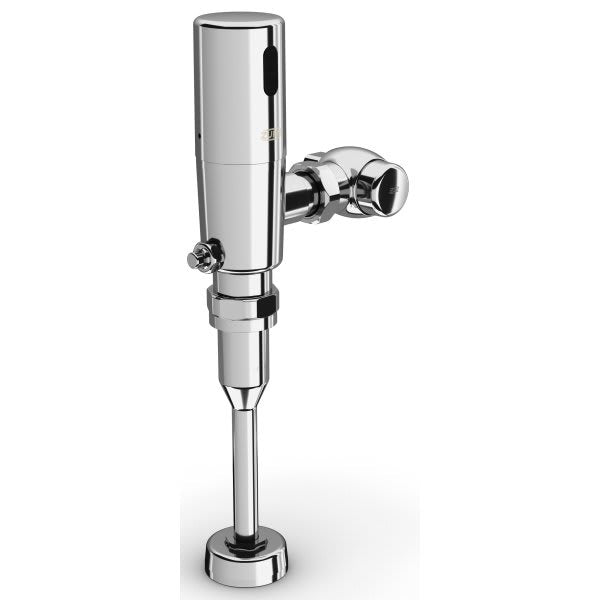

Zurn ZTR6203-QRT EcoVantage® ZTR Exposed Sensor Piston Flush Valve 0.25 GPF

Product Description

The ZURN ZTR6203-QRT EcoVantage® ZTR Exposed Sensor Flush Valve saves water without sacrificing power and precision. The battery-powered sensor accurately detects the user for hands-free urinal operation. The valve features a streamlined, piston-type design with clog-resistant components. It is the perfect water-saving solution for any commercial retrofit or new construction project.

• Conserves water and saves money with 0.25 gpf
• Reliable, battery-powered sensor with 3-year battery life
• Standard 11-1/2” rough-in and ¾” top spud

Product Highlights

The Zurn EcoVantage® ZTR Exposed Sensor Flush Valve is WaterSense approved and ADA compliant. Its GO BLUE® seals and gaskets stand up to chloramine and other chemicals, lasting 10x longer than competitors.

Product Information

Standard Information

• Brand: ZURN
• Manufacturer Part Number: ZTR6203-QRT
• Country of Origin: United States

Technical Specifications

• Width: 8.75
• Height: 7.000
• Length: 4.25
• Material: Metal
• Power Type: Battery
• WaterSense: Yes
• FinishColor: Polished Chrome
• Finish_Name: Polished Chrome
• ADA_Compliant: Yes
• ASME_Standard: A112.1037
• ASSE_Standard: 1037
• CSA_Standards: B125.37
• Connection_Size: 0.75"
• Connection_Type: NPT
• Gallons_per_Flush: 0.25 gpf
• Installation_Type: Vertical
• Exposed_or_Concealed: Exposed
• Commercial_or_Residential: Primarily Commercial
• Flush Mode [Specifications]: Single Flush
• Inlet Size [Specifications]: 3/4 in IPS
• Battery Life [Specifications]: 3 yr
• Fixture Type [Specifications]: Urinal
• Sensor Range [Specifications]: 12 in to 60 in
• Valve Design [Specifications]: Sensor
• Spud Coupling [Specifications]: 3/4 in
• Pressure Range [Specifications]: 35 to 80 psi
• Brand and Series [Specifications]: Zurn
• Basic Power Source [Specifications]: Battery
• Fixture Connection [Specifications]: Top Spud
• Connection Location [Specifications]: Top
• Model #: ZTR6203-QRT
• Manufacturer Part #: ZTR6203-QRT
• UPC Code: 670240959873
• Sensor Operated: Yes
• Toilet/Urinal: Urinal
• Vacuum Breaker Length: 9"
• Spud Size: 1-1/2"
• Brand Compatibility: Zurn
• Color: Silver
• Commercial/Residential: Commercial/Residential
• Finish: Chrome
• For Use With: Urinals
• Package Quantity: 1
• Toilet and Urinal Part Type: Flush Valve
• Product Height: 11.5 in.
• Certifications & Standards: ADA Compliant, WaterSense Certified
• Valve Design: Piston Operated
• Pressure Rating: 35 to 80 psi
• Rough-In Size: 11-1/2 in
• Type: Exposed
