Product Description

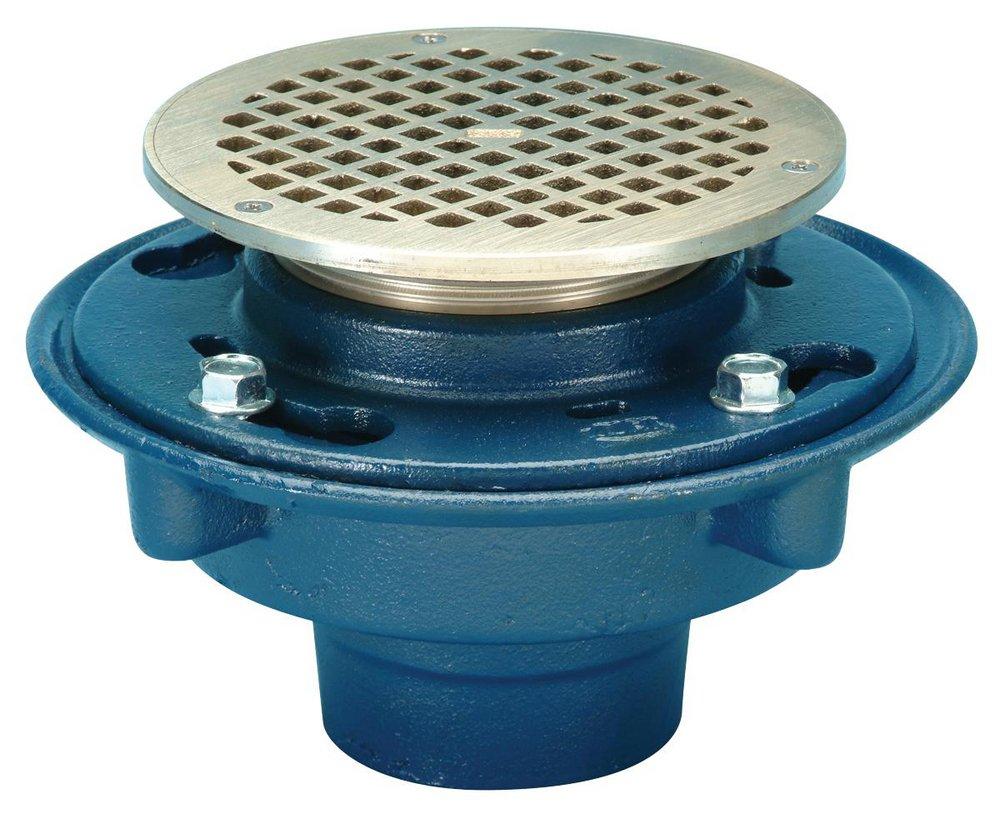

The Zurn ZN415-2NH-5B-P is a two-inch no hub cast iron floor drain designed for commercial and institutional buildings. This floor drain features a Dura Coated cast iron body with a polished nickel bronze top. It is engineered to facilitate installation and rework, allowing for savings in time and labor costs. This drain includes a round adjustable Type B light-duty strainer that prevents debris from clogging the system.
- Designed for easy installation and adjustments
- Includes trap primer connection
- High load capacity of 3,000 lbs
Product Highlights
Constructed to withstand tough environments, the drain is suitable for a variety of industrial applications.
Product Information
Standard Information
-
Brand: Zurn
-
MPN: ZN415-2NH-5B-P
Technical Specifications
-
Application: For Commercial and Institutional Building
-
Dimensions: Eight and three-eighths inches diameter by six and one-fourth inches height
-
Drain Material: Cast Iron
-
Finish: Dura Coated
-
Grid Material: Polished Nickel Bronze
-
Grid Size: Five inches diameter
-
Includes: Bottom outlet, polished nickel bronze top, round adjustable Type-B light-duty strainer with heel-proof square opening grate, trap-primer connection, combination invertible membrane clamp and adjustable collar with seepage slots
-
Mfg Standards/Approvals: ASME A112.6.3 | ASTM A48 Class 25
-
Outlet Size: Two inches
-
Series: Z415B
-
Warranty: One year limited
