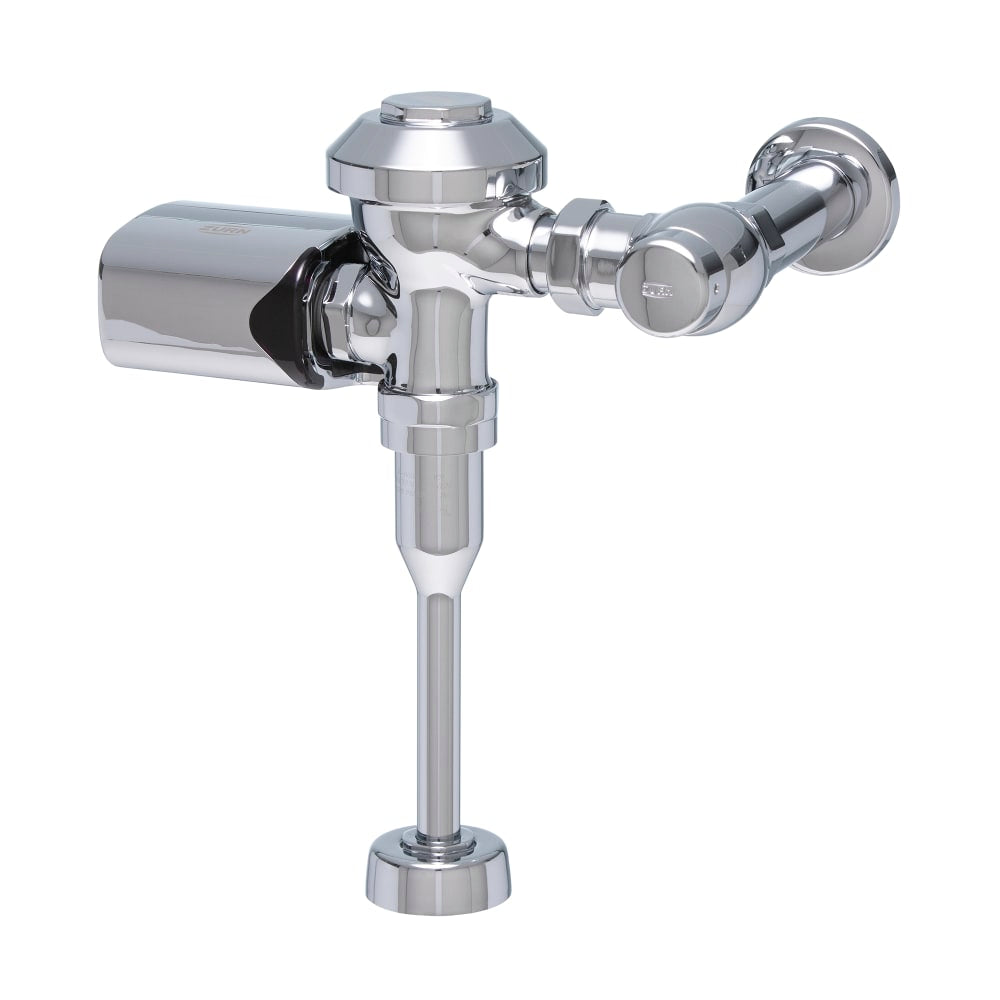

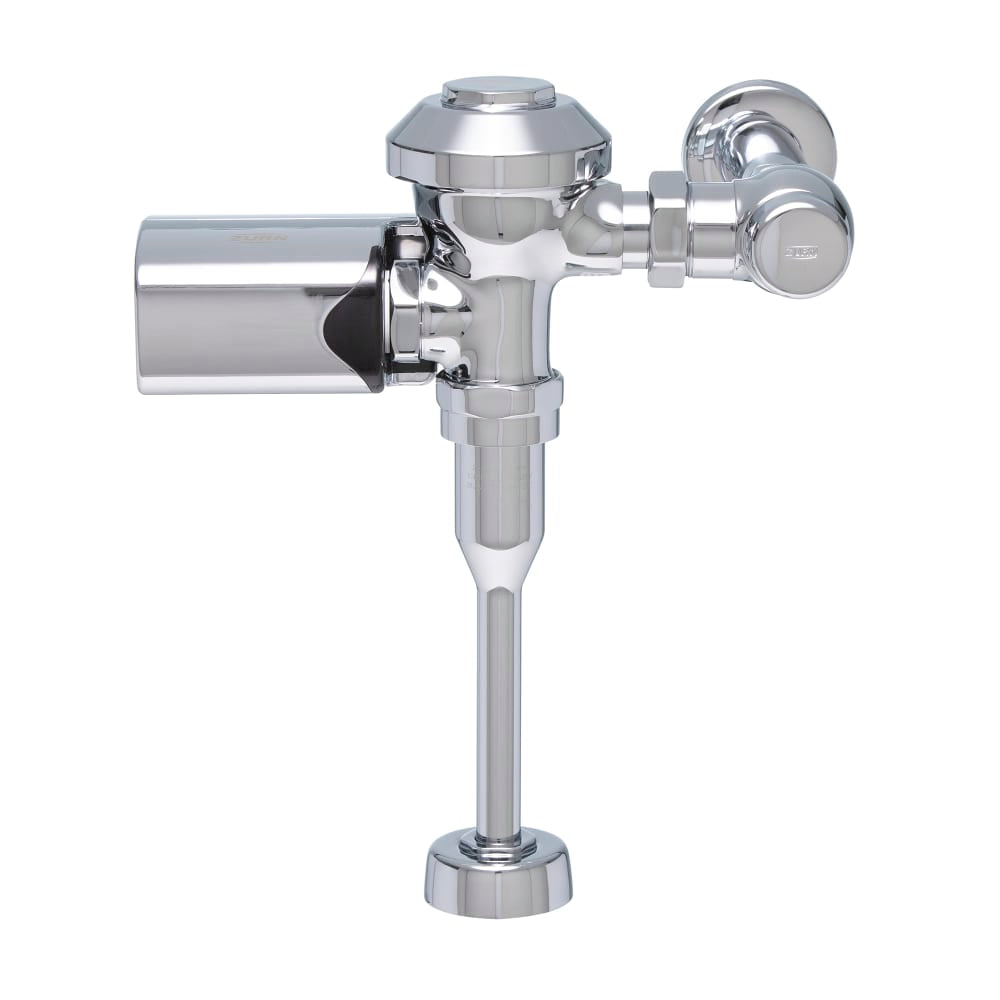

Zurn ZER6003AV-ULF-SM AquaVantage Exposed Sensor Diaphragm Urinal Flush Valve 0.125 gpf

Product Description

The ZURN ZER6003AV-ULF-SM AquaVantage exposed sensor flush valve is engineered for efficient and reliable performance. Its battery-powered sensor accurately detects the user for hands-free urinal operation. This diaphragm-type flush valve features a clog-resistant, triple filtered bypass and chloramine-resistant internal seals to minimize maintenance. It is an ideal water-saving solution for commercial retrofit or new construction projects.

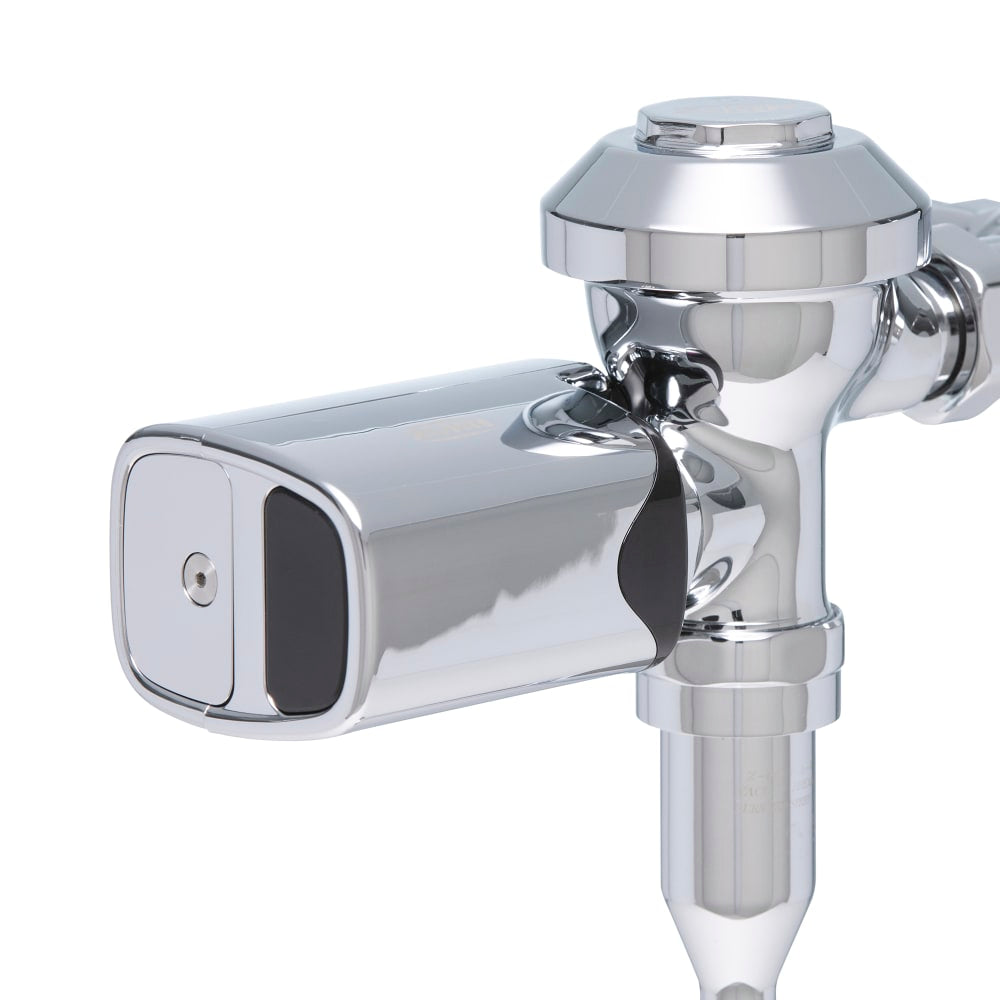

• Battery-powered sensor supports a hygienic environment by eliminating touchpoints.
• Dual seal diaphragm features a clog-resistant, triple filtered by-pass to ensure smooth water flow.

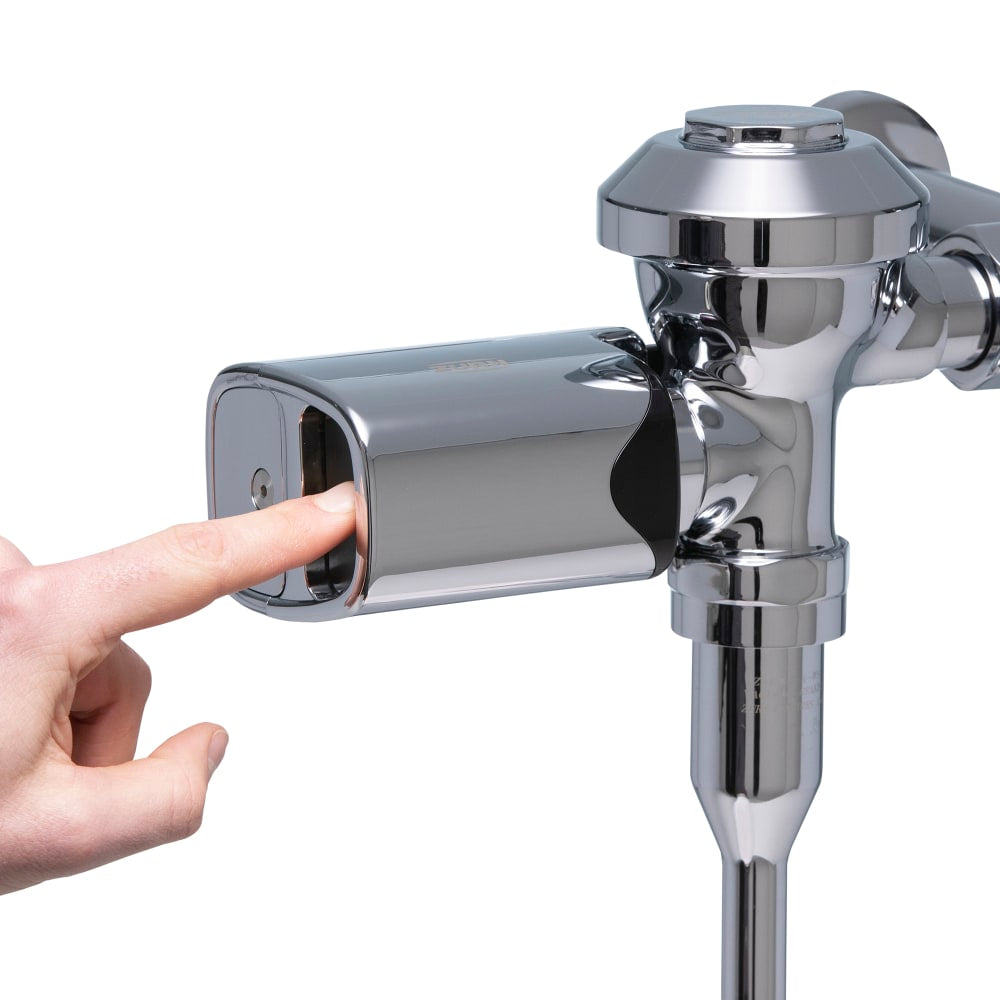

• True mechanical manual override button delivers on-demand flushing.

Product Highlights

The Zurn AquaVantage ZER6003AV-SM is a water-saving solution for any commercial retrofit or new construction project. The 0.125 gpf urinal flush volume provides maximum water conservation and financial savings.

Product Information

Standard Information

• Brand: ZURN
• Manufacturer Part Number: ZER6003AV-ULF-SM

Technical Specifications

• Width: 11
• Height: 14
• Length: 4
• Material: ABS;Brass;Cast Metal;EPDM Rubber;Metal;Plastic;Rubber;Stainless Steel;Zinc;Acetal;Polymer
• Power Type: Battery
• WaterSense: Yes
• Toilet Type: Flush Valve
• ASME Standard: A112.1037
• ASSE Standard: 1037
• CSA Standards: B125.37
• Spud Location: Top
• Connection Type: NPT
• Gallons per Flush: 0.125
• Installation Type: Vertical
• Exposed or Concealed: Exposed
• Commercial or Residential: Primarily Commercial
• Manufacturer: Zurn
• Model #: ZER6003AV-ULF-SM
• UPC Code: 889934253054
• Toilet/Urinal: Urinal
• Vacuum Breaker Length: 9"
• Spud Size: 3/4"
• Sensor Operated: Yes
• Finish: Chrome
• For Use With: Urinals
• Power: Batteries
• Inlet Size: 1 in IPS
• Pressure Rating: 20 to 125 psi
• Rough-In Size: 11-1/2 in
• Valve Design: Triple Filter By-Pass Diaphragm
