Zurn zer6000-het.0002 Sensor Flush Valve 1.28 Gpf

Product Description

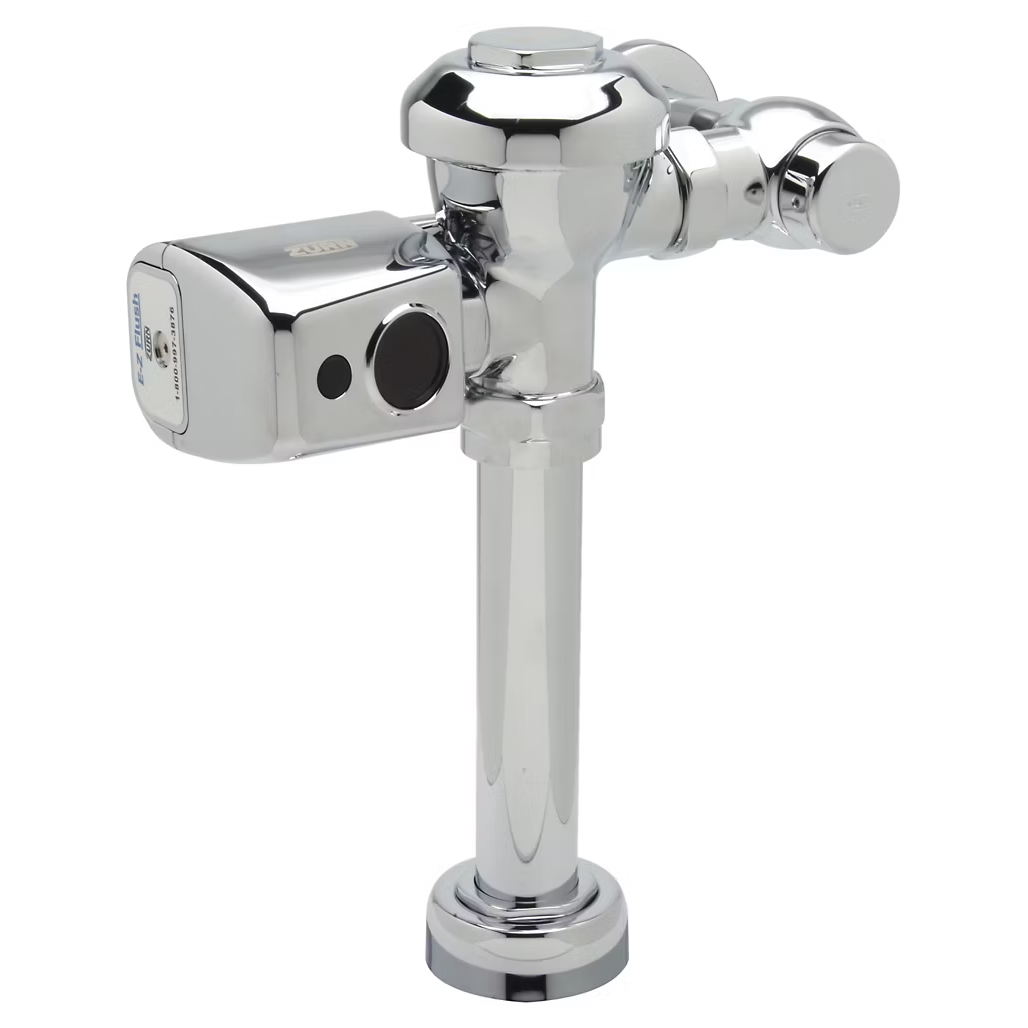

The ZURN zer6000-het.0002 is a battery-powered, sensor-operated flush valve designed for commercial water closets. Part of the AquaSense exposed series, it delivers a high-efficiency 1.28 GPF flush rate while running on a 6VDC motor actuator — no hard-wired power supply required. The valve uses a quiet diaphragm-type mechanism with a clog-resistant bypass to maintain reliable performance in high-traffic restroom environments. Installation and service are handled by licensed plumbers familiar with commercial flush valve systems.

This flush valve is suited for commercial and institutional restroom applications where water conservation and low-maintenance operation are priorities. The 10-degree angled infrared sensor automatically detects user presence and triggers the flush cycle, reducing touchpoints and supporting hygiene standards in public facilities. Its exposed-type body allows straightforward access during service calls without requiring concealed rough-in modifications.

Key Features

• High-efficiency 1.28 GPF flush rate meets HET standards for water conservation
• Battery-powered 6VDC motor actuator eliminates need for hard-wired electrical connection
• Automatic infrared sensor with 10-degree angled design for reliable user detection
• Quiet diaphragm-type valve mechanism minimizes operating noise in occupied spaces
• Clog-resistant bypass design supports consistent flush performance under heavy use
• Exposed-body configuration simplifies access for routine maintenance and service

Compatibility

Designed as an OEM-style sensor flush valve for commercial water closet applications requiring an exposed, battery-powered, high-efficiency flush valve installation.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and IPC requirements. Shut off the water supply to the fixture before removing any existing flush valve components. Battery replacement and sensor adjustments should be performed with the valve isolated from the supply line where required by the manufacturer. Do not overtighten the coupling nut or spud connections, as diaphragm-type valves are sensitive to improper seating.

Technical Specifications

• Flush Volume: 1.28 GPF
• Power Source: Battery-powered 6VDC motor actuator
• Sensor Technology: Automatic infrared sensor, 10-degree angled design
• Valve Mechanism: Quiet diaphragm-type with clog-resistant bypass
• Valve Body Style: Exposed

Standard Information

• Brand: ZURN
• Manufacturer Part Number: zer6000-het.0002
