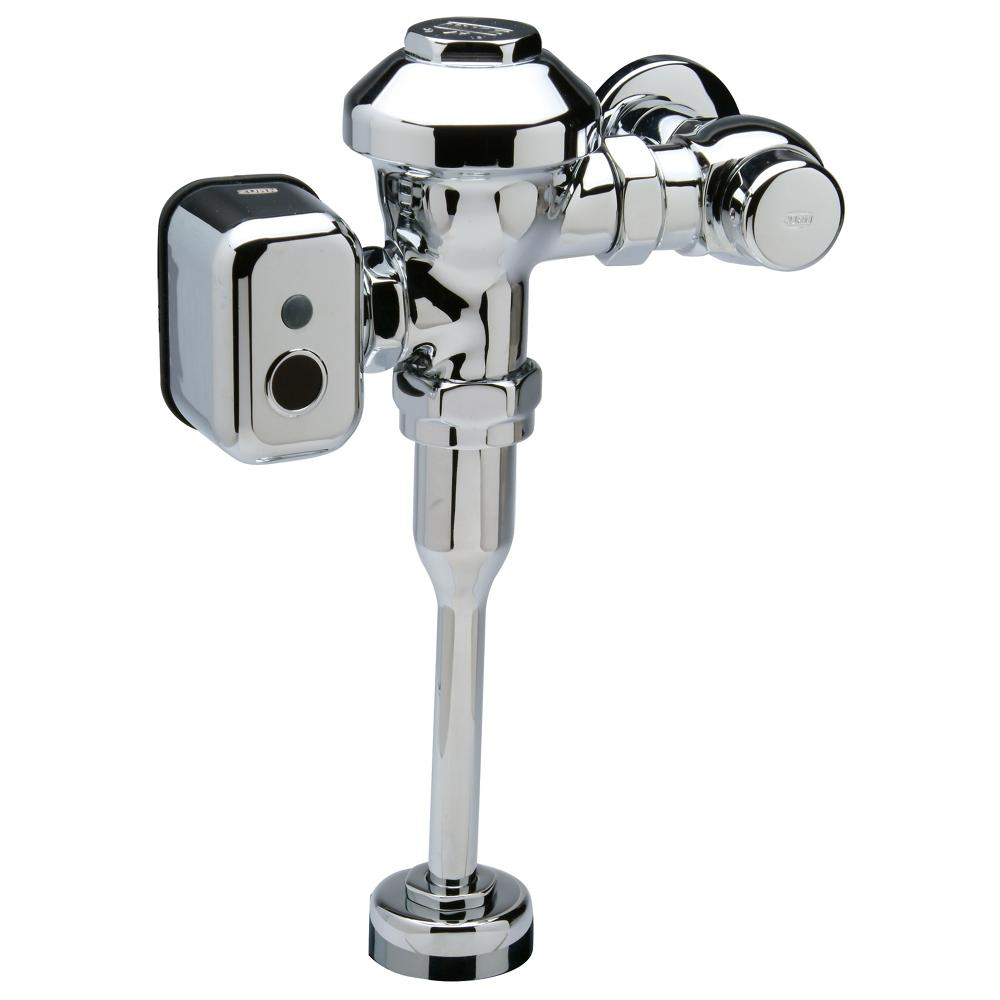

Zurn ZEMS6003PLULFIS Sensor Flush Valve 0.125 Gpf Urinal

Product Description

The ZURN ZEMS6003PLULFIS is an exposed sensor hardwired diaphragm flush valve designed for commercial urinal applications. Part of the AquaFlush Plus ZEMS product line, this valve delivers ultra-low-flush performance at 0.125 gallons per flush (GPF), making it well suited for water conservation mandates in commercial and institutional facilities. It connects via a 3/4 inch top spud and ships in a chrome finish. Licensed plumbers and commercial plumbing contractors are the primary installers for this type of hardwired sensor valve.

This flush valve is intended for exposed-mount urinal installations in commercial settings such as office buildings, schools, stadiums, and other high-traffic facilities. The hardwired sensor design eliminates battery replacement, reducing long-term maintenance burden. The 0.125 GPF flow rate supports compliance with stringent water efficiency codes and green building standards applicable to urinal fixtures in new construction and retrofit projects.

Key Features

• Ultra-low-flush rating of 0.125 GPF for maximum water conservation
• Exposed sensor, hardwired power supply eliminates battery maintenance
• Diaphragm-style valve mechanism for reliable, consistent flush cycles
• 3/4 inch top spud connection for standard commercial urinal rough-in
• Chrome finish suitable for exposed commercial restroom installations

Compatibility

Designed as an OEM-style exposed sensor hardwired flush valve for commercial urinal fixtures requiring a 3/4 inch top spud connection and a 0.125 GPF flow rate.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and relieve line pressure before beginning any valve work. Hardwired sensor models require connection to a dedicated low-voltage power supply by a qualified electrician per applicable NEC requirements. Do not overtighten the spud coupling, as this may damage the valve body or urinal inlet.

Technical Specifications

• Flush Rate: 0.125 GPF
• Spud Size: 3/4 inch top spud
• Valve Type: Diaphragm
• Sensor Type: Exposed hardwired
• Finish: Chrome
• Application: Urinal
• UPC: 670240445987

Standard Information

• Brand: ZURN
• Manufacturer Part Number: ZEMS6003PLULFIS
