Zurn Z8804-XL-LRLK-PC Stnd Angl Stp

Product Description

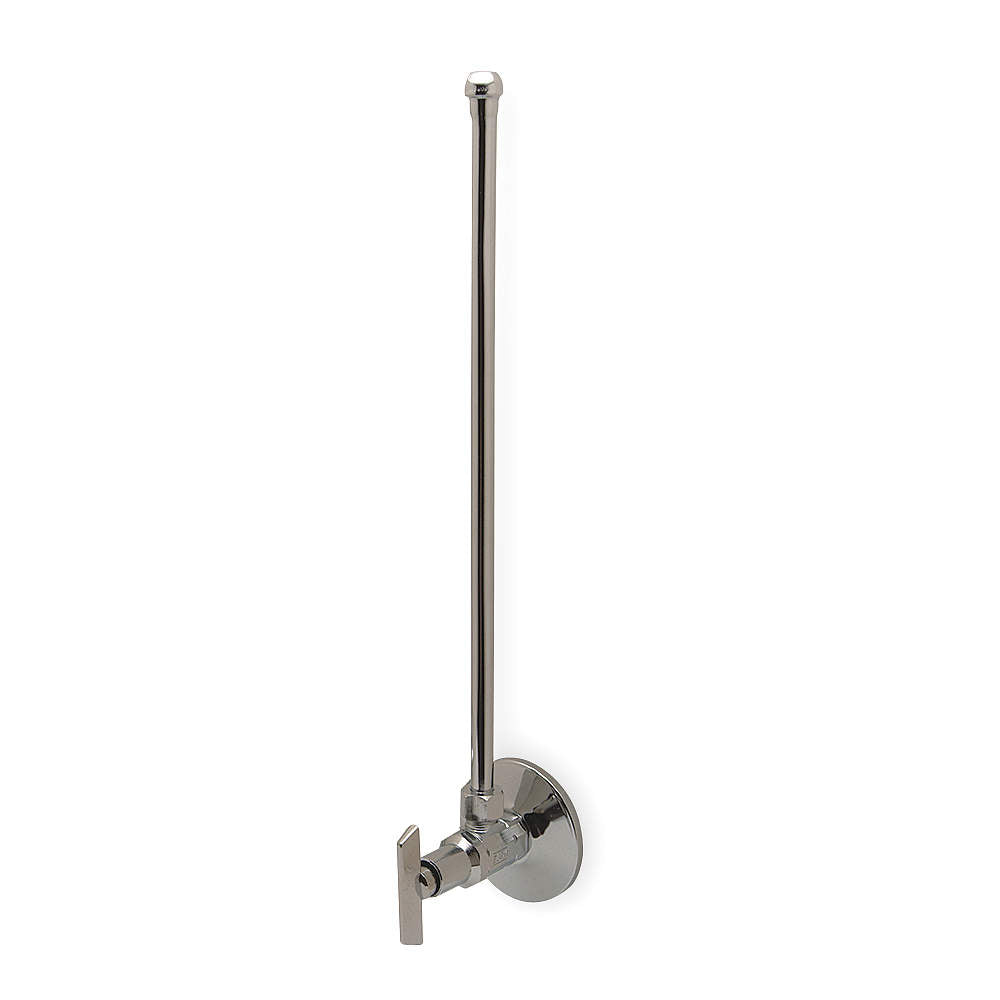

The ZURN Z8804-XL-LRLK-PC is a standard angle stop. Constructed of chrome-plated, lead-free materials, it features 12-inch flexible copper lavatory risers, steel flanges, and loose keys. This angle stop fits most standard lavatories with 1/2" NOM and 3/8" OD compression fittings.

• Two Zurn chrome plated, solid brass, pipe to compression angle stops with chrome plated steel flange.
• Connection type: 1/2 NOM x 3/8 OD
• Pair of Control Stops Loose Key with Copper Risers Supply Kit

Product Highlights

Zurn's Z8804-XL-LRLK-PC angle stops feature 12-inch flexible copper lavatory risers, steel flanges, and loose keys. For genuine, reliable parts trust Zurn.

Product Information

Standard Information

• Brand: ZURN
• Manufacturer Part Number: Z8804-XL-LRLK-PC
• Country of Origin: TW

Technical Specifications

• MPN: Z8804-XL-LRLK-PC
• Brand: Zurn
• Connection type: 1/2 NOM x 3/8 OD
• Width: 2.5
• Height: 2.5
• Length: 2 7/8"
• Unit_Width: 2.5
• ASME_Standard: A112.18.1
• CSA_Standards: B125.1
• Commercial_or_Residential: Primarily Commercial
• Kully Item #: 163000
• Manufacturer: Zurn
• Model #: Z8804-XL-LRLK-PC
• Manufacturer Part #: Z8804-XL-LRLK-PC
• UPC Code: 670240385733
• Size: 3/8 in
• Material: Brass
• Item dimensions L x W x H: 13.5 x 2.5 x 2.5 inches
• Connector Type: Flange
• Exterior Finish: Brass
• Thread Type: NPT
• Number of Pieces: 5
• Item: Closet Supply Stop
• Application: Toilet
• Body Material: Brass
• Body Style: Angle
• Connection - Side 2: 3/8"
• Connection Gender - Side 3: Not Applicable
• Connection Gender/type - Side 1: Compression
• Connection Gender/type - Side 2: Compression
• Connection Size - Side 1: 1/2"
• Connection Size - Side 2: 3/8"
• Connection Type - Side 2: Compression
• Connection Type - Side 3: Not Applicable
• Connection Type-side 1: Compression
• Connection-side 1: 1/2"
• Connection-side 1 Type: Compression
• Features: Lead Free
• Finish: Chrome Plated
• Handle Material: Brass
• Handle Operation: 1/4 Turn
• Includes: Copper Riser Supply Kit, Loose Key
• Inlet Size: 1/2"
• Inlet Type: CTS
• Inner Core: Brass
• Inner Core Material: Brass
• Max. Media Temperature: 180°F
• Max. Operating Pressure: 125 psi
• Max. Working Pressure: 125 psi
• Media Temp. Range: 40°F to 180°F
• Min. Media Temperature: 40°F
• Nut Material: Brass
• Operating Temp.: +40° to +180°
• Outlet Size: 3/8"
• Outlet Type: CTS
• Outside Dia.: 3/8"
• Pipe Dia.: 3/8"
• Stem Material: Brass
• Supply Stop Inlet Size: 1/2"
• Supply Stop Inlet Type: CTS
• Supply Stop Outlet Size: 3/8"
• Supply Stop Outlet Type: CTS
• Valve Body Material: Chrome Plated Brass
• Valve Design: Angle
• Valve Series: Z8804-XL Series
• Water Connector Inlet Size: 1/2"
• Water Connector Inlet Type: CTS
• standard: A112.19.2, A112.19.5, A112.19.6, ASSE 101, ASSE 1037, B125.2, CSA 125.3, CSA B125.1, IAPMO/UPC/CUPC
