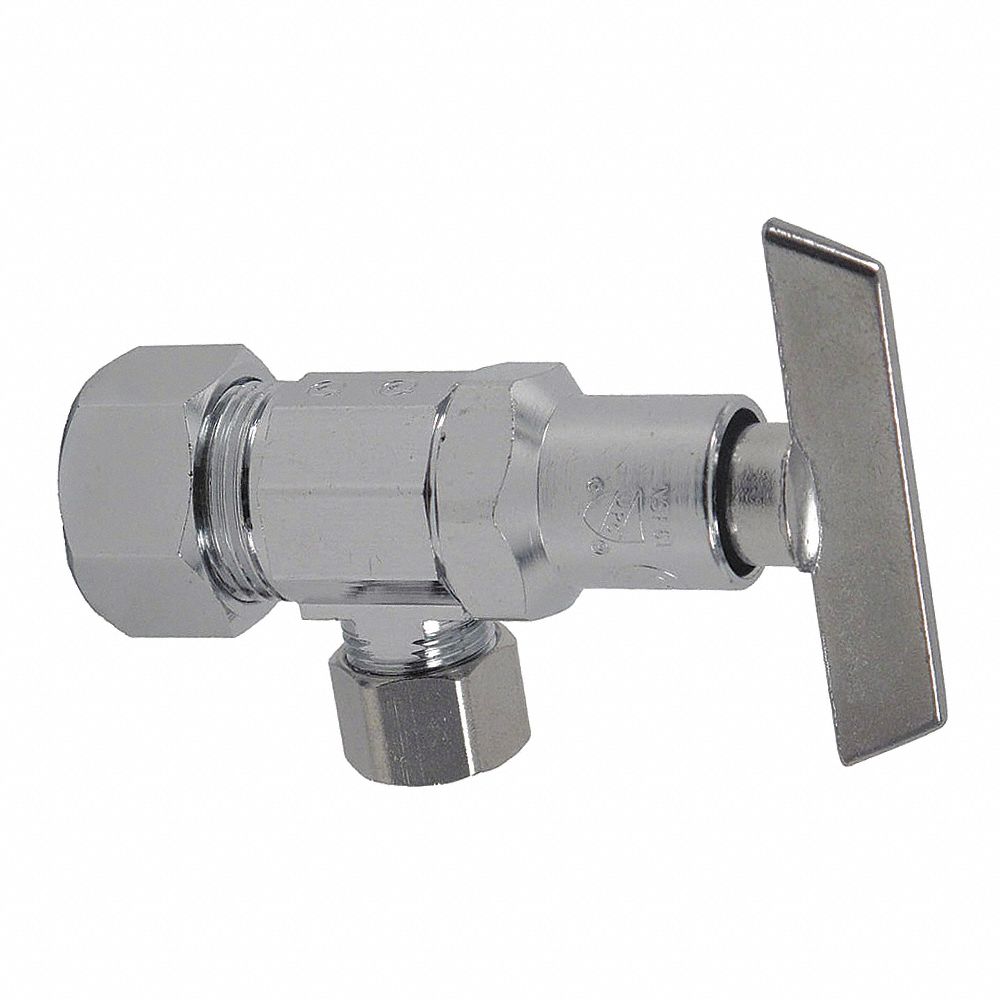

Zurn Z8800-XL-LK-PC Standard Line Angle Stop with Loose Key 3/8 x 3/8 in

Product Description

The ZURN Z8800-XL-LK-PC standard line angle stop features a chrome-plated solid brass construction with a loose key. This angle stop has a 3/8 x 3/8 inch connection size and a threaded x compression connection type. It is designed for lavatory, faucet, and water closet supply applications.

• Constructed from low-lead compliant solid brass.
• Features a threaded inlet and compression outlet.
• Compliant with AB1953, IAPMO listed, and NSF 61 certified standards.

Product Highlights

This angle stop valve is ideal for controlling water flow to plumbing fixtures. It features a durable brass body and includes a loose key for manual operation.

Product Information

Standard Information

• Brand: ZURN
• Manufacturer Part Number: Z8800-XL-LK-PC
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Connection Size: 3/8 x 3/8 in
• Connection Type: Threaded x Compression
• Finish: Chrome-Plated
• Item Name: Standard Line Angle Stop with Loose Key
• Material: Solid Brass
• Pressure Rating: 200 psi
• Includes: Loose Key
• Standards: IAPMO, NSF61
• Compliance: AB1953
• Inlet Size: 3/8"
• Inlet Type: Threaded
• Outlet Size: 3/8"
• Outlet Type: Compression
• Temp. Range: +33°F to +100°F
• Body Material: Brass
• Max. Pressure: 200 psi
• Valve Design: Angle
• Application: Lavatory, Faucet, Water Closet Supply
• Body Style: Angle
• Connection - Side 1: 3/8"
• Connection - Side 2: 3/8"
• Connection Gender - Side 2: Compression
• Connection Size - Side 1: 3/8"
• Connection Size - Side 2: 3/8"
• Connection Type - Side 2: Compression
• Connection Type-side 1: IPS
• Features: Full Turn
• Handle Material: Brass
• Handle Operation: 1/4 Turn
• Inner Core: Brass
• Max. Media Temperature: 100°F
• Max. Operating Pressure: 200 psi
• Max. Working Pressure: 200 psi
• Media Temp. Range: 33°F to 100°F
• Media Temperature Range: 33°F to 100°F
• Min. Media Temperature: 33°F
• Nut Material: Brass
• Operating Temp.: +33° to +100°
• Stem Material: Brass
• Valve Body Material: Chrome Plated Brass
• Valve Series: Z8800-XL Series
• standard: A112.19.2, A112.19.5, A112.19.6, ASSE 101, ASSE 1037, B125.2, CSA 125.3, CSA B125.1, IAPMO/UPC/CUPC
