Zurn Z867R0-XL AquaSpec 8 Metering Faucet 8 Inch Widespread (G61754)

Product Description

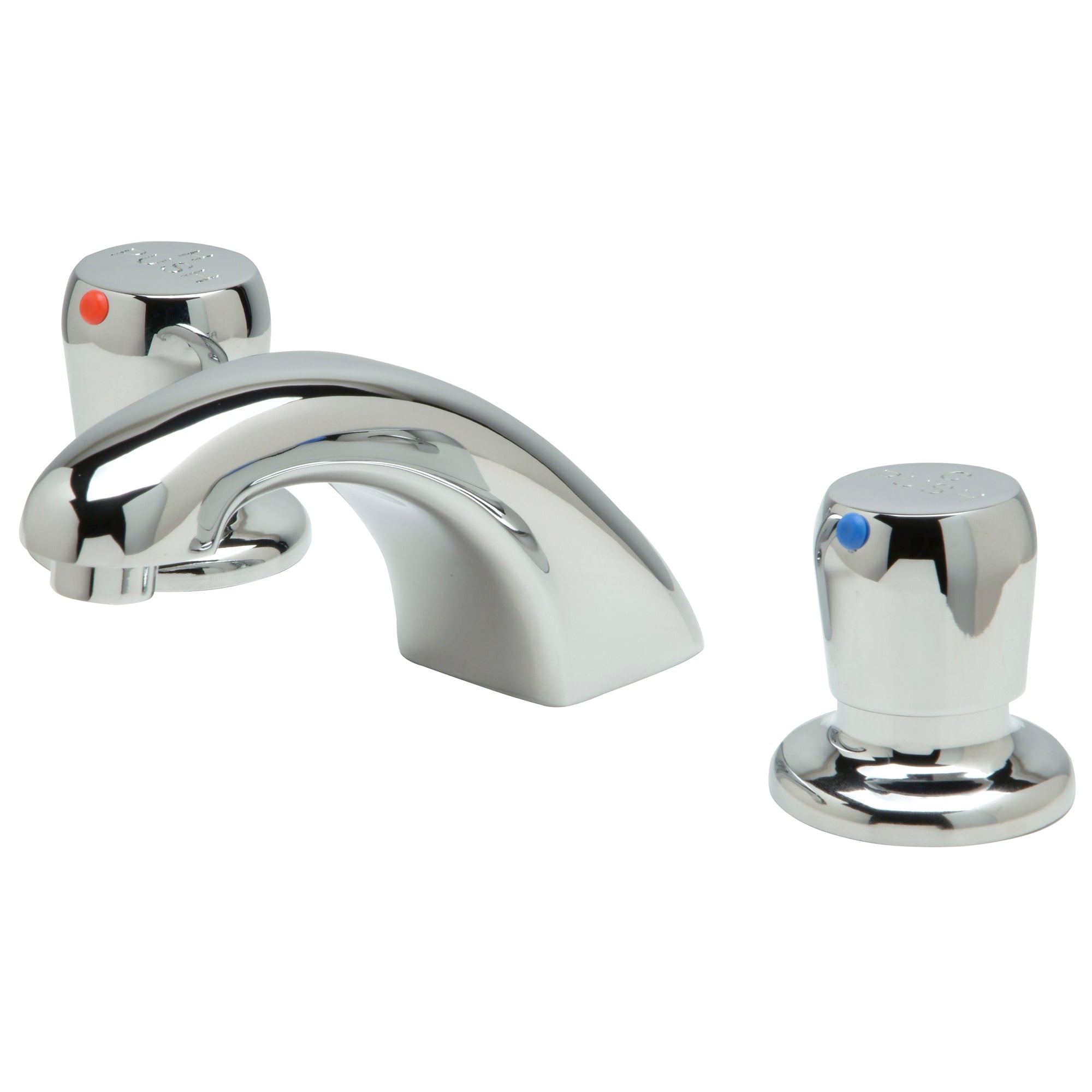

Zurn Z867R0-XL is an 8-inch AquaSpec metering widespread deck-mount faucet with a 5-inch centerline low-profile spout and metering cartridges designed for commercial lavatories. It features a lead-free cast-brass body, adjustable metering cycle timing preset to 10 seconds, and a standard 1.0 gpm pressure-compensating aerator with optional flow rates. The unit supports adjustable centers from 6 to 20 inches and includes vandal-resistant push-button handles and a polymer metering sleeve for durability.

• Lead-free cast brass body with polished chrome plating.
• Slow-closing metering cartridges with adjustable cycle timing (preset 10 seconds) and polymer metering sleeve.
• 5-inch low-profile spout, 8-inch widespread configuration (adjustable 610 inches) with 1.0 gpm pressure-compensating aerator.

Product Highlights

Widespread deck-mount metering faucet with adjustable timing, vandal-resistant handles, and a 1.0 gpm water-conserving aerator.

Product Information

Standard Information

• Brand: ZURN
• Manufacturer Part Number: Z867R0-XL
• Country of Origin: United States

Technical Specifications

• Brand: Zurn
• MPN: Z867R0-XL
• Series: AquaSpec
• Product Type: Metering widespread deck-mount faucet
• Mounting Type: Deck-mount, widespread
• Faucet Centers: 8 inch (adjustable 6 to 20 inches)
• Spout Reach: 5 inch centerline low-profile spout
• Flow Rate: 1.0 gpm (standard)
• Flow Options: Optional 0.351.0 gpm (pressure-compensating spray or laminar)
• Flow Outlet Type: Aerated, pressure-compensating aerator
• Material: Lead-free cast brass
• Finish: Polished chrome-plated
• Valve Type: Metering (slow-closing)
• Cartridge: Polymer metering sleeve with lifetime-warrantied ceramic disc cartridge
• Cycle Timing: Adjustable, preset to 10 seconds
• Handles: Vandal-resistant, color-coded metal push-button handles
• ADA Compliant: Yes
• Standards / Certifications: ASME A112.18.1; CSA B125.1; low-lead compliant
• Connection Type: 1/2 inch NPSM
• Replacement Cartridge: G61754
• Number of Holes: 3
• Number of Handles: 2
• Installation Type: Widespread deck-mount
• Includes: Integral shank filter assembly, mounting hardware, 1/2 inch NPSM coupling nuts
• UPC: 670240372566
• Country of Origin: United States
• Weight: 6.05 lb
