Zurn Z842F4-XL Sink Faucet with 6-inch Cast Spout Wall-Mount 2.2 GPM 4in Wrist Blade Handles

Product Description

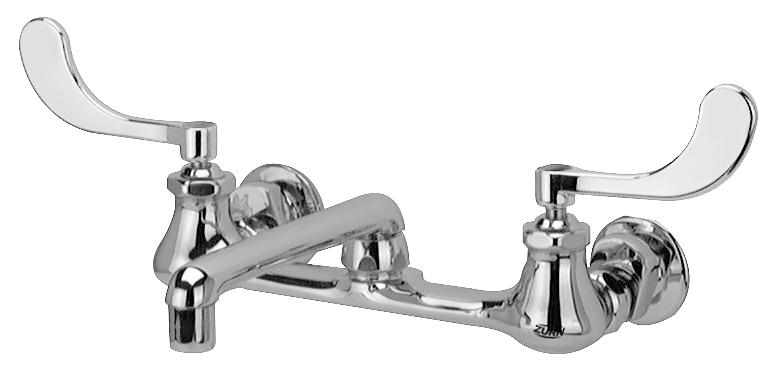

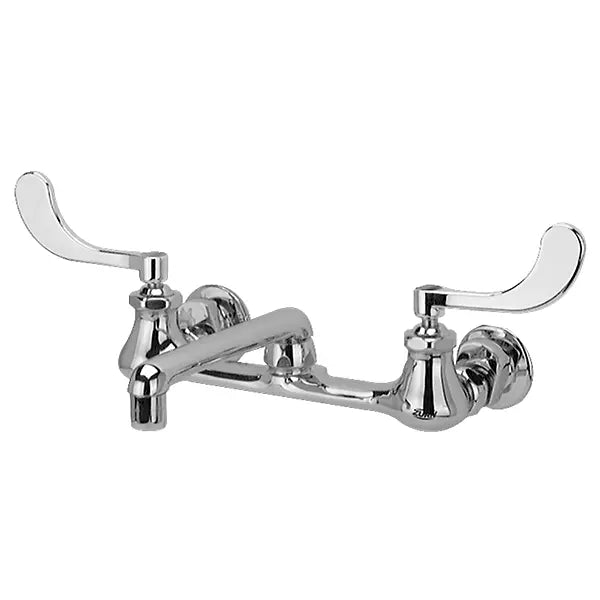

The ZURN Z842F4-XL is a wall-mount sink faucet designed for commercial applications. It features a 6-inch cast brass swing spout and 4-inch vandal-resistant wrist blade handles. This low-lead compliant faucet includes heavy-duty quarter-turn ceramic disc cartridges and 3/8-inch short swivel inlets, allowing adjustable centers from 7-1/4 to 8-3/4 inches. It delivers a flow rate of 2.2 GPM through a pressure compensating aerator, complying with ANSI A112.18.1 standards.

• Wall-mount design with a 6-inch cast brass swing spout for commercial use.
• Features 4-inch vandal-resistant wrist blade handles and heavy-duty quarter-turn ceramic disc cartridges.
• Low-lead compliant body with 3/8-inch swivel inlets, adjustable centers, and a 2.2 GPM pressure compensating aerator.

Product Highlights

Durable cast brass construction with ceramic disc cartridges ensures longevity and reliable performance in commercial settings.

Product Information

Standard Information

• Brand: ZURN
• Manufacturer Part Number: Z842F4-XL
• Country of Origin: United States

Technical Specifications

• Product Type: Sink Faucet
• Brand: Zurn
• Model Number: Z842F4-XL
• Cartridge Type: Heavy-duty quarter-turn ceramic disc
• Body Material: Low-lead compliant, chrome-plated cast brass
• Swivel Inlet Size: 3/8 inch
• Adjustable Centers: 7-1/4 to 8-3/4 inches
• Handle Type: 4 inch Vandal-Resistant Color Coded Wrist Blade, 1/4 Turn
• Spout Reach: 6 inch
• UPC: 670240372368
• Application: Commercial
• Connection Size: 1/2 Inch-14 TPI
• Connection Type: Female Threaded
• Finish: Polished Chrome
• Flow Rate: 2.2 GPM
• Mounting Type: Wall
• Number of Faucet Holes: 2
• Number of Handles: 2
• Spout Height: 1-7/8 inch
• Spout Type: Swing
• Certifications: ADA, ANSI A112.18.1
• Handle Material: Brass
• Spout Clearance: 1/4 Inch
• Aerator Type: Pressure Compensating
• Sub-Brand: Aquaspec
• Pressure Rating: 125 PSI
• Temperature Rating: 160 Deg F
• Handle Nut Torque Rating: 15 to 20 Foot-Pound
