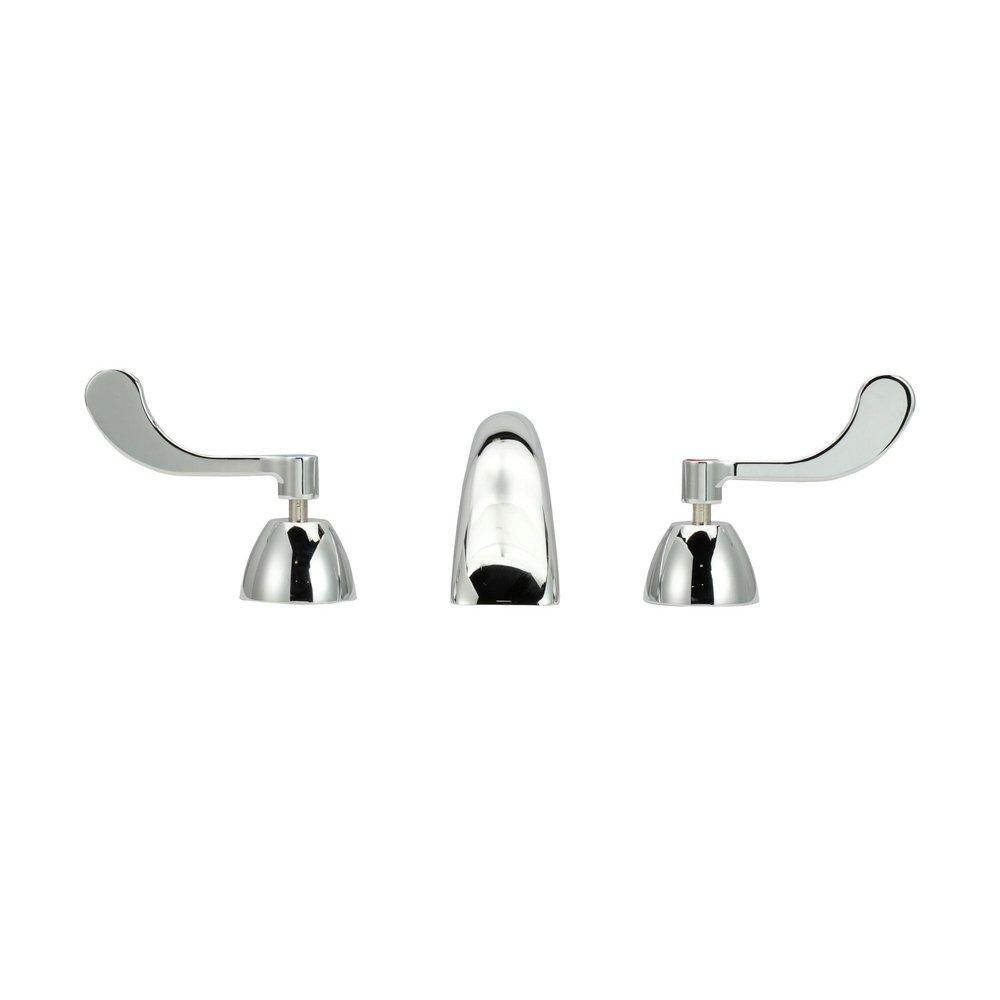

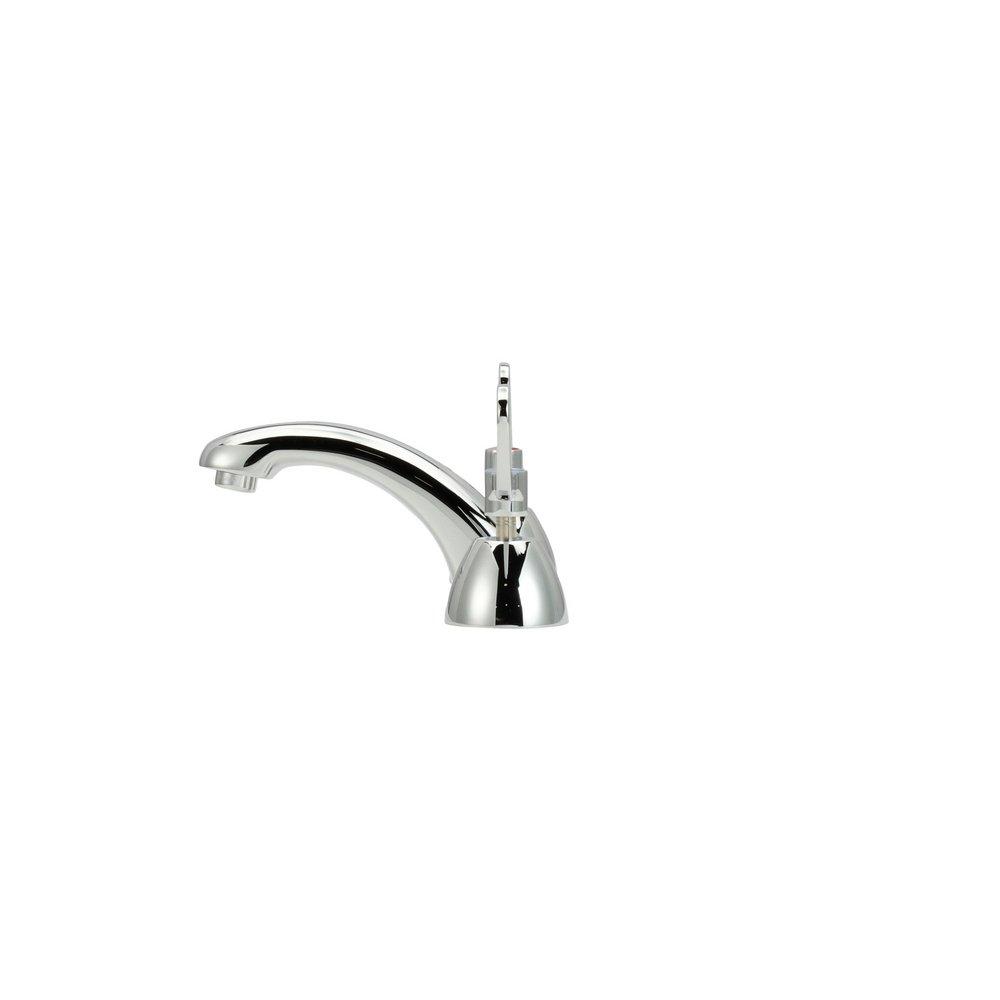

Zurn Z831R4-XL AquaSpec Two Handle Widespread Bathroom Sink Faucet 2.2 gpm

Product Description

The ZURN Z831R4-XL AquaSpec widespread deck-mount faucet is designed for commercial washroom environments. Constructed with a lead-free cast brass body, this faucet features quarter-turn ceramic disc cartridges. It has adjustable centers allowing for installation from 6" to 20" apart and can accommodate installations up to 1 1/8" thick.

• Pressure-compensating flow-control options
• Quarter-turn ceramic disc cartridges
• Widespread low-profile faucet

Product Highlights

This polished chrome-plated faucet is ADA compliant, vandal-resistant, and includes color-coded 4" wrist blade handles. It comes with a 2.2 gpm pressure-compensating aerator.

Product Information

Standard Information

• Brand: ZURN
• Manufacturer Part Number: Z831R4-XL
• Country of Origin: United States

Technical Specifications

• GPM: 2.2
• Material: Brass
• FinishColor: Polished Chrome
• Finish_Name: Polished Chrome
• Handle_Type: 4" Wrist Blade
• ADA_Compliant: Yes
• ASME_Standard: A112.18.1
• CSA_Standards: B125.1
• Connection_Type: NPSM
• Installation_Type: Deck-Mount
• Commercial_or_Residential: Primarily Commercial
• Item [Specifications]: Low Arc Bathroom Faucet
• Finish [Specifications]: Chrome Plated
• Series [Specifications]: AquaSpec
• Features [Specifications]: Adjustable Centers from 6 in to 20 in
• Includes [Specifications]: Mounting Hardware and 1/2 in Coupling Nuts for Risers
• Flow Rate [Specifications]: 2.2 gpm
• Standards [Specifications]: ASME A112.18.1
• Connection [Specifications]: 1/2" MNPS
• Drain Type [Specifications]: None
• Valve Type [Specifications]: Cartridge
• Faucet Type [Specifications]: Bathroom Sink Faucet
• Handle Type [Specifications]: Lever
• Spout Reach [Specifications]: 5 1/8 in
• Faucet Spout [Specifications]: Cast
• Spout Height [Specifications]: 3 in
• Spout Length [Specifications]: 5 in
• Body Material [Specifications]: Brass
• CEC Compliant [Specifications]: Non CEC Compliant
• Faucet Finish [Specifications]: Chrome
• Mounting Type [Specifications]: Widespread
• Temp. Control [Specifications]: Yes
• Number of Holes [Specifications]: 3
• Faucet Operation [Specifications]: Lever Handle
• Flow Outlet Type [Specifications]: Pressure Compensating Aerator
• Faucet Activation [Specifications]: Manual
• Number of Handles [Specifications]: 2
• Faucet Handle Type [Specifications]: Wristblade
• Faucet Spout Shape [Specifications]: Low Arc
• Ligature Resistant [Specifications]: No
• Temperature Control [Specifications]: Yes
• Faucet Body Material [Specifications]: Brass
• Valve Type - Faucets [Specifications]: Hot/Cold Cartridge
• Faucet Handle Material [Specifications]: Metal
• Mounting Type - Faucet [Specifications]: Deck
• Commercial / Residential [Specifications]: Commercial
• Flow Outlet Type (Faucet) [Specifications]: Aerated
• Flow Outlet Type - Faucet [Specifications]: Aerated
• Vandal Resistant Features [Specifications]: Vandal Resistant Handles
• Water Inlet Connection Size [Specifications]: 1/2 in
• Battery Charger CEC Compliant [Specifications]: Non CEC Compliant
• Green Environmental Attribute [Specifications]: Product Contributes To Reducing Water Consumption
• Mounting Hole Center to Center [Specifications]: 8"
• Max. Mounting Hole Center Distance [Specifications]: 8 in
• Max. Installation Surface Thickness [Specifications]: 4 1/4 in
• Country of Origin (subject to change) [Specifications]: United States
• Replacement Cartridge Mfr. Model Number [Specifications]: 59517007, 59517008
• Spout: 5" centerline cast brass low profile spout
• Handles: 4" vandal-resistant color coded wrist blade handles, adjustable from 6" to 20" centers
• Construction: Chrome-plated cast brass construction for durability
• Kully Item #: 163754
• Manufacturer: Zurn
• Model #: Z831R4-XL
• Faucet Centers: 8 in.
• Flow Rate (GPM): 2.2
• Max Deck Thickness: 1.125 in.
• Spout Height: 2 in.
• Spout Reach: 5.125 in.
• Drain Assembly Included: No
• Escutcheon Included: No
• Handles Included: Yes
• Sidespray: No
• Soap Dispenser Included: No
• Valve Included: Yes
• Faucet Holes: 3
• Handle Material: Metal
• Handle Style: Wrist Blade
• Mounting Type: Widespread
• Number Of Handles: 2
• Pullout Spray: No
• Theme: Basic
• Valve Type: Ceramic Disc
• ADA: Yes
• Approved for Commercial Use: Yes
• CA Drought Compliant: No
• Low Lead Compliant: Yes
• WaterSense Certified: No
