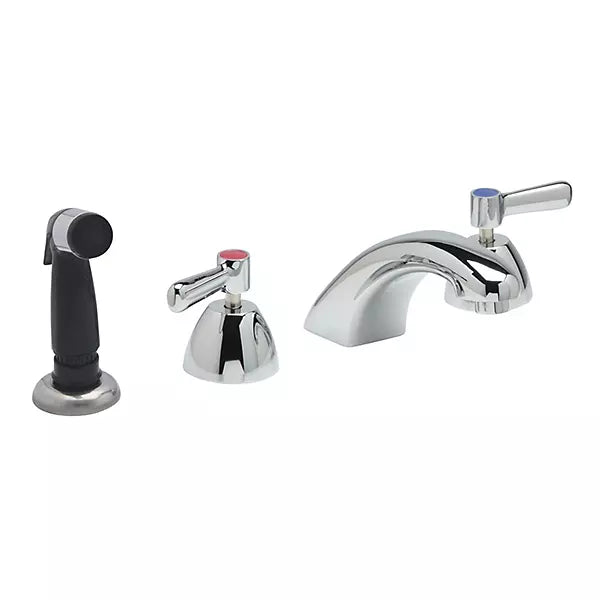

Zurn Z831R1-XL AquaSpec Widespread Faucet, 2.2 gpm, 5 inches Centerline Spout

Product Description

The ZURN Z831R1-XL AquaSpec widespread deck-mount faucet is designed for commercial washroom environments. Constructed of lead-free cast brass, it features quarter-turn ceramic disc cartridges tested to last up to one million cycles. This faucet has a 5-inch centerline, low-profile spout and adjustable centers for spacing from 6 to 20 inches. It includes vandal-resistant, color-coded lever handles and a 2.2 gpm pressure-compensating aerator.

• Durable, lead-free cast brass body
• Quarter-turn ceramic disc cartridges last up to one million cycles
• Adjustable centers allow for installation from 6" to 20" apart

Product Highlights

Durable widespread faucet with adjustable centers and vandal-resistant handles, ideal for commercial use.

Product Information

Standard Information

• Brand: ZURN
• Manufacturer Part Number: Z831R1-XL
• Country of Origin: United States

Technical Specifications

• GPM: 2.2
• Material: Brass
• FinishColor: Polished Chrome
• Finish_Name: Polished Chrome
• Handle_Type: Metal Lever
• ADA_Compliant: Yes
• ASME_Standard: A112.18.1
• CSA_Standards: B125.1
• Connection_Type: NPSM
• Installation_Type: Deck-Mount
• Commercial_or_Residential: Primarily Commercial
• Series: AquaSpec
• Features: Adjustable Centers from 6 in to 20 in
• Includes: Mounting Hardware and 1/2 in Coupling Nuts for Risers
• Standards: ASME A112.18.1
• Connection: 1/2" MNPS
• Faucet Type: Bathroom Sink Faucet
• Spout Reach: 5 1/8 in
• Faucet Spout: Cast Brass
• Spout Height: 3 in
• Spout Length: 5 1/8 in
• Body Material: Brass
• CEC Compliant: Non CEC Compliant
• Faucet Finish: Chrome
• Mounting Type: Widespread
• Handle Material: Metal
• Number of Holes: 3
• Faucet Operation: Lever Handle
• Flow Outlet Type: Pressure Compensating Aerator
• Faucet Activation: Manual
• Number of Handles: 2
• Faucet Handle Type: Lever
• Faucet Spout Shape: Low Arc
• Ligature Resistant: No
• Temperature Control: No
• Faucet Body Material: Brass
• Valve Type - Faucets: Hot/Cold Cartridge
• Mounting Type - Faucet: Deck
• Residential / Commercial: Commercial
• Flow Outlet Type (Faucet): Aerated
• Vandal Resistant Features: Vandal Resistant Handles
• Water Inlet Connection Size: 1/2 in
• Battery Charger CEC Compliant: Non CEC Compliant
• Green Environmental Attribute: Product Contributes To Reducing Water Consumption
• Mounting Hole Center to Center: 8"
• Max. Mounting Hole Center Distance: 8 in
• Max. Installation Surface Thickness: 4 1/4 in
• Country of Origin (subject to change): United States
• Replacement Cartridge Mfr. Model Number: 59517007, 59517008
• Lead Free: Yes
• Interconnecting copper supply tubes: for 8" in-line centers
• Cartridge: Heavy-duty quarter-turn ceramic disc cartridge
• Compliance: Low-lead compliant, chrome-plated widespread with adjustable centers from 6" to 20"
• Handles: 2-1/2" vandal-resistant color coded lever handles
• ADA Compliant Options Available: Yes
• Lead Law Compliant Options Available: Yes
• Product Certification Options Available: ASME A112.18.1/ CSA B125.1, CSA B125.1
• Manufacturer: Zurn
• Model #: Z831R1-XL
• UPC Code: 670240369894
