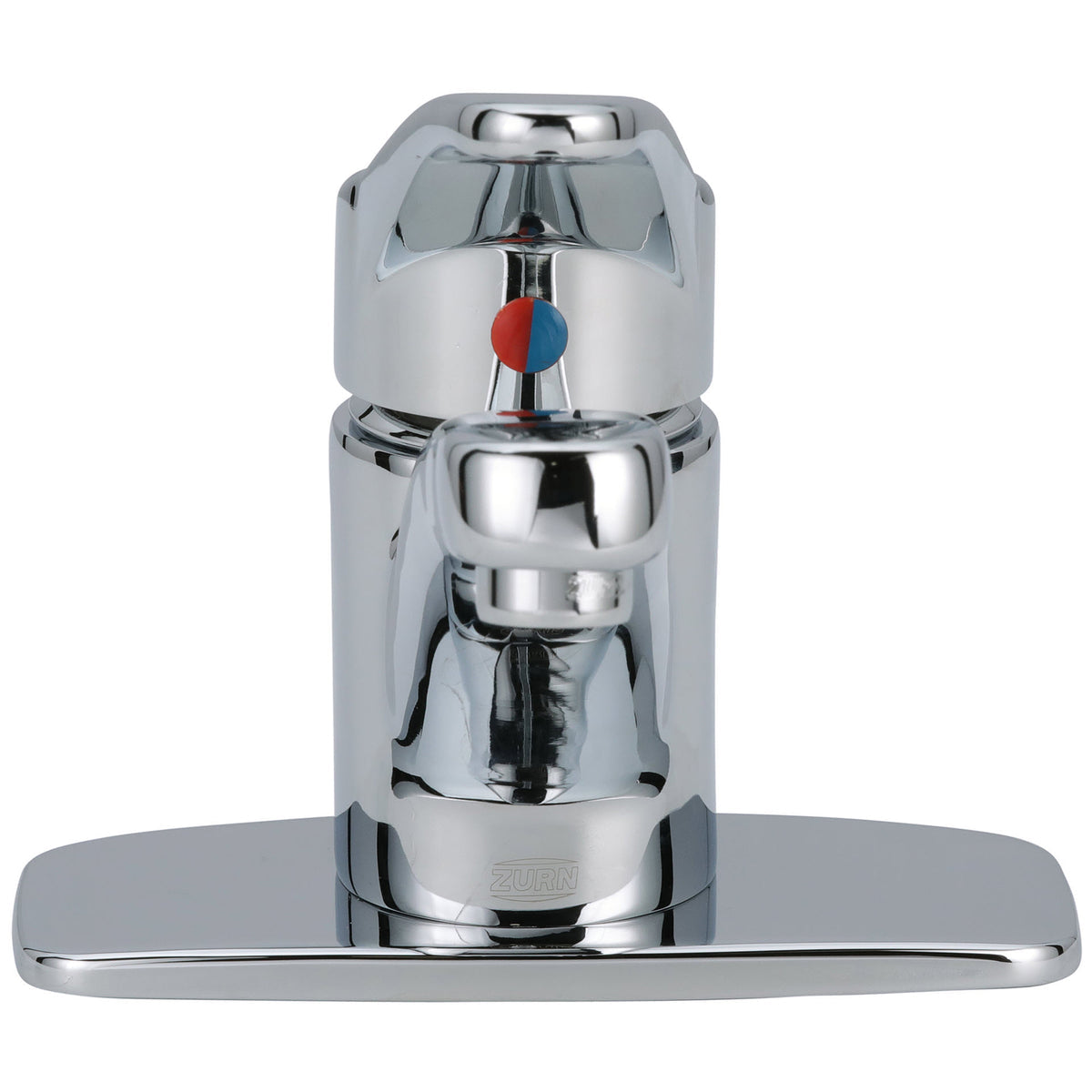

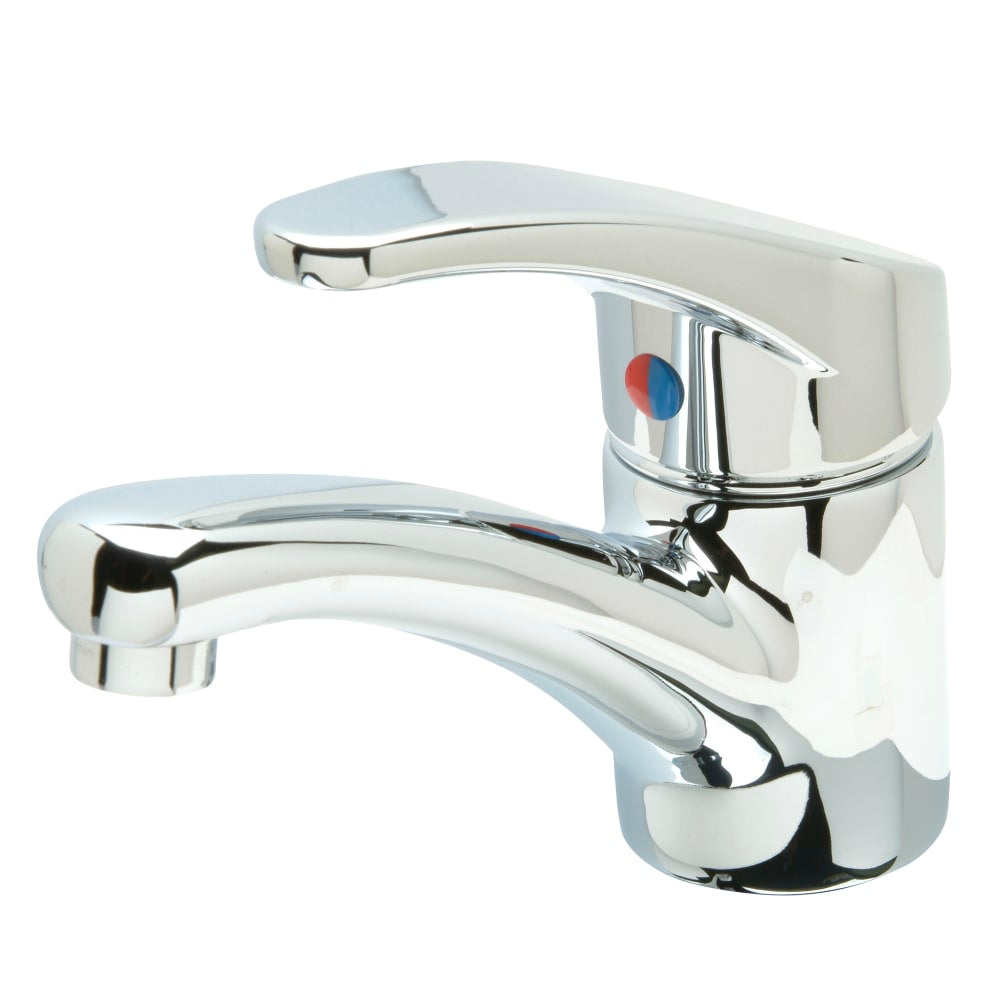

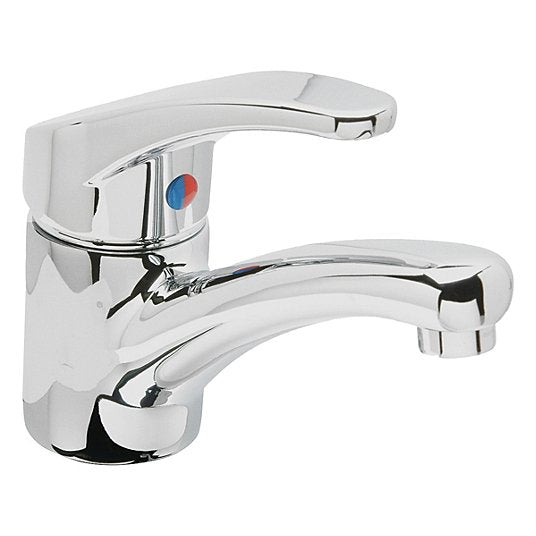

Zurn Z82200-XL-3M AquaSpec® Single-control Deck-mount Lavatory Faucet 0.5 gpm

Product Description

The ZURN Z82200-XL-3M AquaSpec® faucet is engineered for lasting performance in commercial restrooms. Constructed with a lead-free cast brass body, it features a heavy-duty quarter-turn ceramic disc cartridge for durability. This single-hole lavatory faucet includes a 5-inch integral spout, metal lever handle, and a water-saving 0.5 gpm spray outlet. It also has a temperature limit stop and stainless steel flex connection hoses.

• Quarter-turn ceramic disc cartridge lasts up to a million cycles
• Temperature limit stop prevents scalding
• Water-conserving 0.5 gpm vandal-resistant pressure compensating male aerator

Product Highlights

Durable lavatory faucet with ceramic disc cartridge, temperature limit, and water-saving aerator, ideal for commercial use.

Product Information

Standard Information

• Brand: ZURN
• Manufacturer Part Number: Z82200-XL-3M
• Country of Origin: USA

Technical Specifications

• GPM: 0.5
• Handle_Type: Single Control
• ADA_Compliant: Yes
• ASME_Standard: A112.18.1
• CSA_Standards: B125.1
• Commercial_or_Residential: Primarily Commercial
• Brand: ZURN
• Series: AquaSpec
• Product Type: Faucet
• Operation Method: Manual
• Mounting Type: Single-Post
• Mounting Location: Deck
• Flow Rate: 0.5 gpm
• Flow Type: Spray
• Body Material: Brass
• Color/Finish: Chrome
• Number of Mounting Holes: 1
• Number of Handles: Single
• Handle Material: Brass
• Cartridge Type: Ceramic Disc
• Spout Shape: Arc
• Spout Height: 5-3/8 in
• Spout Reach: 6-3/4 in
• Spout Outlet Height: 2-3/4 in
• Temperature Control: Non-Adjustable
• Temperature: For Water Temperature Hot/Cold
• Water Inlet Connection Size: 1/2 in
• Max. Installation Surface Thickness: 3 in
• Max. Mounting Hole Spacing: 8 in
• Max. Pressure: 125 psi
• Max. Temperature: 160 F
• Includes: Connection Hoses; Mounting Hardware
• For Location: Bathroom
• Application: Commercial
• Replacement Cartridge Mfr. Part Number: 80242001
• Replacement Cartridge Grainger Item Number: 401K03
• Vandal Resistant Features: Vandal-Resistant Outlet
• CEC Compliance: Not CEC Compliant
• Standards: ASME A112.18.1
• Manufacturer Part Number: Z82200-XL-3M
• UNSPSC: 40141702
• Faucet Centers (in): 4
• Nozzle Length (in): 5
• Product: Commercial Bathroom Faucets
• Spout Type: Fixed
