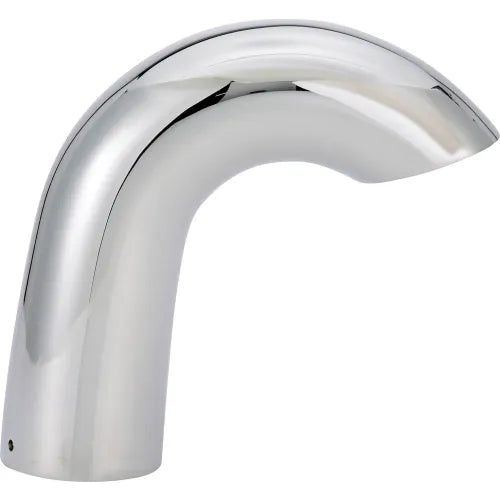

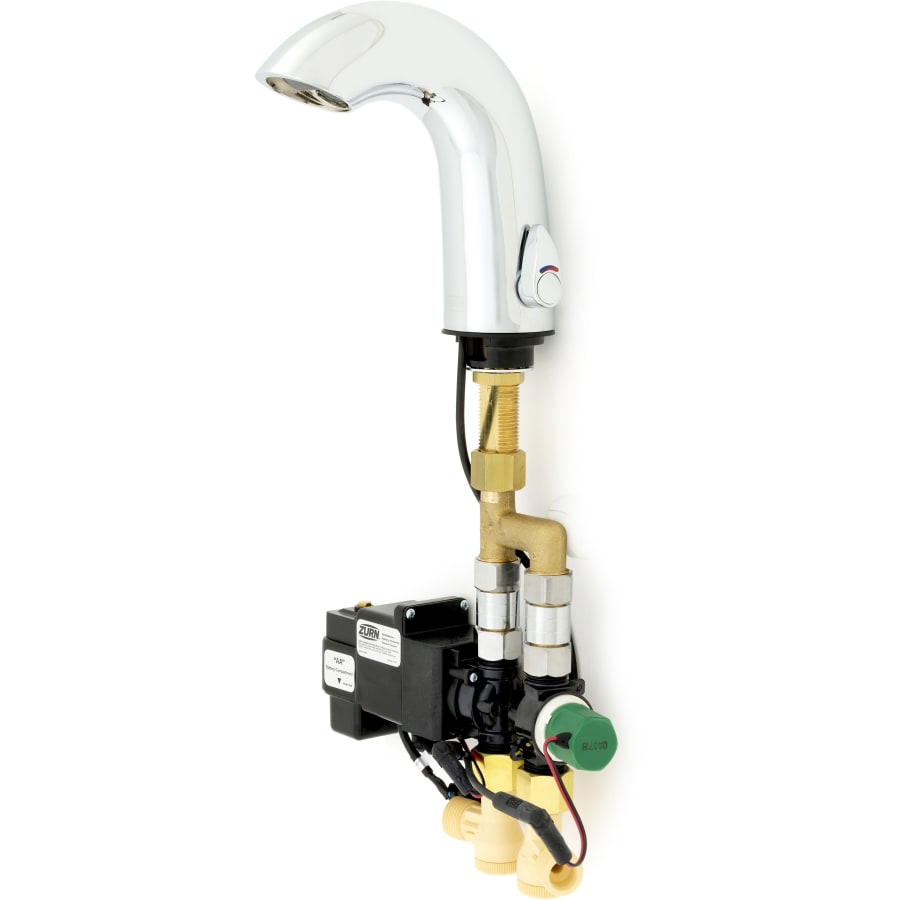

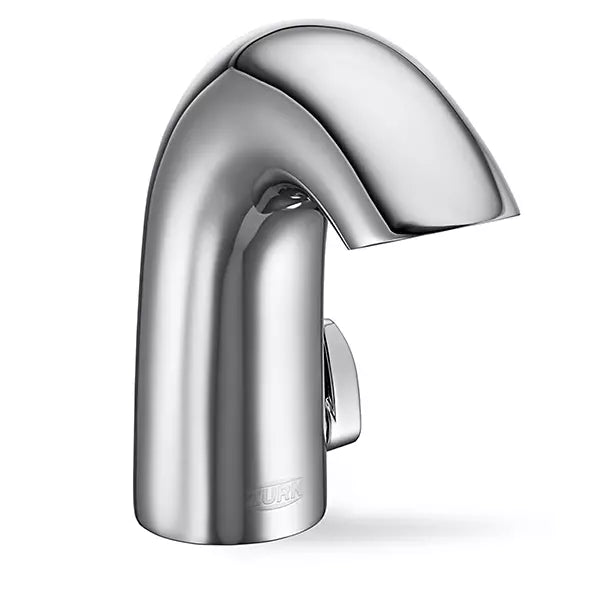

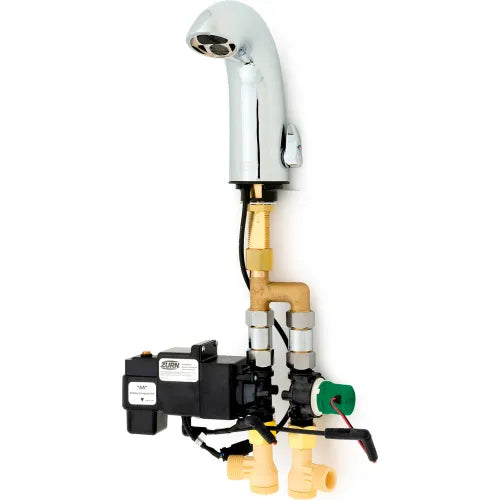

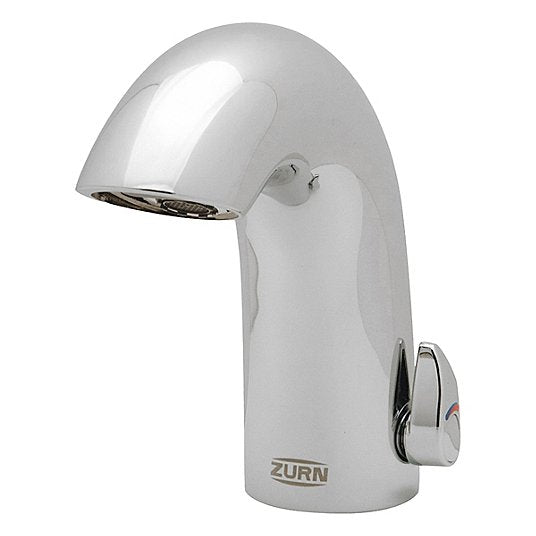

Zurn Z6950-XL-IM-S-E AquaSense Single Post Faucet with Integral Mixing Valve, 1.5 gpm

Product Description

The ZURN Z6950-XL-IM-S-E AquaSense faucet is designed for high-use applications requiring durability and hands-free operation. This ADA compliant, battery-powered faucet features a polished chrome-plated cast brass sensor with an infrared proximity sensor. It includes a standard 1.5 GPM aerator and mounting hardware, making it suitable for retrofit and new construction.

• Features an infrared convergence-type proximity sensor.
• Includes a 30-second time out feature to conserve water.
• Constructed with a chrome-plated, heavy-duty cast brass body for durability.

Product Highlights

Ideal for commercial use, this Zurn AquaSense faucet offers hands-free operation and water-saving features.

Product Information

Standard Information

• Brand: ZURN
• Manufacturer Part Number: Z6950-XL-IM-S-E
• Country of Origin: United States

Technical Specifications

• Brand: Zurn
• Style: Other/Custom
• Finish: Chrome
• Series: Aqua-Fit
• Voltage: 6V DC
• Features: Infrared Convergence Type Proximity Sensor
• Material: Brass
• Flow Rate: 1.5 gal/min
• Activation: Motion Sensor
• Valve Type: Solenoid
• Outlet Type: Aerator
• Height: 5-1/8 in
• Faucet Holes: 1
• Handle Style: Single Post
• Mixing Valve: Included
• Power Supply: AA Batteries
• Sensor Range: Self Adjusting
• Vandal Resistant: Yes
• Spout Reach: 6-1/2 in
• Country of Origin: United States
• Mounting Location: Deck
• Spout Height: 4-3/8 in
• Spout Length: 6-1/2 in
• GPM: 1.5
• Temperature Control: Non-Adjustable
• Connection Size: 1/2 in
• Inlet Connection: 1/2 in
• ADA Compliant: Yes
• Manufacturers Part Number: Z6950-XL-IM-S-E
• Width: 2.6875
• Length: 6.5
• Power_Type: Battery
• Unit_Width: 2.6875
• WaterSense: Yes
• FinishColor: Polished Chrome
• Finish_Name: Chrome Plated
• ASME_Standard: A112.18.1
• CSA_Standards: B125.1
• Connection_Type: NPSM
• Installation_Type: Deck-Mount
• Commercial_or_Residential: Primarily Commercial
• Item: Mid Arc Bathroom Faucet
• Standards: NSF 372; NSF 61/9; ASME 112.18.1/CSA B125.1
• Faucet Type: Bathroom Sink Faucet
• Handle Type: Sensor
• Sensor Lead: Integrated
• Faucet Spout: Cast Brass
• Faucet Finish: Chrome
• Overall Height: 5-1/8"
• Number of Holes: 1
• Faucet Operation: Sensor
• Flow Outlet Type: Vandal Resistant Aerator
• Number of Handles: 0
• Faucet Handle Type: None
• Faucet Spout Shape: Mid Arc
• Ligature Resistant: No
• Faucet Body Material: Brass
• Valve Type - Faucets: Hot/Cold Cartridge
• Replacement Cartridge: None
• Mounting Type - Faucet: Deck
• Commercial / Residential: Commercial
• Residential / Commercial: Commercial
• Flow Outlet Type (Faucet): Aerated
• Flow Outlet Type - Faucet: Aerated
• Vandal Resistant Features: Vandal Resistant Outlet
• Water Inlet Connection Size: 1/2 in
• Battery Charger CEC Compliant: CEC Compliant
• Green Environmental Attribute: Faucet Flow Rate 1.5 gpm Or Less
• Max. Mounting Hole Center Distance: 8 in
• Max. Installation Surface Thickness: 3 in
• Faucet Hole Size: 1.125 in
• Faucet Centers: 0 in
• Battery Quantity: 4
• Mounting Type: Single-Post
• Spout Type: Fixed
• Theme: Traditional
• Battery Size: AA
• Battery Type: Lithium
• ADA: Yes
• Approved for Commercial Use: Yes
• CA Drought Compliant: No
• Collection: Aqua-Fit
• Lead Leaching Certified NSF/ANSI 61: N/A (Regulation does not apply)
• Low Lead Compliant: Yes
• Made in America: Yes
• WaterSense Certified: Yes
• Product Type: Sensor
• Faucet Operation Method: Motion
• Sensor: Sensor
• Number of Mounting Holes: 1
• Flow Type: Aerated
• Body Material: Brass
• Color/Finish: Chrome
• Spout Shape: Arc
• Spout Style: Fixed
• Spout Outlet Height: 4-9/16 in
• Temperature: Temperature Control Method
• Above Deck Mixing: Valve
• Water Supply Type: Hot and Cold
• Lines: Lines
• Sensor Range Adjustment: Self-Adjusting
• Water Inlet Connection Type: NPSM
• Base Width: 2-3/16 in
• Min. For Mounting Hole Diameter: 1-1/8 in
• Max. For Mounting Hole Diameter: 1-1/4 in
• Max. Mounting Hole Spacing: 1-1/4 in
• Max. Temperature: 140 °F
• Min. Temperature: 33 °F
• Max. Pressure: 125 psi
• Cartridge Type: Ball
• For Location: Bathroom
• Application: Commercial
• Industrial: Industrial
• Includes Transformer: Transformer Not
• Included: Included
• Includes Batteries: Batteries
• Number of Batteries: 4
• Includes Handle: Handle Not
• Includes Drain: Drain Not
• Time Out: 30 sec
• Replacement Cartridge Mfr. Part Number: None
• CEC Compliance: Not CEC
