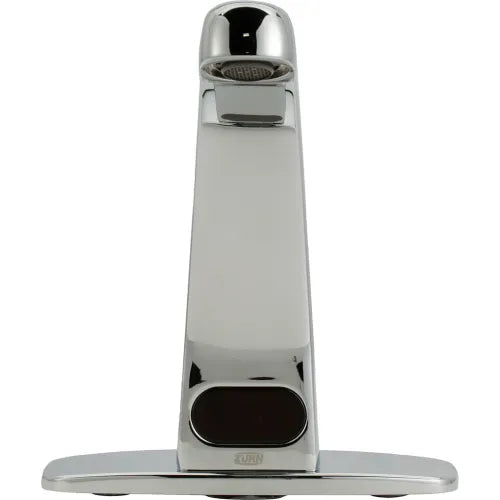

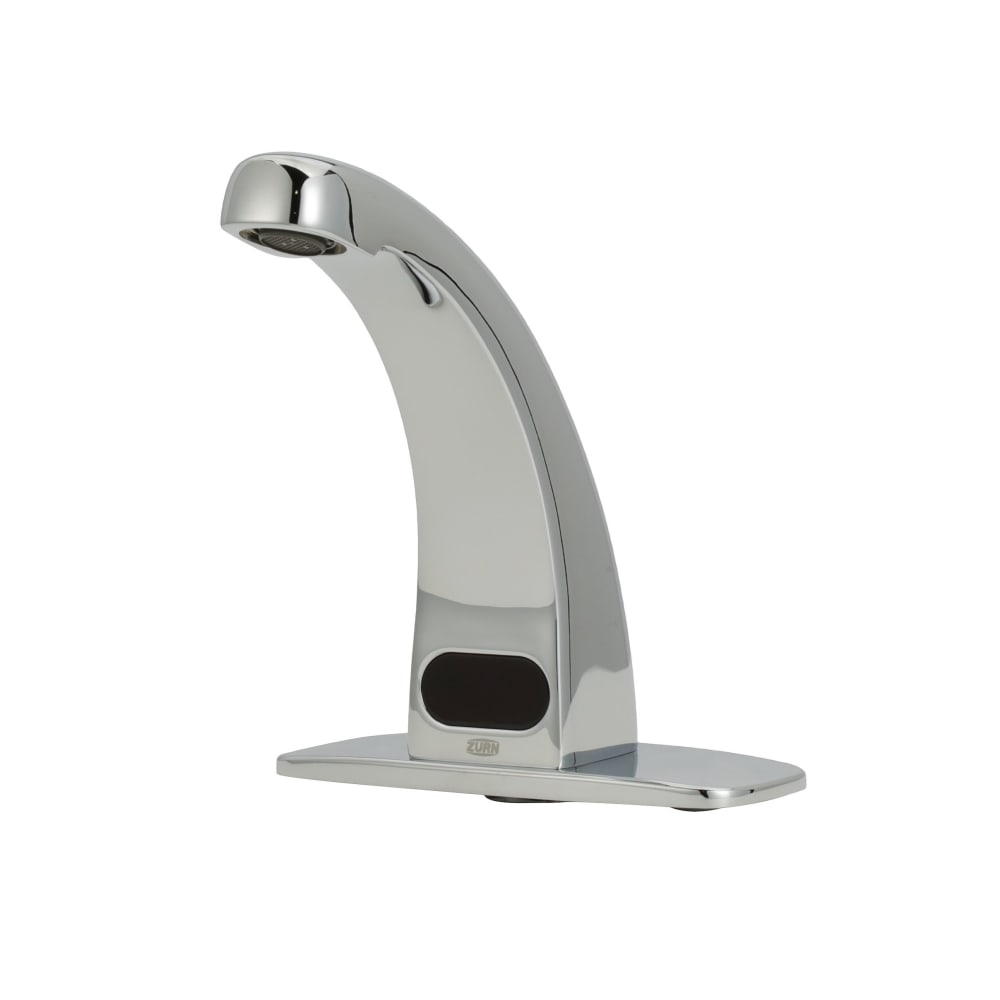

Zurn Z6913-XL-ACA-CP4-MV AquaSense Single Hole Sensor Faucet 0.5 GPM

Product Description

The ZURN Z6913-XL-ACA-CP4-MV AquaSense Single Hole Sensor Faucet features a 6 VDC plug-in power converter and an infrared proximity sensor for hands-free operation. It includes a 4-inch cover plate and a mixing valve for temperature control. Ideal for high-use applications, this faucet is ADA compliant and comes with a 0.5 GPM aerator and mounting hardware.

• Features an infrared convergence-type proximity sensor.
• Includes a 30-second time out feature.
• Constructed with a chrome-plated, heavy-duty cast brass body.

Product Highlights

This Zurn AquaSense faucet offers durability and hands-free operation, perfect for commercial environments.

Product Information

Standard Information

• Brand: ZURN
• Manufacturer Part Number: Z6913-XL-ACA-CP4-MV
• Country of Origin: Taiwan

Technical Specifications

• Brand: Zurn
• Manufacturers Part Number: Z6913-XL-ACA-CP4-MV
• Series: AquaSense
• Voltage: 7.5V DC
• Amperage: 0.03 A
• Features: 30 Sec Time-Out Feature
• Material: Brass
• Flow Rate: 0.5 gpm
• Activation: Motion Sensor
• Valve Type: Solenoid
• Outlet Type: Aerator
• Center: 4 in
• Height: 7-5/16 in
• Faucet Holes: 1
• Handle Style: Sensor
• Mixing Valve: Included
• Power Supply: Hardwired
• Sensor Range: 1 in to 6 in
• Vandal Resistant: Yes
• Spout Reach: 5.5 Inches
• Country of Origin: Taiwan
• Mounting Location: Deck
• Spout Height: 5.75 Inches
• Spout Length: 6-5/16 in
• Temperature Control: Yes
• Connection Size: 1/2 in
• Inlet Connection: 1/2 in
• ADA Compliant: Yes
• GPM: 0.5
• Width: 2
• Length: 6.625
• Power_Type: Hardwired
• Unit_Width: 2
• FinishColor: Polished Chrome
• Finish_Name: Chrome Plated
• ASME_Standard: A112.18.1
• CSA_Standards: B125.1
• Connection_Type: Universal Extra Fine Thread
• Installation_Type: Deck-Mount
• Commercial_or_Residential: Primarily Commercial
• Item: Mid Arc Bathroom Faucet
• Finish: Chrome plated
• Includes: Temperature Mixing Valve & 6 VDC Plug-In Power Converter
• Standards: ASME A112.18.1/CSA B125.1
• Drain Type: None
• Faucet Type: Bathroom Sink Faucet
• Spout Design: Mid Arc
• Body Material: Cast Brass
• CEC Compliant: Non CEC Compliant
• Faucet Finish: Polished Chrome
• Mounting Type - Faucet: Deck
• Temp. Control: Yes
• ADA Compliance: Yes
• Number of Holes: 1
• Faucet Operation: Sensor
• Number of Handles: 0
• Faucet Handle Type: None
• Faucet Spout Shape: Mid Arc
• Ligature Resistant: No
• Faucet Body Material: Brass
• Valve Type - Faucets: Solenoid Valve
• Replacement Cartridge: 4UZP3
• Commercial / Residential: Commercial/Residential
• Residential / Commercial: Commercial
• Flow Outlet Type (Faucet): Aerated
• Flow Outlet Type - Faucet: Aerated
• Vandal Resistant Features: Vandal Resistant Outlet
• Water Inlet Connection Size: 1/2 in
• Battery Charger CEC Compliant: Non CEC Compliant
• Green Environmental Attribute: Faucet Flow Rate 1.5 gpm Or Less
• Mounting Hole Center to Center: Single Hole
• Max. Mounting Hole Center Distance: Single Hole
• Max. Installation Surface Thickness: 3 in
• Country of Origin (subject to change): Taiwan, Province of China
• Replacement Cartridge Mfr. Model Number: P6900-SRK
• Green Certification or Other Recognition: WaterSense Approved
• Kully Item #: 149681
• Manufacturer: Zurn Industries
• Model #: Z6913-XL-ACA-CP4-MV
• Manufacturer Part #: Z6913-XL-ACA-CP4-MV
• UPC Code: 889934216639
• Power Type: Plug-In Adapter
• Mount Dimension: 4"
• Faucet Mount: Deck
• Product: Touchless Faucets
• Product Type: Commercial Sinks
• Series ID: Z6913-XL
• Spout Type: Fixed
• Recommended Uses For Product: Bathroom, Sink
• Mounting Type: Single-Post
• Finish Type: Polished
• Hole Count: 1
• Special Feature: Touchless
• Style: Sensor
• Installation Type: Single Hole
• Maximum Flow Rate: 0.5 Gallons Per Minute
• Model Name: Z6913-XL
• Handle Material: Brass
• Handle Location: Deck
• Room Type: Bathroom
• Part Number: Z6913-XL
• Item Package Quantity: 1
• Maximum Pressure: 125 Pound per Square Inch
• Measurement System: US
• Certification: ASME A112.18.1/ CSA B125.1
• Special Features: Touchless
• Usage: Inside
• Operation Method: Motion Sensor
• Number of Mounting Holes: 3
• Flow Type: Aerated
• Color/Finish: Chrome
• Spout Outlet Height: 5-11/16 in
• Water Supply Type: Hot and Cold Lines
• Sensor Range Adjustment: Fixed
• Base Width: 2 in
• Min. For Mounting Hole Diameter: 1-1/8 in
• Max. For Mounting Hole Diameter: 1-1/4 in
• Max. Mounting Hole Spacing: 4 in
• Max. Temperature: 140 °F
• Min. Temperature: 35 °F
• Cartridge Type: Ball
• Time Out: 30 sec
