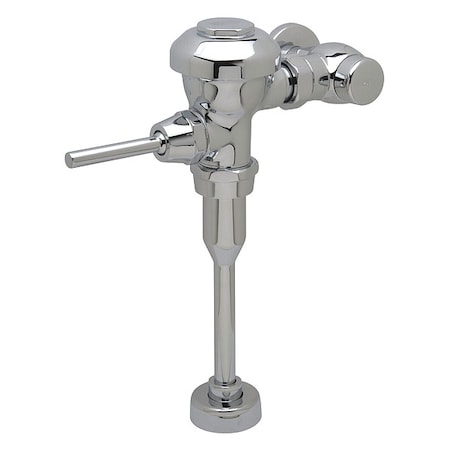

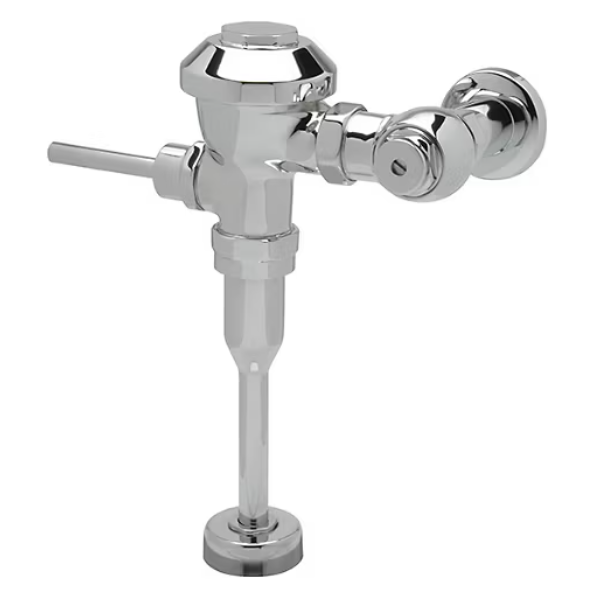

Zurn Z6003-WS1-VC-YB-YC Aquaflush High Efficiency Flushometer 1 gpf

Product Description

The ZURN Z6003-WS1-VC-YB-YC is a high-performance exposed flush valve designed for urinals. This AquaFlush model combines water efficiency with enhanced durability features, offering a 1.0 gpf flow rate and vandal-resistant components. Features a chrome plated flushometer valve with a polished exterior. Includes a cast wall flange, set screw, and sweat solder kit. ADA compliant design ensures accessibility for all users.

• Water Conservation: The 1.0 gpf design significantly reduces water consumption compared to standard models.
• Enhanced Durability: Vandal-resistant stop cover (VC) protects critical components from tampering.
• Flexible Installation: Multiple rough-in height options and adjustable tailpiece accommodate various plumbing configurations.

Product Highlights

This AquaFlush series manual flush valve offers water conservation, enhanced durability, and flexible installation for commercial restrooms.

Product Information

Standard Information

• Brand: ZURN
• Manufacturer Part Number: Z6003-WS1-VC-YB-YC
• Country of Origin: United States

Technical Specifications

• Item: Aquaflush High Efficiency Flushometer
• Finish: Chrome Plated
• Includes: Cast Wall Flange, Set Screw, Sweat Solder Kit, Vandal Resistant Stop cap
• Rough-In: 11 1/2 in
• Standards: ADA Compliant
• Flush Mode: Single Flush
• Inlet Size: 3/4 in IPS
• Spud Coupling: 3/4 in
• Pressure Range: 10 to 100 psi
• Brand and Series: Zurn
• Gallons per Flush: 1 gpf
• Fixture Connection: Top Spud
• Flow Rate: Water-saving 1.0 gallons per flush (WS1) for optimal conservation in urinal applications.
• Construction: Chrome plated flushometer valve with a polished exterior for durability and aesthetics.
• Diaphragm: Chloramine resistant, dual seal diaphragm with a clog-resistant by-pass for reliable operation.
• Vandal Resistance: Includes vandal-resistant stop cover (VC) for added security and longevity.
• Installation Options: Available in multiple rough-in heights to accommodate various installation requirements.
• Vacuum Breaker: High back pressure type with one-piece hex coupling nut for backflow prevention.
• Material: Internal seals made of chloramine resistant materials for extended life in treated water systems.
• Tailpiece: Adjustable for versatile plumbing configurations
• Spud Connection: Top spud design with coupling and flange
• Control Stop: Internal siphon-guard protection included
