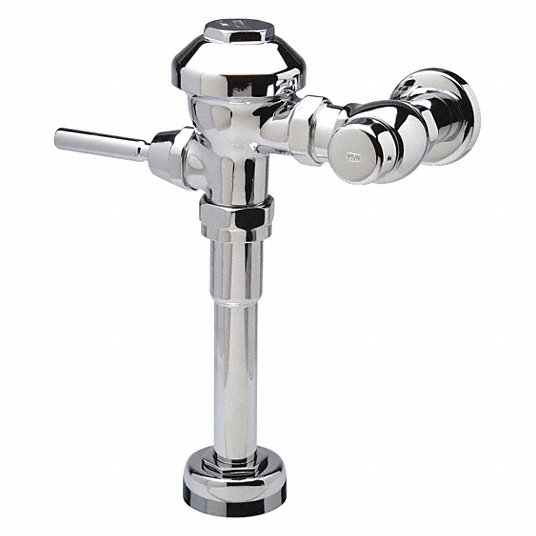

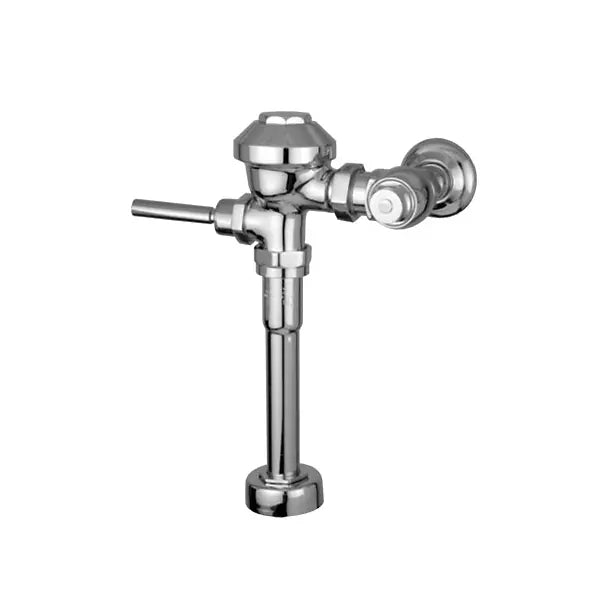

Zurn Z6001AV Exposed AquaVantage Urinal Flush Valve 1.5 gpf

Product Description

The ZURN Z6001AV Exposed AquaVantage Urinal Flush Valve is an exposed flush valve with a top spud connection designed for 1-1/4" urinals. This manual, single flush valve is sized to fit urinals and features a diaphragm design. It includes an adjustable tailpiece, flange for top spud connection, high back pressure vacuum breaker, one piece hex coupling nut, and spud coupling.

• Clog-resistant triple filter diaphragm
• Chemical resistant gaskets and seals for extended service life with lower maintenance costs
• Manual ADA compliant handle with no-leak seal technology

Product Highlights

The ZURN Z6001AV is ideal for commercial use and meets ADA Compliant and ANSI/ASME A112.19.2-2003 standards. It operates between 10 psi and 100 psi.

Product Information

Standard Information

• Brand: ZURN
• Manufacturer Part Number: Z6001AV
• Country of Origin: USA

Technical Specifications

• Brand and Series: ZURN AquaVantage®
• Product Type: Urinal Flush Valve
• Flush Valve Location: Exposed
• Spud Location: Top
• Gallons per Flush: 1.5 gpf
• Rough-In: 11-1/2 in
• Spud Connection Size: 1-1/4 in
• Inlet Size: 1 in
• Flush Mode: Single Flush
• Flush Valve Design: Diaphragm
• Finish: Polished Chrome
• Min. Operating Pressure: 10 psi
• Max. Operating Pressure: 100 psi
• Includes: Adjustable Tailpiece; Flange for Top Spud Connection; High Back Pressure Vacuum Breaker; One Piece Hex Coupling Nut; Spud Coupling
• Compatible Brand: Zurn
• Compatible Series: AquaVantage®
• Compatible Product Type: Urinals
• Compatible Manufacturer Part Number: Z6001
• Standards: ADA Compliant; ANSI/ASME A112.19.2-2003; CAN/CSA B45
• Manufacturer Part Number: Z6001AV
• UNSPSC: 40141609
• Control Type: Manual
• Approved for Commercial Use: Yes
• CA Drought Compliant: No
• Lead Leaching Certified NSF/ANSI 61: N/A (Regulation does not apply)
• TX Drought Compliant: No
