ZURN Z6000PL-WS1-DF Aquaflush Plus Z6000 Exposed Top 1.6 gpf Diaphragm Z6000PL

Product Description

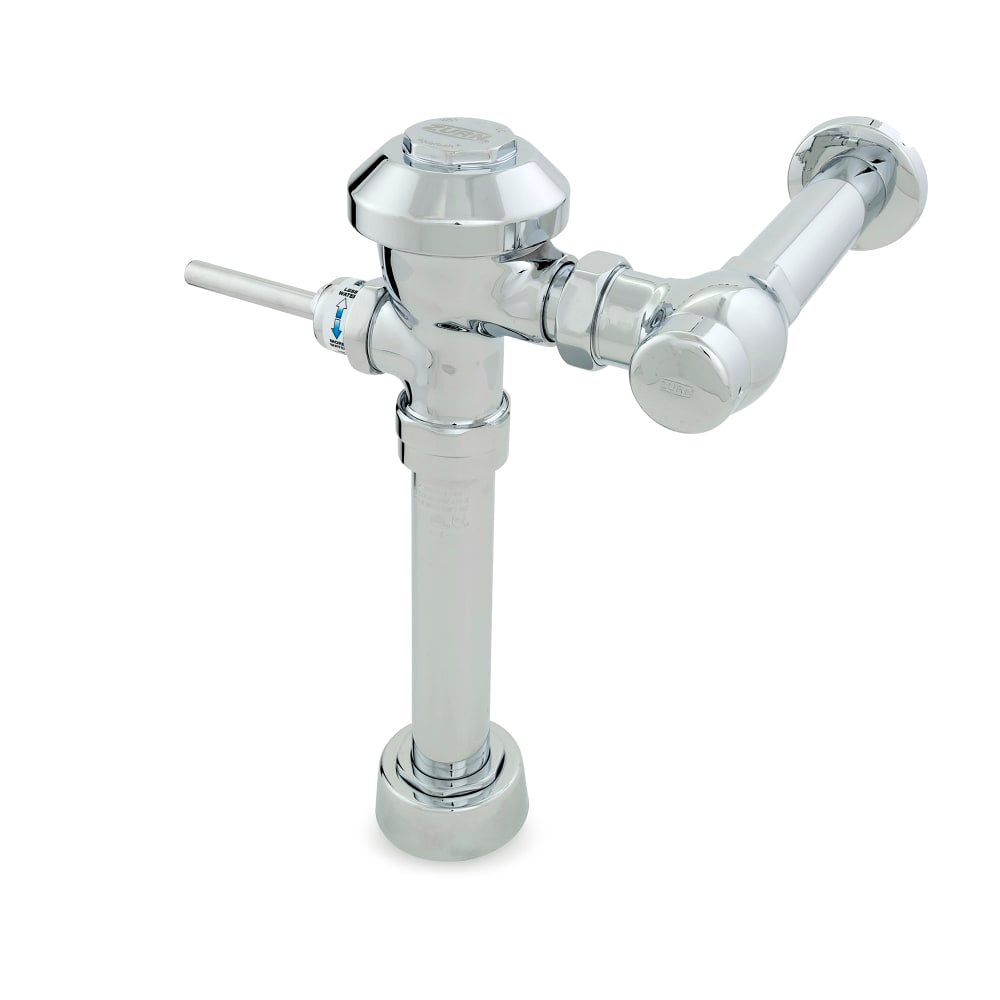

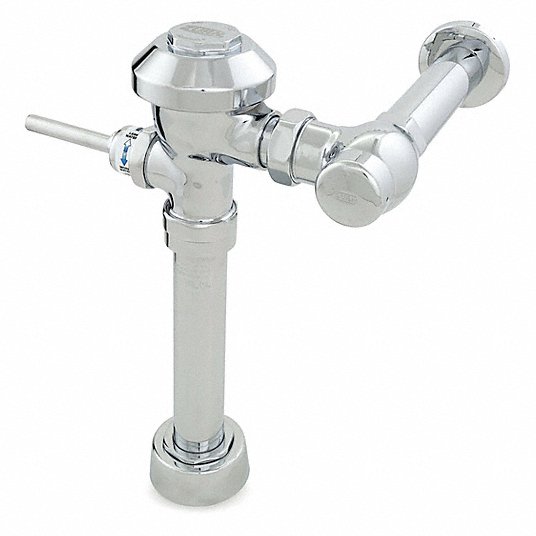

The ZURN Z6000PL-WS1-DF Aquaflush Plus Z6000 is a manual toilet flush valve suitable for tankless toilets. Designed with a spud coupling for attachment, it operates effectively with a high-pressure water supply. The chrome plated valve features a quiet diaphragm design and meets ADA standards with a non-hold open feature to prevent leaks.

• Features a dual seal diaphragm that resists chloramine and includes a clog-resistant bypass.
• Equipped with a high back pressure vacuum breaker.
• Supports a dual flush function with options for 1.6 or 1.1 gallons per flush.

Product Highlights

This manual flush valve is reliable for tankless toilets, ensuring water conservation through its dual flush capability.

Product Information

Standard Information

• Brand: ZURN
• Series: Aquaflush Plus Z6000

Technical Specifications

• Product Type: Toilet Flush Valve
• Flush Valve Location: Exposed
• Spud Location: Top
• Gallons per Flush: 1.6 gpf
• Spud Connection Size: 1-1/2 inches
• Inlet Size: 1 inch
• Flush Mode: Dual Flush
• Flush Valve Design: Diaphragm
• Finish: Chrome-Plated
• Min. Operating Pressure: 10 psi
• Max. Operating Pressure: 100 psi
• Includes: Cast Wall Flange, Set Screw, Sweat Solder Kit, Vandal-Resistant Stop Cap
• Manufacturers Warranty Length: 3 years
• Standards: ADA Compliant
• Manufacturer Part Number: Z6000PL-WS1-DF
• Toilet/Urinal: Toilet
• Spud Size: 1-1/2 inches
• Warranty: 3-year Limited Against Defects in Material & Workmanship
