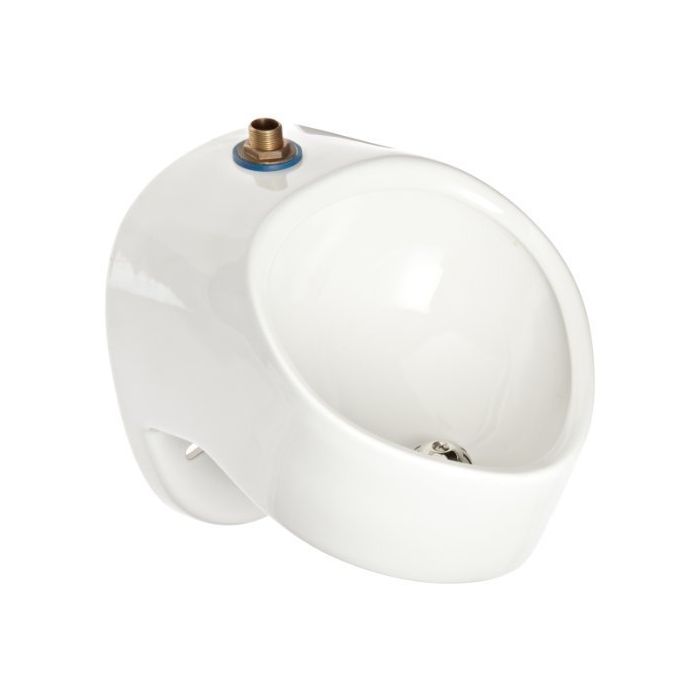

Zurn Z5708-U Nano Pint Urinal 0.125 gpf

Product Description

The ZURN Z5708-U Nano Pint urinal is designed to retrofit old 4-bolt pattern urinals with a ¾-inch top spud. This ultra low-consumption urinal is a high-efficiency upgrade with a high-gloss vitreous china finish that is stain-resistant, sanitary, and durable. The 14-inch extended rim provides handicap compliance when installed at the proper ADA height.

• High-efficiency washout action increases flushing power
• Pressure-compensating internal flow regulator improves flush performance
• Durable vitreous china resists stains and scratches

Product Highlights

This Nano Pint urinal features a 0.125 gpf ultra low-flow urinal with high efficiency washout flushing action and a 2" IPS outlet flange and rubber gasket with integral trap.

Product Information

Standard Information

• Brand: ZURN
• Manufacturer Part Number: Z5708-U

Technical Specifications

• Type: Urinal & Flush Valve Combinations
• Width: 14
• Height: 14.5
• Length: 12.625
• Material: Vitreous China
• WaterSense: Yes
• ADA_Compliant: Yes
• ASME_Standard: A112.19.2
• CSA_Standards: B45.1
• Connection_Type: NPSM
• Gallons_per_Flush: 0.125
• Commercial_or_Residential: Primarily Commercial
• Manufacturer: Zurn
