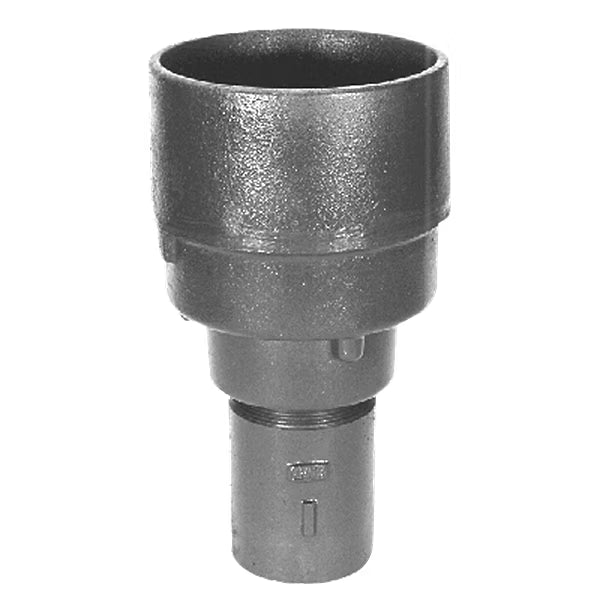

Zurn Z325-3NH Indirect Waste Funnel with Integral Backwater Valve

Product Description

The ZURN Z325-3NH is a durable indirect waste funnel designed for long-lasting performance and effective backflow prevention. Its heavy-duty, dura-coated cast-iron body provides superior corrosion resistance, while the integral backwater valve helps protect against unwanted wastewater backup. It incorporates a plastic ball float and a bronze backwater valve bushing, paired with a replaceable neoprene seat to ensure effective flow control and prevent backflow.

• Dura-coated cast-iron body for long-term strength and corrosion resistance
• Integrated plastic ball float to automatically prevent backflow
• Bronze backwater valve bushing for reliable operation

Product Highlights

Dura-coated cast iron body, plastic ball float, bronze backwater valve bushing and a replaceable neoprene seat.

Product Information

Standard Information

• Brand: ZURN
• Manufacturer Part Number: Z325-3NH

Technical Specifications

• Finish: Dura Coated
• Series: Z325
• Suitable For Use With: 3 in Pipe
• Material: Cast Iron
• Specifications: No-Hub
• Pipe Size: -3 3 Inch
• Outlet: NH No hub outlet
• Fitting Size (in): 3 in
• Water Connection Size (in): 3 in
• Drain Parts and Accessories Type: Drain Backwater Valves
• Plumbing Connection Type: Quick Connect
• Number Of: 1
• Quantity (Count): 1
